REBOTEC

Equipment:

- electric lifting arm
- 24-volt motor / battery unit
- wired hand control
- emergency stop function
- emergency lowering
- lowering to floor level possible
- low base frame
= very good access underneath
- chassis can be widened using pedals
- swivel castors with individual brakes
- assembly time as delivered:
5 to 6 minutes
- tested for up to 150 kg user weight
HMV No. 22.40.01.0021
Item No. 320.00.10

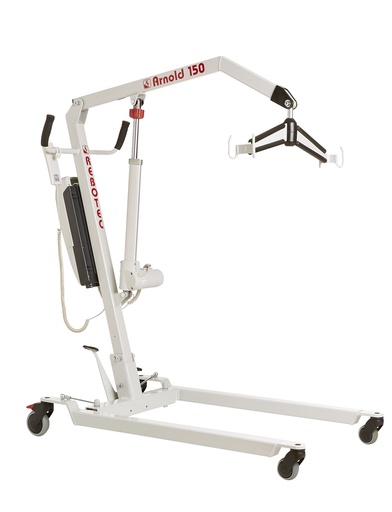

Type: Arnold 150
Load capacity: up to 150 kg
Lifting height (min): 55 cm
Lifting height (max): 174 cm
Clearance height: 13 cm
Weight: 43 kg
Item No.: 320.00.10

Please note: Accessories shown such as straps, spreader bars and support handles are not included and must be ordered separately.

Accessories:

Four-point spreader bar, wide
for Arnold 150
Dimensions (W x D x H): 56 cm x 33 cm x 14.5 cm
Item No. 420.10.42

- is placed under the patient’s arms and attached to the lifting hanger

- comfortably padded material

- water-repellent

- washable up to 65°C

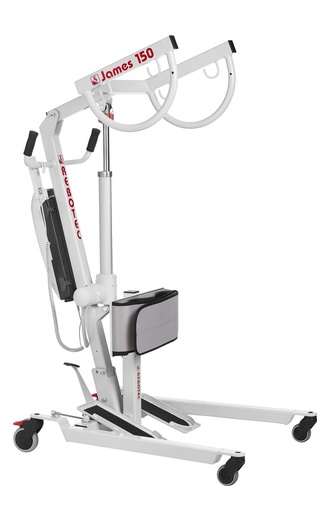

Equipment James 150:

- electric lifting arm
- 24-volt motor / battery unit
- wired hand control
- emergency stop function
- emergency lowering
- low base frame = very good clearance for sliding under
- chassis can be spread via pedals
- swivel castors with individual brakes
- tested up to a body weight of 150 kg
HMV No. 22.40.01.1019
Item No. 320.02.10

Type: James 150
Load capacity: up to 150 kg
Lifting height (min): 84 cm
Lifting height (max): 150 cm
Clearance height: 13 cm
Weight: 53 kg
Item No.: 320.02.10

Please note: Accessories shown such as slings, spreader bars and support handles are not included in the scope of delivery and must be ordered separately.

Accessories:
- calf strap with hook-and-loop fastener
Item No. 321.90.02
- side support handles
Item No. 320.60

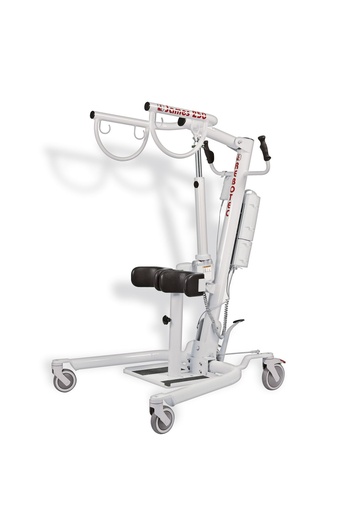

Equipment James 250:

- electric lifting arm
- 24-volt motor / dry battery
- wired hand control
- emergency stop function
- overload cut-out
- mechanical emergency lowering
- base frame spreadable via pedals
- castors individually lockable
- tested up to 250 kg body weight
Item no. 330.02

Type: James 250
Load capacity: up to 250 kg
Lifting height (min): 82 cm
Lifting height (max): 155 cm
Undercarriage clearance: 18 cm
Weight: 57 kg
Item no.: 330.02

Please note: Accessories shown such as slings, spreader bars and support handles are not included in the scope of delivery and must be ordered separately.

Accessories:
- calf strap with hook-and-loop fastener
Item no. 321.90.02
- side support handles
Item no. 320.60

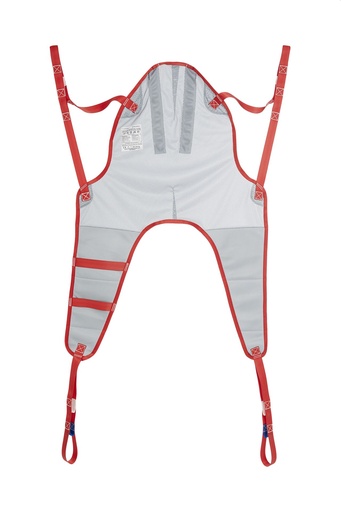

The sling has a mesh structure and is attached to the spreader bar with 4-point suspension via shoulder (S) and leg loops (B), using colour-coded attachment points.

- The leg supports are padded and ensure a comfortable sitting position.

- Stiffeners in the head/back area.

- The sling absorbs little water and therefore dries quickly.

- The hand loop on the shoulder side helps the caregiver when “manoeuvring” the patient.
