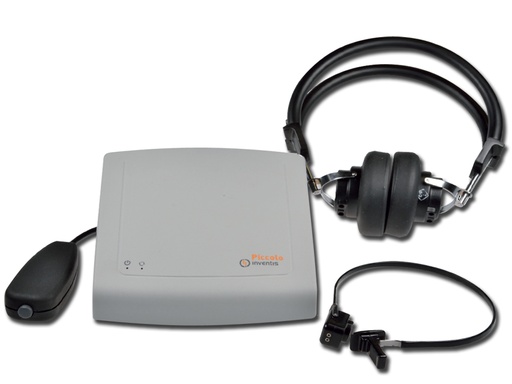

Piccolo Plus is a basic diagnostic audiometer offering air- and bone-conduction audiometry functions.
Piccolo can be controlled from a Windows computer.
Its lightweight, compact design, powerful, user-friendly software and Noah connectivity make Piccolo the ideal choice for professionals on the move.
- Computer control via the dedicated Noah or Daisy module. USB connection. Compatible with Windows 7, 8, 10.
- small and lightweight
- Power supply via the USB connection when controlled from the computer.
Made in Italy.
Software language: GB, FR, IT, ES, DE, PL, PT, RU.
CD manual and quick guide: GB, FR, IT, ES, DE, PL, PT, NL.
Standard accessories
• TDH-39 supra-aural headphones
• B71 bone vibrator
• Patient response switch
• Clip-on microphone for communication between operator and patient
• Inventis Daisy Patient Record Manager with Daisy Maestro module
• Noah Maestro module
• USB connection cable
• Medical power supply
• User manual
Product data:
• Device type: PC-controlled
• Class EN 60645-1, ANSI S3.6: Diagnostic class 3
• Output: AC, BC
• Masking: NBN
• Warble tone: Yes
• Pulsed tone: 0.5 Hz, 1 Hz, 2 Hz
• Frequency range: 125 - 8000 Hz
• Maximum output intensities:
- Air conduction: -10 to 120 dB HL
- BC: -10 to 80 dB HL
• Attenuation step: 5 dB
• Automatic audiometry: HW auto-threshold
• Speech audiometry: No
• Speech inputs: -
• Crosstalk: External microphone
• Connection to PC: USB [driverless]
• Control software: Daisy or Noah with Maestro module
• Connection to iPad: No
• Control app: Maestro (App Store)
• Size: 16 x 16 x 3 cm
• Weight: 300 g
• Operating voltage: 100-240 V, 50/60 Hz
