HEARTSINE

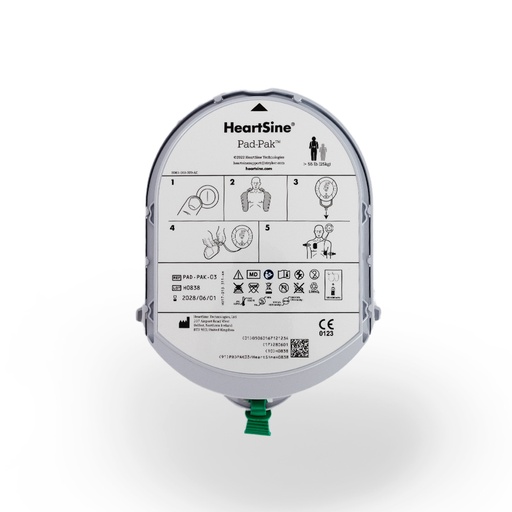

Heartsine Samaritan PadPak battery and electrode pads

The Heartsine AED uses a PadPak module to replace the battery and electrode pads. This 2-in-1 module makes it easier to use the AED after the AED has been used. This module is suitable for use on adult patients who weigh more than 25 kg or are older than 8 years. The battery and electrode pads are always pre-installed in the AED. This saves time when the AED is used. The placement of the electrode pads is shown on the packaging and on the AED.

Shelf life of the electrode pads
The shelf life of the Heartsign Samaritan electrode pads is approx. 4 years. You will find the expiry date on the PadPak module. Electrode pads contain a conductive gel that can dry out. If the electrode pads have dried out during use of the AED, this can have negative effects on the patient. It is therefore important that you connect an unopened PadPak that has not yet expired.

Features

Pre-connected
Self-adhesive
Approx. 4 years shelf life
Temperature between 0°C and 50°C
Non-polarised
Latex-free

Suitable for the following devices:

Heartsine Samaritan 300P
Heartsine Samaritan 350P
Heartsine Samaritan 360P
Heartsine Samaritan 500P

Included in delivery:

• 1 long-life battery and electrode cassette for adults and children
• Dual carry bag, can also be used as a headrest
• Emergency kit incl. CPR poster, emergency instructions
• Instructions for use, quick start guide

Product description:

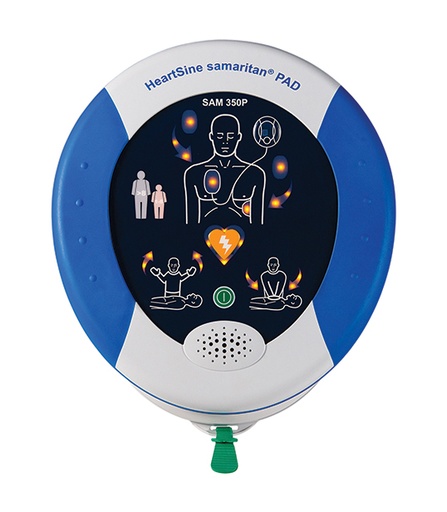

The HeartSine samaritan 350P AED offers unique features:
Compact and powerful

Portable and lightweight. At only 1.1 kg, it weighs less and is up to 56% smaller than other portable defibrillators.

Maximum protection against dust/moisture. The samaritan PAD has an IP56 rating, giving the 350P defibrillator the highest level of water and dust protection in the industry.

Durable. The samaritan PAD 350P withstands shocks and vibrations and has an IP56 rating, the highest industry rating for protection against dust and moisture.

Advanced technology. The samaritan PAD 350P uses dedicated electrode technology, advanced and stable software, and patented biphasic SCOPE* technology (a biphasic waveform that automatically adapts to patient impedance) to assess the rhythm and, where necessary, maximise effective shock delivery.

*Self-Compensating Output Pulse Envelope technology automatically compensates energy, rise time and envelope.
Easy-to-follow visual and audible instructions

User-friendly. The samaritan PAD 350P features easy-to-understand visual and audible prompts that guide the rescuer through the application process, including CPR coaching. Three large, clearly recognisable symbols facilitate the rescue process: apply electrodes, do not touch the patient, and the patient may be touched.

Operation with only 2 buttons. Only two buttons—ON/OFF and SHOCK—are required to operate the device.

Always ready for use. A system status indicator flashes when the entire system is operational and ready for use. The device performs an automatic self-test once a week.

Practical solutions for everyday use

Two components, one expiry date. The combined Pad-Pak cassette contains battery and electrodes, so only one expiry date needs to be monitored.

Lowest total cost of ownership. With a shelf life of four years from the date of manufacture, the Pad-Pak offers significant savings compared with other defibrillators that require separate batteries and electrodes.

Protection for adults and children. The technology integrated into HeartSine PADs and the unique Pediatric-Pak (infant/toddler cassette), intended for children aged 1–8 years (< 25 kg), ensure that the optimal energy is delivered.

Upgradeable on site. Can be upgraded at any time to the latest AHA/ERC guidelines.

Semi-automatic resuscitation defibrillator / AED with real-time monitoring and instructions for chest compressions
Simplest operation thanks to 1-button function
Compact design, lightweight at 1.1 kg
Extremely robust with IP56
Escalating energy protocol 150J, 150J, 200J
Low-maintenance with 4-year interval and exempt from STK
CPR advisory/feedback to support resuscitation quality, visual and acoustic

Scope of delivery:

- 4-year battery and electrode cassette (Pad-Pak™) for adults and children > 8 years or > 25 kg (only one expiry date!)
- Multi-function double carry bag, yellow/blue
- Instructions for use, quick guide
- Certificates and approvals CE 0120, FDA, UL, ISO, exempt from STK, IP56, aviation approval
- Updatable with new AHA / ERC / Illcor guidelines

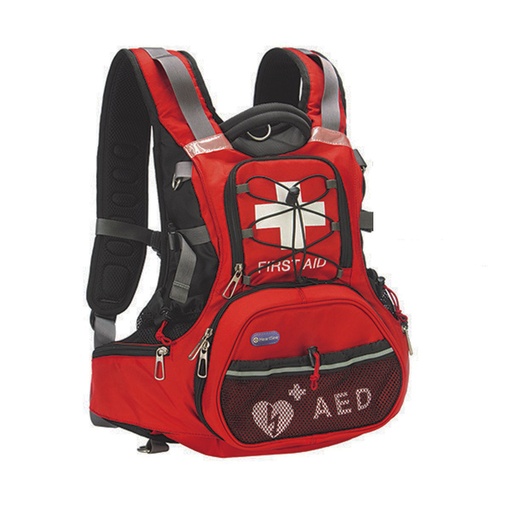

AED backpack for storing the samaritan® PAD 350P, samaritan® PAD 360P, samaritan® PAD 500P

The backpack is supplied without contents.

For SAM 350 - SAM 360 - SAM 500 training devices incl. 1 training electrode

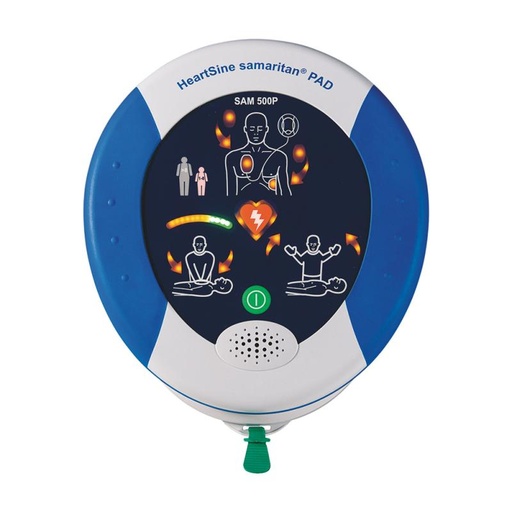

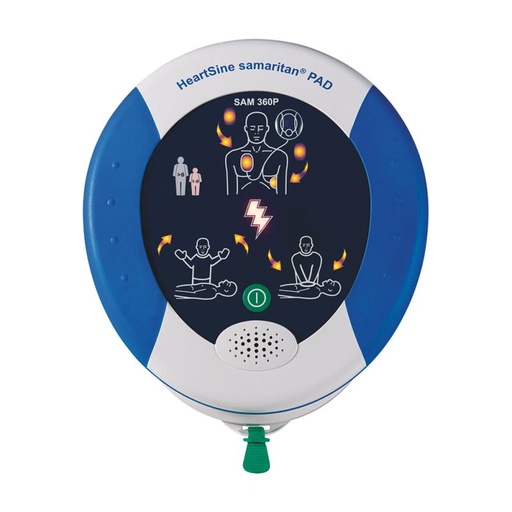

Fully automatic first-aid defibrillator / AED
Easiest operation thanks to 1-button function
Compact design, lightweight at 1.1 kg
Extremely robust with IP56
Escalating energy protocol 150 J, 150 J, 200 J
Low-maintenance with 4-year interval and exempt from STK

- 4-year battery and electrode cassette (Pad-Pak™) for adults and children > 8 years or > 25 kg (only one expiry date!)
- Multifunctional double carry bag, yellow/blue
- Instructions for use, quick guide
- Certificates and approvals: CE 0120, FDA, UL, ISO, exempt from STK, IP56, aviation approval
- Updateable with new AHA / ERC / Illcor guidelines

The Heartsine Samaritan PAD-Pak-04 is suitable for children up to a weight of 25 kg or up to 8 years of age. The correct electrode placement is shown both on the packaging and on the defibrillator.

Self-adhesive
Shelf life approx. 4 years
Storage temperature between 0°C and 50°C
Latex-free

SUITABLE FOR THE FOLLOWING DEFIBRILLATORS:

Heartsine Samaritan PAD 300P
Heartsine Samaritan PAD 350P
Heartsine Samaritan PAD 360P
Heartsine Samaritan PAD 500P

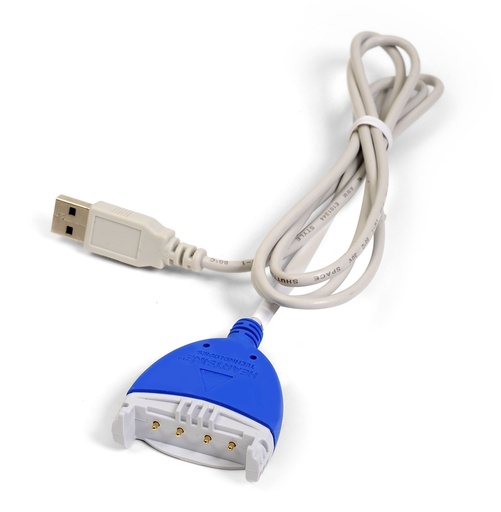

USB cable for transferring defibrillator data to a PC.

Semi-automatic training system. AED trainer with semi-automatic simulation.
6 training scenarios.

Complete set includes:

- Remote control incl. batteries
- 2 pairs of training electrodes for multiple use (approx. 30 times)
- Charger
- Carrying case
- Instructions for use

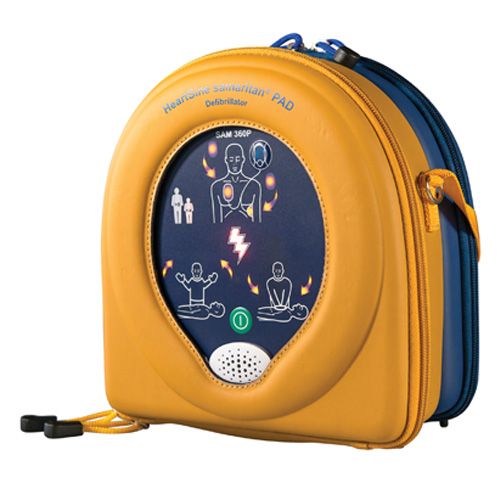

Multi-function double carry bag in yellow and blue

Product details:

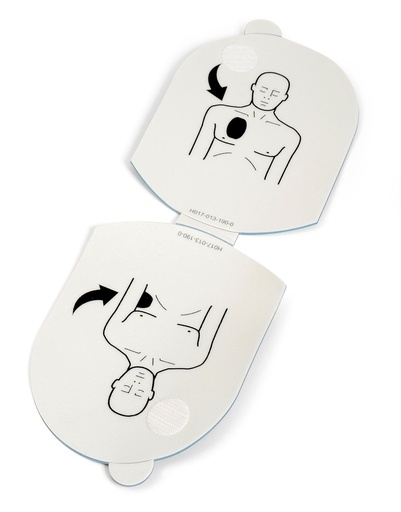

Replacement electrodes for HeartSine devices

This multipack contains 10 sets of training electrodes suitable for all Heartsine training sessions.

The HeartSine™ Samaritan® PAD Trainer battery/electrode pack is intended for use with the HeartSine Samaritan PAD training device. It also works with the HeartSine Samaritan PAD training device. It is equipped with a new feature that includes a cable-winding system for easy replacement of electrodes and cables after the training session.

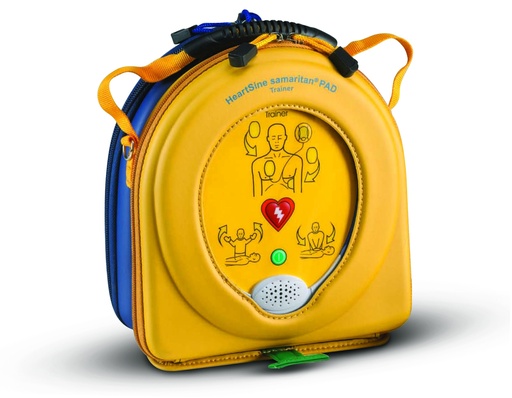

Fully automatic training system AED Trainer with fully automatic simulation
6 training scenarios

1 remote control (IrdA) with 2 AAA batteries
Mains charger
1 multifunctional double carry bag, yellow/blue, for training system

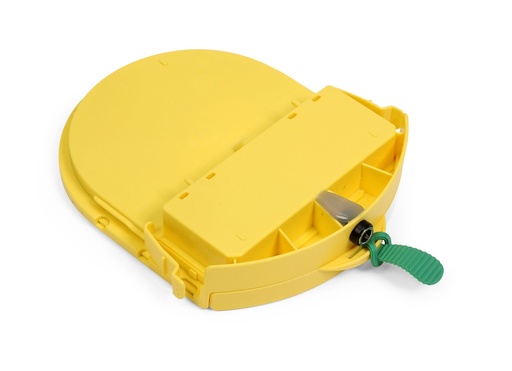

1 Pad-PAK replica
5 pairs of reusable training electrodes
1 instruction manual
