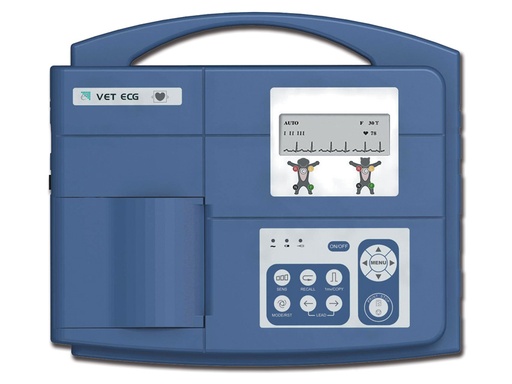

GIMA

- Complete digital design
- LCD display waveforms, parameter configuration
- High-resolution thermal printer
- Built-in rechargeable Li-ion battery for 3 hours (AC/DC power supply)
- Fully digital filter to prevent baseline drift; interference suppression for AC and EMG
- Automatic baseline adjustment, optimised print position
- Selectable automatic/manual operation

Technical data:

• Leads: standard 7-lead
• Acquisition mode: single
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance: > 10 MΩ
• Filters:
- EMG filter 35 Hz (-3 dB)
- AC/DFT filter 50/60 Hz (-20 dB)
• Recording mode: Auto/Manual
• Safety standard: IEC I/CF
• Power supply:
- AC mains: 100-115-220-240 V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage = 14.4 V
- More than 3 hours continuous operation on battery power
• Thermal paper: 5 mm x 30 m
• Paper speed: 25/50 mm/s (± 3%)
• Dimensions: 300 x 260 x 75 mm
• Weight: 2.3 kg (with battery)
• Display: 192 x 64 pixel LCD
• External input/output:
- Input: = 100 kΩ; sensitivity: 10 mm/V ± 5%
- Output: = 100 kΩ; sensitivity: 1 mm/V ± 5%
• Communication interface: RS232

Accessories:

• 5-core veterinary ECG cable (Ø 4 mm, banana plug, IEC)
• Veterinary clip electrodes (set of 5, suitable for Ø 3–4 mm ECG cable)
• 1 paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: EN, IT – FR, ES, DE on request

HOSPI PLUS suction unit - 2 x 3 l - 230 V - with foot switch and flow changeover

New innovative range of high-vacuum suction devices with high flow rate, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacteria filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon canisters with ml graduations and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories, without the need for tools.
Equipped with five connections for rings of different diameters to accommodate canisters of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of which are braked, ensure perfect mobility.

Product data:

• Operating voltage: 220–230 V / 50–60 Hz or 110 V / 60 Hz
• Maximum suction: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• Instructions for use in GB, FR, IT, ES, DE.

HOSPI PLUS suction unit - 2 x 5 l - 230 V - with foot switch and flow changeover

New innovative series of high-vacuum suction devices with high flow, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacterial filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon containers with ml graduation and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories without the need for tools.
Equipped with five connections for rings of different diameters to hold jars of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of them with brakes, enable perfect mobility.

Product data:

• Operating voltage: 220-230 V / 50-60 Hz or 110 V / 60 Hz
• Maximum suction performance: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• User manual in GB, FR, IT, ES, DE.

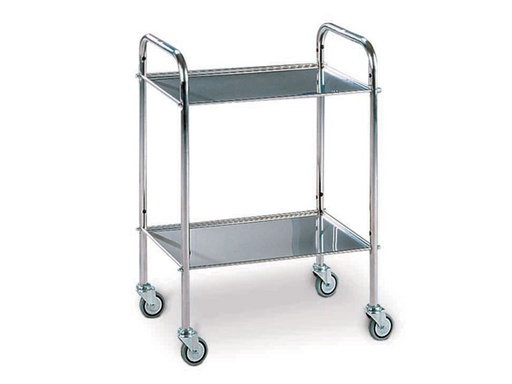

Stainless steel trolley on castors, Ø 80 mm fitted.
Maximum trolley load: 60 kg.
Supplied as a flat-pack kit.
Made in Italy.

Product data:

Dimensions (H x W x D): 80 x 60 x 40 cm
Colour: silver
Material: stainless steel

Instant viewing
A clear, sharp image can be captured and displayed immediately on a built-in screen. Simply press a single button and wait 3 seconds.

Real-time interaction
The medical image can be captured and displayed simultaneously on the TV monitor or downloaded to a Mac/PC system.

Electronic medical record
A medical image is automatically generated to support most stand-alone health information systems.

3 cameras:
- 3 camera probes 75/150/300 mm
- Image dongle
- Cable set
- 2 AA alkaline batteries

Technical specifications:

• 2.4-inch LCD colour display
• Video output
• Size/weight: 8 x 20 cm (2.5 x 8 inches) - 218 g
• Battery life: 4 hours

Micro USB cable for PC connection

MIR code: 532367

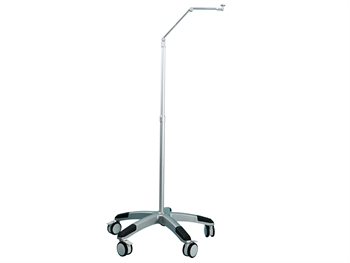

Mobile stand for item 27010-01

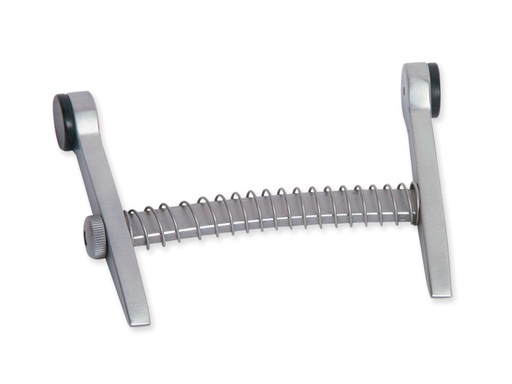

Stainless steel instruments for veterinary applications: mouth gag

Disposable paper mouthpieces, suitable for spirometers and peak flow meters from most brands. Individually packed in a transparent bag.

• Material: paper
• Dimensions (internal diameter x external diameter x height): 2.8 x 3 x 6.5 cm (adults)
• For use with codes: 33431, 33433, 33471-2, 33510, 33512-14, 33518-22, 33528-32, 33534
• Compatible with: Micromedical, Vitalograph, Mir, Ferraris (Koko Legend), Cardiette (Pneumos 300)

PC 3000 Multiparameter Patient Monitor:



- 7'' high-resolution TFT colour display, 5-channel waveform display

- Standard parameters: ECG, RESP, SpO2, NIBP, 2-TEMP, PR; arrhythmia and ST segment analysis

- Up to 12,000 sets of parameter data & 60-hour ECG waveform storage and recall

- 1,000-hour graphic and tabular trends for all parameters

- Display of simultaneous 7-channel ECG waveforms

- Protection against interference from defibrillators, HF surgical units

- Measurement modes for adults/children

- Visual and audible alarms; network capability

- Carry handle with bed hook

PRIMALED COLD LIGHT LAMP WITH 9 LED LENSES


Attractive design and advanced
technology.



Design: The round and ultra-slim shape of the lamp makes the product ergonomic and suitable for any type of installation, from doctors’ surgeries to intensive care units.



Ergo-Spring: The movement of the articulated tubular arm is servo-assisted by a torsion spring, ensuring smooth movement and stability.



105,000 lux: Unique performance with 105,000 lux at 50 cm.



Light intensity adjustment: six different setting levels via the buttons on the front panel.

4,000–4,500 K colour temperature selection: Comparing the two colour temperatures (K) increases the visibility of details.

Shadow suppression: The radial arrangement of the lenses and the large lamp diameter (195 mm) enable shadow suppression and three-dimensional illumination.

Adjustable inner light: integrates ambient light with traditional focused light.

Sterilisable removable handle: enables optimum asepsis.

Cold light: The reduced emission of IR rays from the LEDs, together with low power consumption, ensures minimal heat output.

60,000-hour LED service life: The upper aluminium dome enables heat exchange, reducing the operating temperature and significantly extending the service life of the individual LEDs.

Interchangeable plugs: The transformer is integrated into the plug for easier and smoother arm movement. Supplied with interchangeable plugs (UK, US, EU).

Fully certified: Complies with the general medical standards IEC 60601-1 and 60601-1-2 as well as the particular standards IEC 60601-2-41, 93/42 EEC and 2007/47 EC, and is CE-marked as a Class I medical device.

Mechanical testing and user safety: Structure made of die-cast aluminium and steel tube. The articulated arm has undergone mechanical tests with 40,000 continuous movements to ensure maximum user safety during use.

Light continuity: The modular design of the LED circuit ensures light continuity even in the event of an LED failure.

The lamp lens has been designed to provide focused and deep illumination.
The light field diameter is 16 cm at 0.5 m.

The following functions are controlled via the membrane keypad buttons:
- on/off
- selection of colour temperatures 4,000 K and 4,500 K
- 6-level light intensity adjustment
- inner light

Made in Italy.

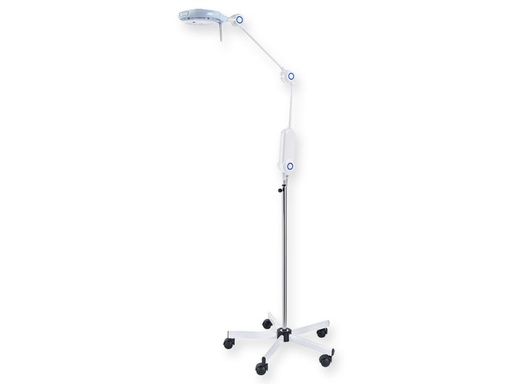

PRIMALED COLD LIGHT LAMP with 9 LED lenses
Attractive design and advanced technology.

• Design: The round and ultra-slim shape of the luminaire makes the product ergonomic and suitable for any type of installation, from doctors’ surgeries to intensive care units.

• Ergo spring: The movement of the articulated tubular arm is assisted by a torsion spring, ensuring smooth operation and stability.

• 80,000 lux: Unique performance with 80,000 lux at 50 cm.

• Light intensity adjustment: Six different adjustment levels via the buttons on the front panel.
4500–5000 K colour temperature selection: Comparing the two colour temperatures (K) increases the visibility of details.

• Shadow reduction: The radial arrangement of the lenses and the large-diameter lamp head (195 mm) enable shadow reduction and three-dimensional illumination.

• Adjustable inner light: Integrates ambient light with traditional focused light.

• Sterilisable removable handle: Enables optimum asepsis.

• Cold light: Reduced emission of IR radiation from the LEDs, as well as low power consumption, ensures minimal heat output.

• Disinfection: The smooth and rounded shape of the dome and structure facilitates cleaning and disinfection.

• 50,000-hour LED lifetime: The upper aluminium dome enables heat exchange, lowering the operating temperature and significantly extending the service life of the individual LEDs.

• Fully certified: Complies with the general medical standards IEC 60601-1 and 60601-1-2 as well as the specific standards IEC 60601-2-41, 93/42 EEC and 2007/43 EC, and is CE marked as a Class I medical device.

• Mechanical testing and user safety: Structure made of die-cast aluminium and steel tubing. The articulated arm has undergone mechanical testing for 40,000 continuous movements to ensure maximum user safety during use.

• Light continuity: The modular design of the LED power circuit ensures light output continuity even in the event of an LED failure.

The following functions are controlled via the membrane keypad buttons:
- on/off
- selection of colour temperatures 5000 K and 4500 K
- 6-level light intensity adjustment
- inner light

Stainless steel instruments for veterinary applications: rodent mouth gag

SUPER VEGA BATTERY - plastic housing - 36 l/min.

With built-in rechargeable batteries. It can be powered by a 12 V supply for rechargeable batteries and, thanks to an electronic system, also by 230 V when recharging the batteries.

Operating time: approx. 60 min
Charging time: 120–150 minutes.
Maximum suction: -0.80 bar
Flow rate: 36 l/min
The unbreakable standard 1,000 ml bottle (2,000 ml optional) is autoclavable at 120°C and features a safety float shut-off valve to prevent overflow.

Standard accessories
• 1-litre bottle – autoclavable at 120°C
• Silicone tubing set
• Suction catheter
• Bacterial protection filter
• Cable for charging the batteries from the mains power supply
• Cable for charging the batteries from the car
• Multilingual user manual (GB, IT, FR, DE, ES)

Product data:

• Operating voltage: 100–240 V – 50/60 Hz
• Dimensions: 350 x 210 x 180 mm
• Weight: 4.9 kg
• Maximum suction: -0.80 bar
• Flow rate: 36 l/min
• Standards: IEC 601-1 – Class II Type B
• Made in Italy

SPIROLAB MIR PAPER – Roll 112 mm x 25 m

Also suitable for SIBEL DATOSPIR 120 B, C, D, DATOSPIR Touch and GIMASPIR 120 models B, C, D.
