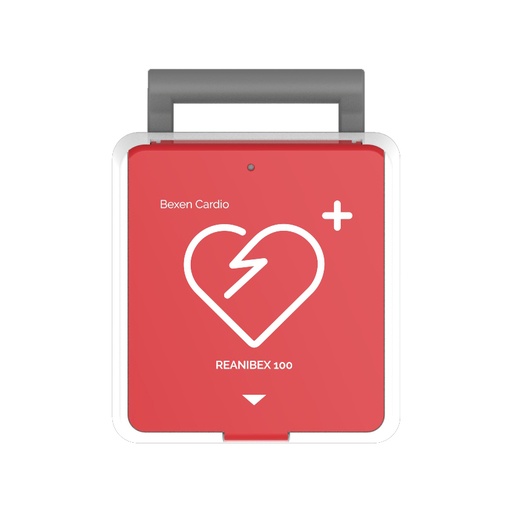

The BEXEN CARDIO Reanibex 100 AED is an automated external defibrillator designed for rapid use in the event of cardiac arrest. It is user-friendly, with intuitive voice prompts and visual aids that guide even laypersons through the rescue process. Thanks to its robust design, it is ideal for public areas, schools and businesses. Lightweight and portable, it provides reliable support in emergency situations.
Clear instructions
Voice prompts guide the user through the entire procedure. Volume adjusts to ambient noise.
Connectivity
Sigfox and Wi‑Fi transmission for status alerts regarding the device and accessories, as well as for geolocation.
Semi- or fully automatic
In the semi-automatic version, the user must press the shock button to deliver the shock. In the fully automatic version, the shock is delivered automatically when required.
Faster shock delivery
Switches on automatically as soon as the device lid is opened, with pre-connected electrodes and pre-charged for faster shock delivery.
Self-test
Daily automatic self-test ensures continuous readiness of the device and accessories.
CPR support
Metronome and real-time rate feedback for effective chest compressions.
GENERAL
Dimensions:
Without handle: 217 mm (width) x 235 mm (depth) x 96 mm (height)
With handle: 217 mm (width) x 285 mm (depth) x 96 mm (height)
Weight: device with disposable electrodes and battery: less than 2 kg
AED DEFIBRILLATOR
Operating mode: semi- or fully automatic
Waveform: typically biphasic (BTE) depending on patient impedance
Energy output: 150–200 joules for adult patients and 50–90 joules for children
Charge time: 0 seconds – pre-charged
Electrode types: pre-connected disposable electrodes for adults and children
Shockable rhythms: ventricular fibrillation and ventricular tachycardia
CPR support: metronome with real-time feedback on chest compression rate
CPR guidelines: factory-set guideline 2015 (ERC/AHA) and its new version from 2017
DATA STORAGE
Internal data memory: 10 treatment events with at least 15 hours of ECG signal and events
USB port: for PC connection
Data review: Reanibex Data Net web application for downloading, replaying, saving and reviewing recorded treatment events
BATTERY

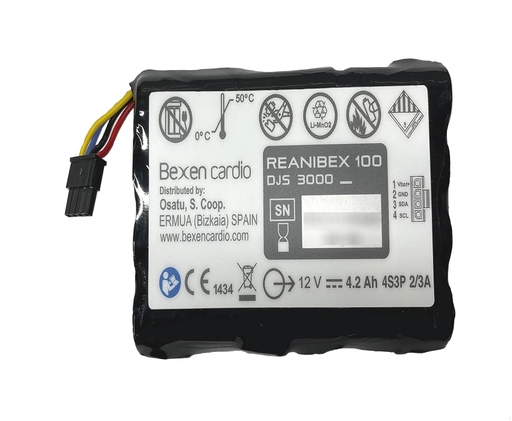

Type: disposable battery LiMnO2 4.2 Ah, 12 V
Capacity: more than 350 shocks at 200 J or more than 36 hours of monitoring at 25 °C
ENVIRONMENT
Operating temperature: from 0 °C to 50 °C
Storage temperature: from -25 °C to 70 °C
Humidity: 0 to 95%
Altitude: 0 to 5,000 m
Resistance to solids/liquids: IP55
EMC: EN 60601-1-11:2015 and EN 60601-1-2:2015
Vibration / shocks: EN 60601-1-11:2015
