ATMOS

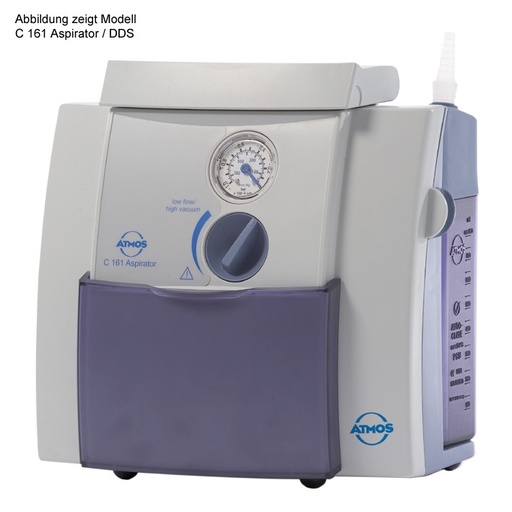

ATMOS C 161 electric suction unit aspirator /DDS
Portable secretion suction unit, suction capacity: 16 ± 2 L/min, vacuum: -80 kPa ± 2 kPa / -800 mbar ± 20 mbar / -600 mmHg ± 15 mmHg, infinitely variable vacuum regulation and precision gauge, graduated 1 L secretion canister, canister lid with triple overflow protection thanks to modern filter technology, integrated overflow protection and DDS (Direct Docking System), 1 DDS bacterial filter, condensate trap, silicone suction hose Ø 6 mm, L = 1.30 m, hose connector (fingertip), all hoses and secretion canister parts sterilizable up to 134°C, 2 m mains cable for 230 V~/50–60 Hz, dimensions (H x W x D): 250 x 255 x 180 mm. Use: on wards and in the care/rehabilitation sector.

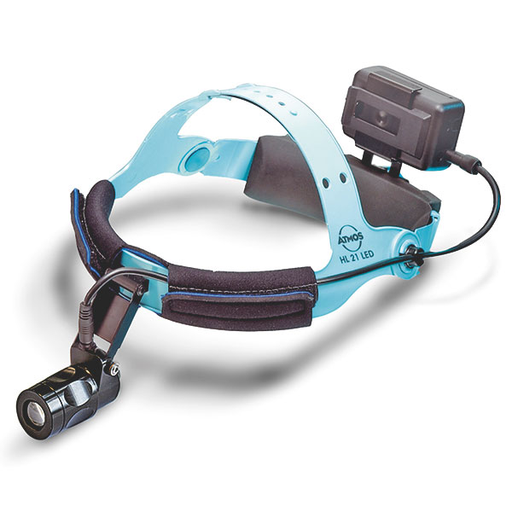

The headlamp with outstanding light intensity for medical examinations and operations.
For optimal, mobile illumination for medical examinations, e.g. in ENT applications.

Performance features:

Long-life light source with high-performance white-light LED, focusing optics, continuously adjustable, high-end rechargeable battery system with particularly lightweight and powerful lithium-ion battery, two operating modes: Eco / Power mode, ergonomic ultra-light headband, holder for battery on the rear of the headband, universal rapid-charging power supply unit with a range of primary adapters, connecting cable battery - LED.

Scope of delivery:

1 x ATMOS HL 21 LED headlamp, 1 x LED-battery connecting cable (40 cm), 1 x Li-ion battery, 1 x rapid-charging power supply unit LED

Brightness: 50 lumens / 60 kLux

Illuminated field Ø: 25 to 55 mm at a distance of 17 cm in front of the light, focusable

Service life: up to 50,000 hours

Power: 2 watts

Battery

Type: Li-ion

Capacity: 1950 mAh

Operating time: approx. 4 h (Eco mode) or approx. 2 h (Power mode)

Charging time: max. 120 min (when fully discharged)

Power supply unit

Voltage range: 100-230V~, 50/60 Hz

Plug-in adapters: USA, Europe, UK, Australia

General

Weight: headlamp: 200 g, battery 80 g

Classification: Class I (according to Annex IX of Directive 93/42/EEC)

Li-ion rechargeable battery for HL 21 LED

Capacity: 1950 mAh

Operating time: approx. 4 h (eco mode) or approx. 2 h (power mode)

Charging time: max. 120 min (when fully discharged)

Universal fast charger power supply unit for rechargeable batteries (100–240 V~)
