AMBU

Instruction in the Manikin Management module
for AmbuMan Advanced and AmbuMan Airway Wireless Torso.

Storage box
King Vison aBlade hard-shell case incl. padding.

The King Vision video laryngoscope, used in combination with the aBlade single-use blades, enables economical use of the video laryngoscope for all intubations. It serves as an aid for visualising the airway for routine or difficult intubation. The King Vision video laryngoscope was developed for indirect visualisation of the vocal cords, thereby reducing the required tissue manipulation and improving the ability to visualise anterior airways. The King Vision display is a lightweight, battery-powered, water-resistant and self-contained system. The robust, non-reflective full-colour display withstands repeated cleaning without difficulty. It can be used continuously for more than 90 minutes.

The set consists of: 1 King Vision display, 1 video adapter, 4 aBlade single-use blades with guide channel, 2 aBlade standard single-use blades, 3 AAA batteries and a case.

Technical specifications (reusable display):
- Video screen: OLED display
- Video connection: RCA
- Connection to monitor via cable
- Automatic shut-off
- Automatic white balance
- Video screen size: 6.1 cm / 2.4” diagonal
- Material: polycarbonate / ABS, anti-glare coating on the display window
- Batteries: 3 AAA (alkaline recommended)

Technical specifications (reusable video adapter):
- Video aspect ratio: 4:3
- Frame rate: 30 frames per second
- Video resolution: 320 x 240 (QVGA)
- Camera sensor: CMOS
- Camera resolution: 640 x 480 VGA
- Light source: white LED

Technical specifications (single-use blades):
- Anti-fog protection: coating on the distal lens
- AP blade height: 13 mm (standard), 18 mm (with guide channel)
- Blade length: 17 cm
- Blade width: 26 mm (standard), 29 mm (with guide channel), 16 mm at the distal tip
- Single-use material: polycarbonate / TPE
- ET size: 6.0 mm - 8.0 mm (blade with guide channel)

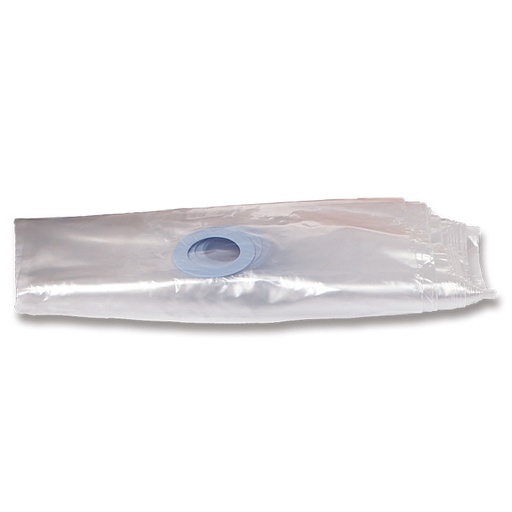

100 air bags for the AMBU Man models

Package includes:

- Carry bag / training mat
- 5 face masks for AMBU Man models
- 100 pcs. air bags for AMBU Man models
- Jacket

The Ambu Man I (Instrument) is completely free of electronic components. The training device features an integrated indicator instrument that provides feedback on CPR parameters for both the trainee and the instructor.

For all participant groups – whether medical or nursing staff in healthcare or for training laypersons in CPR.

Features

The Ambu Man I is equipped with the following functions:

Indicator instrument
The scale of the integrated indicator instrument shows the volume of air delivered (in l) and the chest compression depth (in mm). In the event of gastric inflation and an incorrect compression point, clearly visible warning symbols appear.

Ambu hygiene system
The patented, closed hygiene system prevents cross-infection, provides realistic airway resistance and allows exhalation through mouth and nose – the natural route.

Realistic ventilation
The airways open only with correct head tilt, allow clearly visible chest movement and make exhalation audible and perceptible for the trainee. In the event of incorrect ventilation, air enters the gastric bag via a valve, leading to clearly visible gastric inflation. Mouth-to-mouth ventilation, mouth-to-nose ventilation, ventilation using the Ambu LifeKey/Res-Cue mask, and ventilation using a resuscitator bag can be practised.

True-to-life anatomy
The realistic anatomy of an adult enables correct identification of the compression point. As the chest stiffness of the Ambu Man is adjustable, any anatomy from adolescent to senior can be simulated.

Palpable pulse
The carotid pulse is palpable during chest compressions and can additionally be simulated using a mechanical pulse bulb.

Expandable modular system*
The basic model of the Ambu Man W consists of a torso. You can purchase arms and legs as well as the Ambu I.V. arm separately. This allows you to upgrade the system step by step.

The Ambu Man I can easily be updated to any guideline.

Technical data

Dimensions: 80 x 35 cm (torso)
Weight: approx. 14 kg
Computer connection: no
Hygiene system: yes
Ventilation indicator: yes
Compression indicator: yes
Infinitely adjustable chest stiffness: yes

* The Ambu® Man Instrument is supplied without arms and legs!

AMBU Mark IV with single-membrane patient valve without mask
The AMBU Mark IV is suitable for manual ventilation of adults and children weighing 15 kg or more (approx. 3 years). In combination with Mask 0 with bore, the Ambu Mark IV is also approved for children from 15 kg body weight. The double-chamber principle (inner body with elastic outer shell) allows the user to feel the ventilation pressure, making ventilation safer. Thanks to this integrated pressure limitation, the user can easily and safely recognise whether the airways are clear. The integrated hand strap makes the bag easier to grip and ensures it sits optimally in the hand – even with smaller hands.
Technical data
- Max. tidal volume: 1300 ml
- Dimensions (L x D): 275 x 135 mm
- Patient valve: 22/15 mm (ISO)
- Weight: 415 g
- Expiratory connector: 30 mm (ISO)
- latex-free, autoclavable up to 134°C

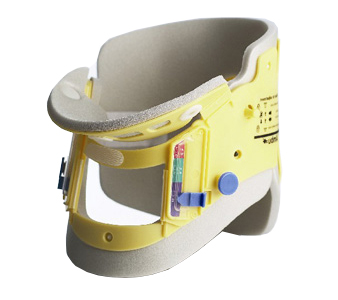

The 12-stage fine adjustment allows positioning even between standard sizes. The uniform movement of the neck and chin support when adjusting the cervical collar ensures consistent and stable immobilisation. Adjustable from the outside while fitted. Anatomically shaped chin piece prevents pressure points. Large trachea and drainage opening. Holder for tube fixation or nasal feeding tubes. Radiolucent, suitable for CT and MRI. Sealed, durable foam is easy to clean. Adjustable sizes: 1 (infant), 2 (toddler), 3a (young adults)

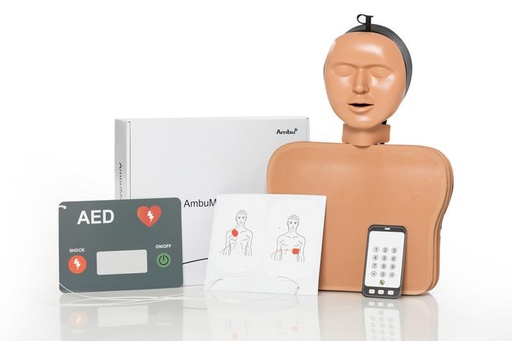

Ambu Man School, set of 10
The AmbuMan School is ideal for training pupils in school classes. It was designed for practising all Basic Life Support measures.
The training device enables realistic practice of chest compressions and the placement of defibrillation electrodes to learn how to use an AED. The unique hygiene system prevents cross-contamination during mouth-to-mouth and mouth-to-nose ventilation.

GUIDELINE COMPLIANT
The AmbuMan School enables CPR to be performed according to the latest international guidelines.

COMPACT AND MOBILE
For easy transport and set-up, the AmbuMan School features a low weight and compact packaging.

EASY AED TRAINING
Thanks to its closed torso, the defibrillation electrodes can be placed realistically. This enables straightforward training in AED use.
• Ambu hygiene system prevents cross-contamination
• Compact and mobile training device
• Easy training of chest compressions
• Closed torso
• Easy placement of defibrillation electrodes
• Set of 10 for optimal group training
