AIR LIQUIDE

- Set consisting of:

- Air Liquide Soffio Cube Year Pack, consisting of 1 x nebuliser, 1 x mouthpiece, 1 x adapter, 1 x air tube 1 m, 6 x air filters, 1 x adult mask, 1 x child mask, 2 x rubber straps for masks.

- Air Liquide Nebula 1.5 m air hose, made of PVC.

Nebula is the aerosol inhalation device for healthcare facilities and private users who are looking for technical top performance and maximum reliability in a single device for the treatment of the lower respiratory tract.

Focus on therapy success

• Powerful compressor and nebuliser enable short treatment times
• The small aerosol particles (MMAD 1.9 µm) reach even the deep regions of the lungs
• Ergonomic mouthpiece made of high-quality, durable plastic
• Advanced mouth mask for adults and mouth-and-nose mask for infants and young children made of soft silicone for a positive therapy experience

Form supports function

• User-friendly product design with storage compartment for all accessories with a small footprint
• Very stable base and integrated carrying handle for easy handling
• Easy cleaning and wipe disinfection thanks to smooth surfaces

Nebula Spacer nebuliser set:

The special design of the silicone mouth mask of the Nebula Spacer nebuliser set for adults increases therapeutic effectiveness and improves bronchial deposition of the nebulised medication. Angle adapter with exhalation valve included.

Perfecta nebuliser set:

The silicone mouth-and-nose mask of the Perfecta nebuliser set for infants and young children is tailored to their facial shape. This ensures good cooperation with high therapeutic effectiveness and improved bronchial deposition of the nebulised medication. Angle adapter with exhalation valve included.

Nebuliser with mouthpiece:

The high-performance nebuliser and the directly attached mouthpiece form an optimised treatment unit for aerosol delivery to the patient.

Mouthpiece:

If required, the nebuliser mouthpiece can be replaced, which saves costs and storage space, especially for institutions.

Filter:

High-quality air filters in a pack of 2, to protect patient and device.

1.5 m air hose:

High-quality PVC air hose specially designed for the Nebula device.

PVC masks:

High-quality PVC masks for adults and children, designed for aerosol delivery using classic mouth-and-nose masks. For direct connection to the nebuliser. Elastic straps included.

Technical data:

Nebuliser specifications
Particle size (MMAD): 1.9 µm (**)
Nebuliser output: 0.3 ml/min (***)

Compressor specifications

Operating mode: continuous operation
Maximum air pressure: 2.7 bar
Maximum air flow: 12 l/min
Noise level at 1 m distance: 57 dBA
Dimensions (H x W x D): 230 x 185 x 180 mm
Weight: 3 kg

Scope of delivery:

- Nebula compressor inhalation device
- Nebula Spacer nebuliser set consisting of nebuliser, adapter and mouth mask for adults
- Mouthpiece
- Perfecta mouth-and-nose mask for infants and young children
- 1.5 m air hose
- 3 high-quality air filters

Air Liquide Nebula mouthpiece, for use with the Nebula Spacer and Perfecta nebulisers.

Air Liquide Nebula nebuliser mouthpiece set for aerosol therapy, consisting of a nebuliser and mouthpiece.

- Air Liquide Nebula Perfecta nebuliser set for aerosol therapy, consisting of a nebuliser and volumetric oronasal mask, for infants and toddlers.

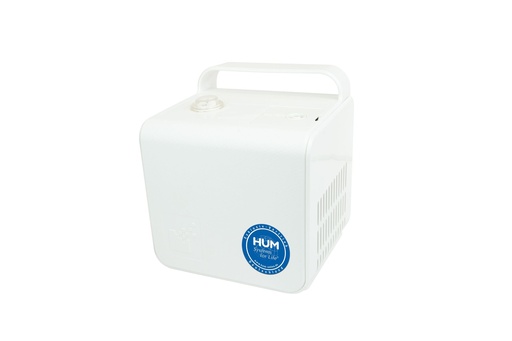

Soffio Cube is a lightweight and compact inhalation device
for aerosol therapy of the lower airways.
Thanks to its user-friendly operating concept and
compact dimensions, Soffio Cube enables
simple and efficient therapy. Performance and
scope of delivery make it ideal for the whole family.
Optimised performance

• Modern compressor nebuliser
for the lower airways

• High-quality nebuliser produces
highly respirable aerosol particles

• Short inhalation times thanks to high nebuliser output

• Extensive scope of delivery for various routes of administration

User-friendly product design

• Good design for stable and secure positioning

• All controls arranged on the top of the device

• Space-saving dimensions

• Storage bag for the complete scope of delivery

Areas of use:

• Homecare
• Nursing homes

Scope of delivery:

Nebuliser (incl. adapter):

High-quality nebuliser which, in combination with the compressed-air compressor, generates highly respirable aerosol particles.

Mouthpiece and nasal piece:

Ergonomic mouthpiece with exhalation openings
for therapy-appropriate breathing cycles. Nasal piece for
nasal inhalation.

Masks:

Comfortable mask set for adults and children incl. elastic straps.

1 m air hose:

High-quality air hose with good feel thanks to
ribbed connectors with contrasting colours.

Air filters:

Six replacement air filters for long-term protection of
patient and device

Storage bag:

Practical storage bag with sufficient
space for the device and accessories.

Technical data:

Nebuliser specifications:

Particle size (MMAD) 2.94 μm (**)
Nebuliser output 0.35 ml/min (***)

Compressor specifications:

Operating mode Continuous operation
Maximum air pressure: 1.85 bar
Maximum air flow: 10 l/min
Noise level: 58 dBA at 1 m distance
Dimensions: (H x W x D) 140 x 155 x 135 mm
Weight: 1.1 kg
