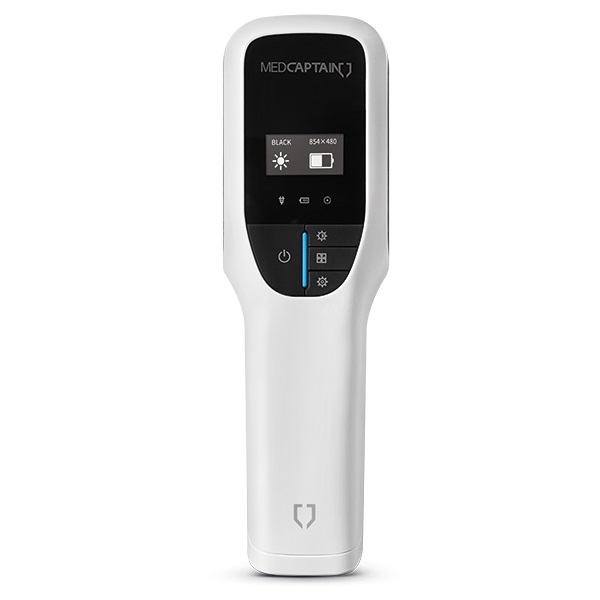

MedCaptain NAVI-60 Vein-Navi Infrared vein finder

The portable NAVI-60 vein finder works contact-free and gently using NIR technology (near-infrared light). The device supports medical staff with vein localisation in addition to visual inspection and palpation.

The vein finder from MedCaptain visualises the course of superficial veins in real time using NIR infrared light. The projection onto the surface of the skin maps the venous network precisely and also provides information on vein depth. At the touch of a button, the vein projection can be displayed in colour or inverted. The VeinNavi NAVI-60 can be used in many medical specialties to support venepuncture. Whether in infusion therapy, paediatrics, vascular surgery or oncology, the VeinNavi-60 makes it easier to find the right site for puncture, injection or blood sampling.

The high-resolution display makes occluded or bleeding veins as well as narrowings and curves more visible. Optical distortions are reduced by the NAVI-60 technology to display the distribution of veins more accurately. In depth mode, the position of the vein is shown on the skin surface using green bars. A single light bar corresponds to a depth of approx. 0 to 2 mm, two bars to a depth of 2 to 4 mm.

VeinNavi can be used in study and training to illustrate the course of veins, as well as in difficult medical situations. Particularly with veins that are difficult to palpate or very small, for example under an infant’s “baby fat”, or when venous access is limited due to medication and infusions, the VeinNavi-60 delivers fast and reliable results and provides reassurance for patients and medical professionals.

Product details:

5 colours and inverted colour mode for each colour (white, green, red, blue, light violet)
4 brightness levels
Depth mode vein depth range: 0 - 2 mm / 2 - 4 mm / ≥ 4 mm
Image sizes: 360*192 pixels / 360*288 pixels / 720*576 pixels
Light source type: near-infrared light (NIR), 10 - 25 lumens
Wavelength: 850 nm with dual light source
Optimal focus position: 210 ± 30 mm
Imaging depth of field: > 30 mm
Power supply: lithium-ion battery, charging cable with power adaptor
Operating time: > 2.5 hours
Charging time: 4 hours

Scope of delivery:

1 MedCaptain NAVI-60 VeinNavi infrared vein finder device
1 power adaptor
1 charging cable
Operating instructions with accuracy test card

DEVICE TRAINING AVAILABLE!
