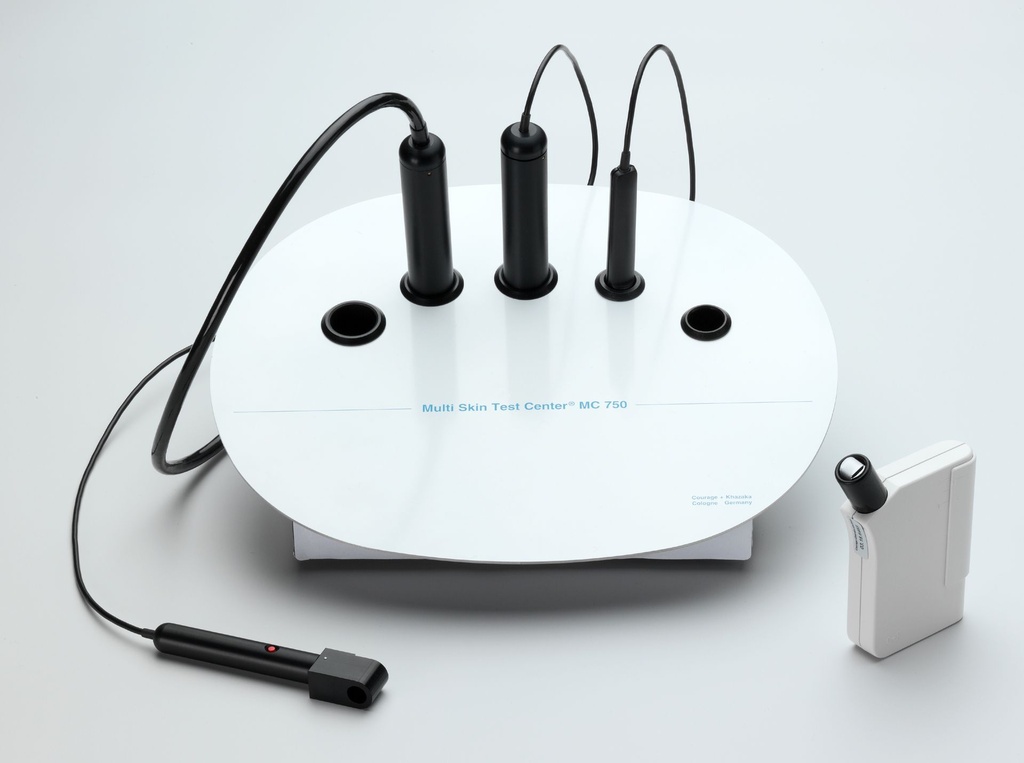

C+K Multi SkinTest Center MC 750

Easy assembly of your own skin analysis device

The basic system consists of:

Measurement of skin moisture
Measurement of oil content on skin and hair

Other probes can be connected optionally: measurement of the viscoelastic properties of the skin (biological skin age) by suction using negative pressure from the device (the skin’s ability to resist suction vs. its ability to return to its initial state after the negative pressure is removed, in %). As the elasticity measurement requires a vacuum pump in the device, it cannot be added to the system at a later date and must be included in the base unit.

Also: measurement of pigmentation (melanin) and redness (erythema), skin temperature measurement, TEWL index (quality of the skin barrier function), pH measurement and measurement of hair colour


Technical data:

Device: dimensions: 33 x 28 x 11 cm, weight: Model A: approx. 2.4 kg, Model B: approx. 2.9 kg, external power supply: 100–240 VAC/12 VDC, port: USB 2.0, type B socket

Moisture: measuring principle: capacitance, time: 1 sec., display 0–99, frequency: 0.9–1.2 MHz, length: 11 cm, weight: 41 g, cable length: 1.3 m

Sebum: photometric measurement, time: 10 seconds, display 0–99, dimensions: 8.5 x 11.3 x 2.3 cm, weight: 65 g, number of measurements per cassette: approx. 400 (the side slider releases a new measuring strip each time). Once used up, the cassette must be replaced

Optional probes:

Elasticity: measurement by suction with 400 mbar negative pressure, time: 6 seconds (3 seconds suction and 3 seconds relaxation), display 0–99, probe opening: 2 mm Ø, dimensions: 13 cm x Ø 2.4 cm, weight: 95 g, cable length: 1.3 m

Melanin/pigmentation: measurement: absorption/reflection, wavelengths: 568, 660 and 880 nm, measuring time: 1 sec., display 0–99, dimensions: 13 cm x Ø 2.4 cm, weight: 85 g, cable length: 1.3 m

pH: measuring range: pH 0 to pH 11, resolution: 0.1 pH, length: 22.8 cm, weight: 130 g, cable length: 1.3 m

TEWL index: “open chamber measurement”, measuring time 15 seconds., units: index values: 0–20, length: approx. 12 cm, weight: approx. 40 g, cable length: 1.3 m

Temperature: measuring principle: infrared, resolution: 0.1 °C, dimensions: 13.5 x Ø 2.4 cm, weight: approx. 68 g, cable length: 1.3 m

Colour measurement: measuring principle: reflection, measuring area: 8 mm Ø, measuring time: 1 sec., scale: L*a*b, dimensions: 13 x Ø 2.4 cm, weight: approx. 68 g, cable length: 1.3 m

Visioscope® PC 35 USB skin camera (for connection directly to the computer)

Sebufix® F 16: milky film for qualitative sebum determination, dimensions: 1.7 x 1.7 cm, thickness: 0.2 mm

Corneofix® F 20: transparent adhesive film for determining desquamation, dimensions: 2.00 x 1.95 cm, thickness: 0.1 mm

Films are absolutely harmless to the skin

Computer: Windows® 7/8/10, must meet system requirements, USB 2.0/3.0

Technical modifications reserved.kin Test Center MC 750
