- Miller spatula with integrated fibre optics
- Matt stainless steel – prevents reflections
- With integrated fibre optics
- No dirt traps – easy to clean
- Fibre optics Ø 3.0 mm
- Illuminance > 6,000 lux / 2.5 V > 13,000 lux / 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- In accordance with DIN ISO 7376
- Maintenance-free

- Spatula with non-replaceable fibre optics
- Matte stainless steel, version with shatterproof plastic base, service life identical to metal
- Light guide is not replaceable
- Fibre optics Ø 3.0 mm / min. 3000 individual fibres
- Illuminance > 3,500 lux / 2.5 V > 10,000 lux / 3.5 V
- Environmentally friendly, economical and low-priced
- Autoclavable up to 134°C – for approx. 4000 cycles
- According to DIN ISO 7376
- Maintenance-free

Product data:

Length/width:
Size 00 – length a 65 mm b 12 mm
Size 0 – length a 79 mm b 12 mm
Size 1 – length a 106 mm b 12 mm
Size 2 – length a 160 mm b 15 mm
Size 3 – length a 197 mm b 15 mm
Size 4 – length a 210 mm b 20 mm

- Spatula with replaceable fibre optics
- Matt stainless steel – prevents back reflection
- Replaceable light guides
- Easy to clean
- Environmentally friendly and economical at the same time
- Fibre optics Ø 4 mm, min. 5,500 individual fibres
- Illuminance > 4,200 lux / at 2.5 V > 12,500 lux / at 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- Complies with DIN ISO 7376

Product data:

Length/width:

Size 00 – length a 65 mm, b 11 mm
Size 0 – length a 79 mm, b 12 mm
Size 1 – length a 106 mm, b 12 mm
Size 2 – length a 160 mm, b 15 mm
Size 3 – length a 197 mm, b 15 mm
Size 4 – length a 210 mm, b 20 mm

Consisting of

1 x battery/rechargeable handle F.O. (medium) 2.5 V, REF 03.41000.721, rechargeable in the KaWe MedCharge® 4000 charging station in conjunction with rechargeable battery
1 x Macintosh F.O. blade, size 2, REF 03.42013.621
1 x Macintosh F.O. blade, size 3, REF 03.42013.631
1 x Macintosh F.O. blade, size 4, REF 03.42013.641
1 x Miller F.O. blade, size 0, REF 03.42023.601
1 x Miller F.O. blade, size 1, REF 03.42023.611
1 x Miller F.O. blade, size 2, REF 03.42023.621
1 x Miller F.O. blade, size 3, REF 03.42023.631
2 x illuminants xenon lamp 2.5 V REF 12.75141.003 (28934)
Supplied in case REF 03.90004.261



Compatible light guide:

REF 03.49013.621 replacement light guide F.O. for Macintosh blade, size 2
REF 03.49013.631 replacement light guide F.O. for Macintosh blade, size 3
REF 03.49013.641 replacement light guide F.O. for Macintosh blade, size 4
REF 03.49023.601 replacement light guide F.O. for Miller blade, size 0
REF 03.49023.611 replacement light guide F.O. for Miller blade, size 1
REF 03.49023.621 replacement light guide F.O. for Miller blade, size 2
REF 03.49023.631 replacement light guide F.O. for Miller blade, size 3



Possible set combinations:

REF 03.62022.002 Economy Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades
REF 03.62020.011 Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 2.5V
REF 03.62320.011 KaWe MEGALIGHT® Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 2.5V

Consisting of

1 x battery/charging handle F.O. (medium) REF 03.41000.721, rechargeable in KaWe MedCharge® 4000 charging station in combination with rechargeable battery
1 x Miller F.O. blade, size 0, REF 03.42023.601
1 x Macintosh F.O. blade, size 1, REF 03.42013.611
1 x Macintosh F.O. blade, size 2, REF 03.42013.621
Supplied in case REF 03.90001.261
2.5 V NiMH rechargeable battery (medium), rechargeable battery not included
Light source: xenon lamp for 2.5 V handle C REF 12.75141.003 (28934)



Matching light guide:

REF 03.49023.601 replacement light guide F.O. for Miller blade, size 0
REF 03.49013.611 replacement light guide F.O. for Macintosh blade, size 1
REF 03.49013.621 replacement light guide F.O. for Macintosh blade, size 2



Possible set combinations:

REF 03.62120.011 Miller F.O. laryngoscope set, neonatal, 1 handle + 3 blades, 2.5 V

- with adjusting screw
- for BASIC-SET

for KaWe COMBILIGHT® set, Finoff accessories

with 2 ear tubes, tube length approx. 110 cm, diaphragm Ø 43.8 mm

- for KaWe MedCenter® 5000
- 5 apertures
- filter for 4000 Kelvin
- polarising filter
- corrective lens wheel -36 to +35, 1-step, 71 lenses
- 3.5 V
- with lamp
- black

- for KaWe MedCenter® 5000
- 5 specula
- 3.5 V
- with lamp
- night

- for KaWe MedCenter® 5000
- 6 apertures
- 3.5 V
- with bulb
- night

- for KaWe MedCenter® 5000
- 6 apertures
- 3.5 V
- with bulb
- night

- for KaWe MedCenter® 5000
- 3.5 V
- xenon lamp
- with bulb
- night

- for KaWe MedCenter® 5000
- 3.5 V
- high-power LED lamp
- nigh

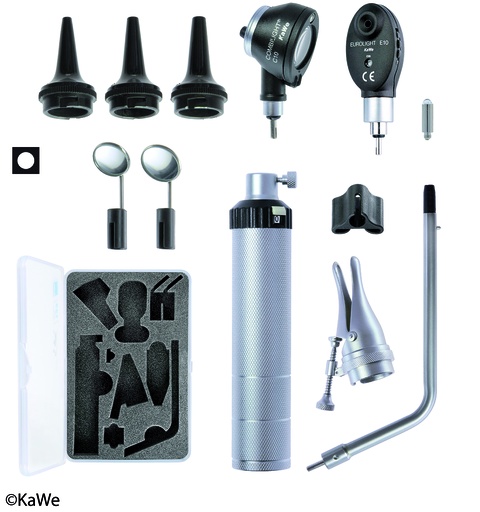

- KaWe COMBILIGHT® C10 otoscope head, 2.5 V, REF 01.73210.021 (26485)
Standard illumination
with 3x magnifying lens
Otoscope lamp: vacuum lamp REF 12.75111.013 (28943)

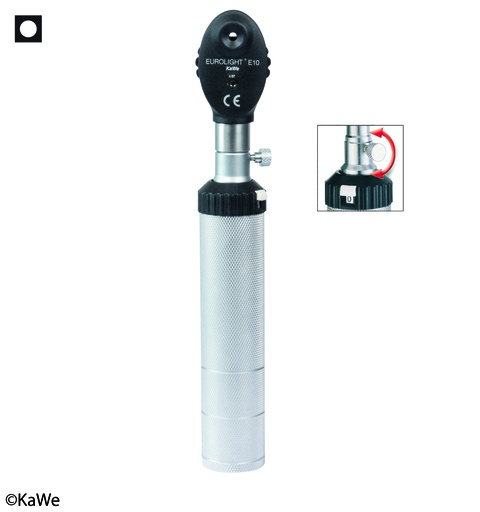

- KaWe EUROLIGHT® E10 ophthalmoscope head, 2.5 V, REF 01.81100.001
with correction lens wheel, adjustable in steps from +20 to –20 dioptres
1 aperture
Ophthalmoscope lamp: vacuum lamp, REF 12.75114.003
- KaWe EUROLIGHT® E15 ophthalmoscope head, 2.5 V, REF 01.81155.001
with correction lens wheel, adjustable in steps from +20 to –20 dioptres
5 apertures
Ophthalmoscope lamp: vacuum lamp, REF 12.75113.003 (28947)
- KaWe EUROLIGHT® E16 ophthalmoscope head, 2.5 V, REF 01.81161.001
with correction lens wheel, adjustable in steps from +20 to –20 dioptres
6 apertures
green filter
Ophthalmoscope lamp: vacuum lamp, REF 12.75113.003 (28947)
- Handle REF 01.74110.002 (24815) rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery
Battery charging handle C (medium) with screw cap, dimmable
Batteries: 2 x C (1.5 V) batteries are not included
- 3 reusable ear specula: 1 x Ø 2.5 mm, 1 x Ø 3.5 mm, 1 x Ø 4.5 mm


Product data:

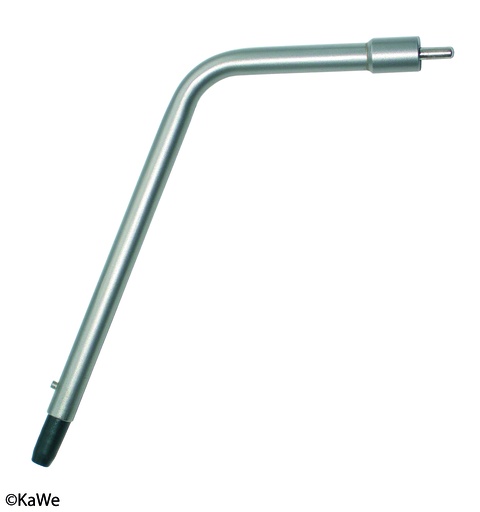

Curved lamp carrier, 2.5 V, REF 01.79102.001 (24820)
2 laryngeal mirrors: 1 x size 3 (Ø 20 mm), 1 x size 4 (Ø 22 mm), REF 01.79103.001 (24821)

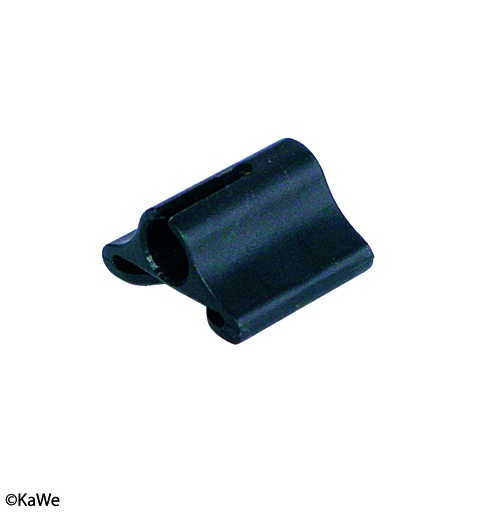

Plastic spatula holder REF 01.79201.001 (24822)

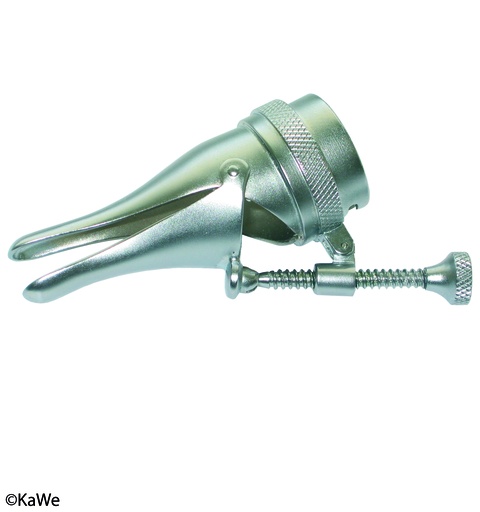

Chrome-plated nasal speculum with adjustment screw REF 01.79202.001 (24844)
Replacement lamp 2.5 V REF 12.75111.013 (28943)
Supplied in black hard case REF 01.79207.022

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.

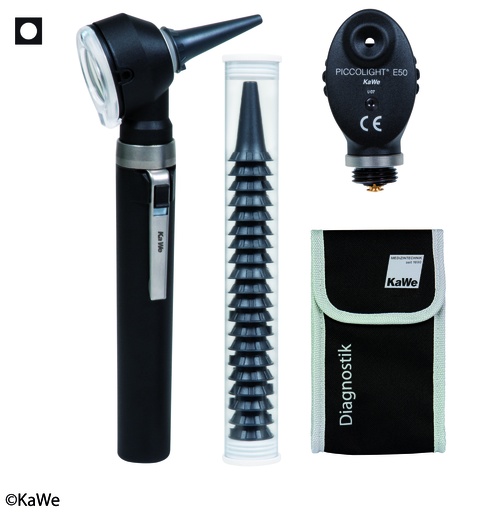

Set C / E50, 2 heads - 1 aperture - 1 handle, night
Otoscope/ophthalmoscope set consisting of:

KaWe PICCOLIGHT® C otoscope head, 2.5 V, REF 01.73300.021
Standard illumination
with 3x magnifying lens
Otoscope lamp: vacuum lamp, REF 12.75111.013 (28943)
KaWe PICCOLIGHT® E50 ophthalmoscope head, 2.5 V, REF 01.83500.021
with correction lens wheel, stepwise from +20 to –20 dioptres
1 aperture
Ophthalmoscope lamp: vacuum lamp, REF 12.75112.003 (28944)
Handle REF 01.74200.021
Battery handle (AA), 1.5 V
Batteries: 2 Mignon (type AA)
Batteries are not included in the scope of delivery!
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in a fabric pouch, outer packaging = carton box

Diagnostic set for direct ophthalmoscopy with aspheric precision optics.

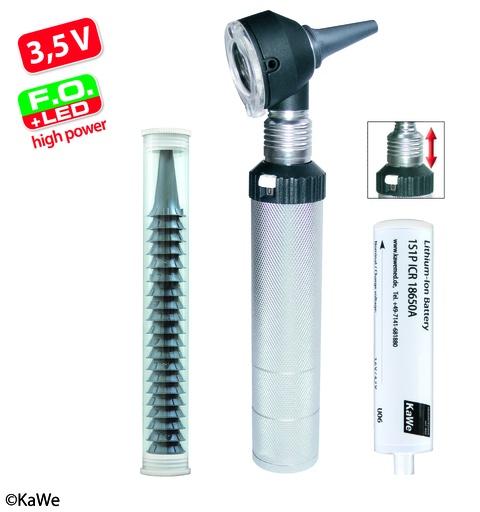

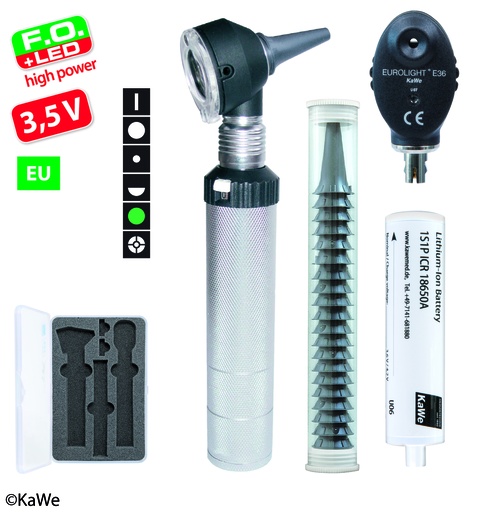

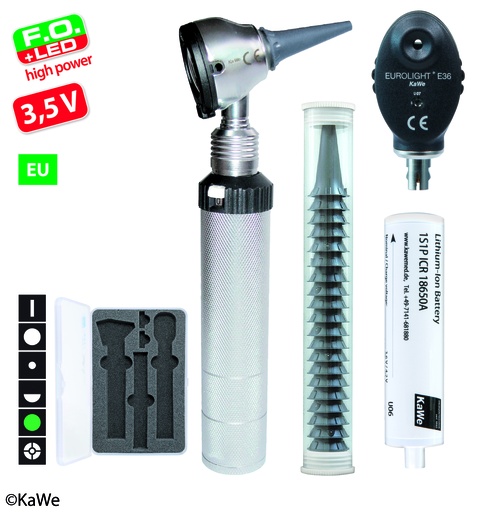

Set F.O.30 LED / E36 (EU), 2 heads - 6 apertures - 1 handle
Otoscope/ophthalmoscope set consisting of:

- KaWe EUROLIGHT® F.O.30 LED otoscope head, 3.5 V, REF 01.73137.611
- Fibre optics
- with 3x magnifying lens
- Otoscope illuminant: LED lamp high power, REF 12.75253.003
- KaWe EUROLIGHT® E36 ophthalmoscope head, 3.5 V, REF 01.85361.001
- with correction lens wheel, stepwise from +20 to –20 dioptres
- 6 apertures
- green filter
- Ophthalmoscope illuminant: halogen lamp, REF 12.75232.003 (28923)
- Handle REF 01.74131.062
- Rechargeable handle C (medium) with Clic lock, dimmable, incl. Li-ion battery; can only be used in combination with KaWe MedCharge® 4000
- Battery included in delivery
- 3.5 V
- Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
- Supplied in a black hard case REF 01.79107.022

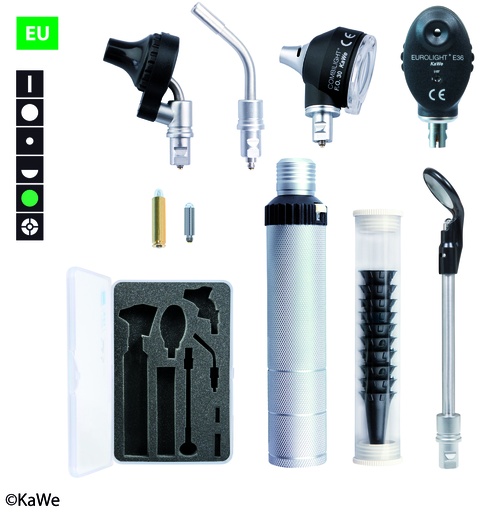

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.
Set F.O.30 / E36 (EU), 2 heads – 6 apertures – 1 handle
Otoscope/ophthalmoscope set consisting of:

KaWe COMBILIGHT® F.O.30 otoscope head, 2.5 V, REF 01.73230.021 (26510)
Fibre optics
with 3x magnifying lens
Otoscope lamp: xenon bulb, REF 12.75144.013
KaWe EUROLIGHT® E36 ophthalmoscope head, 2.5 V, REF 01.81361.001 (27071)
with correction lens wheel, stepped from +20 to −20 dioptres
6 apertures
Green filter
Ophthalmoscope lamp: halogen bulb, REF 12.75132.003 (28946)
Handle REF 01.74130.002 (24835) rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery
Battery charging handle C (medium) with Clic closure, dimmable
Batteries: 2 baby (type C), 1.5 V batteries are not included in the scope of delivery
Permanent ear specula 5 x Ø 2.5 mm, 5 x Ø 4.0 mm REF 01.72211.001 (26210)

Product data:

1 x spare bulb, xenon 2.5 V REF 12.75144.013
1 x spare bulb, halogen 2.5 V REF 12.75132.003

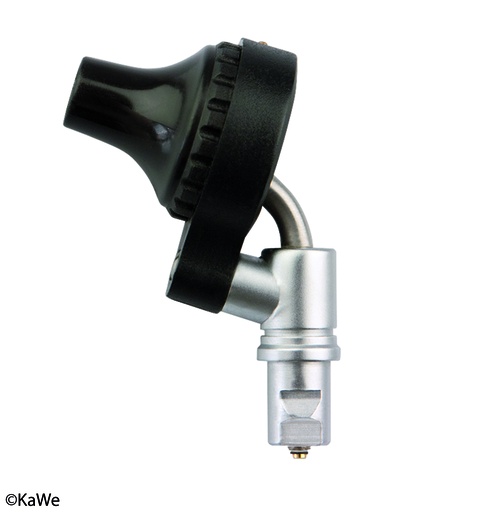

1 x nasal illuminator REF 01.79301.001
1 x Finoff illuminator XL REF 01.79302.001
1 x laryngeal mirror, straight REF 01.79303.001
Supplied in a black hard case REF 01.79112.022
