Diagnostic set for direct ophthalmoscopy with aspherical precision optics.
Set F.O.30 / E36 (EU), 2 heads – 6 apertures – 1 handle
Otoscope/ophthalmoscope set consisting of:

KaWe COMBILIGHT® F.O.30 otoscope head, 3.5 V,
REF 01.73232.021 (26558)
fibre optics
with 3x magnifying lens
Otoscope illuminant: xenon lamp, REF 12.75241.003 (28925)
KaWe EUROLIGHT® E36 ophthalmoscope head, 3.5 V,
REF 01.85361.001
with correction lens wheel, stepped from +20 to –20 dioptres
6 apertures
green filter
Ophthalmoscope illuminant: halogen lamp, REF 12.75232.003 (28923)
Handle REF 01.74131.062

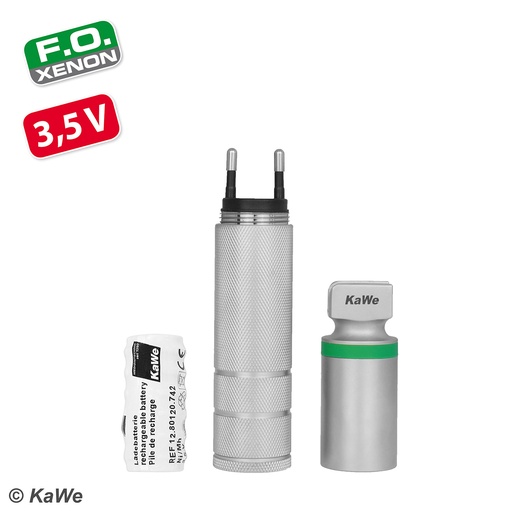

Rechargeable handle C (medium) with Clic fastener, dimmable, incl. Li-ion rechargeable battery, 3.5 V, only for use in combination with KaWe MedCharge® 4000
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in a black hard case REF 01.79107.022

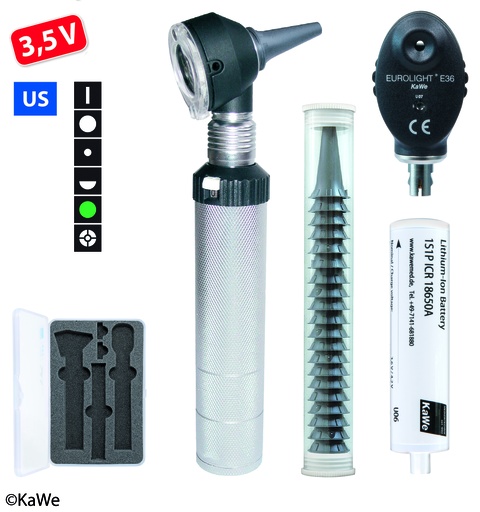

Diagnostic set for direct ophthalmoscopy with aspheric precision optics.
Set F.O.30 / E36 (US), 2 heads - 6 apertures - 1 handle
Otoscope/ophthalmoscope set consisting of:

KaWe COMBILIGHT® F.O.30 otoscope head, 3.5 V,
REF 01.73232.021 (26558)
Fibre optics
with 3x magnifying lens
Otoscope light source: xenon lamp, REF 12.75241.003 (28925)
KaWe EUROLIGHT® E36 ophthalmoscope head, 3.5 V,
REF 01.85366.001
with correction lens wheel adjustable in steps from +20 to –20 dioptres
6 apertures
Blue filter
Ophthalmoscope light source: halogen lamp, REF 12.75232.003 (28923)
Handle REF 01.74131.062
Rechargeable handle C (medium) with Clic fastening, dimmable, incl. Li-ion battery, 3.5 V; can only be used in combination with KaWe MedCharge® 4000
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in a black hard case REF 01.79107.022

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.

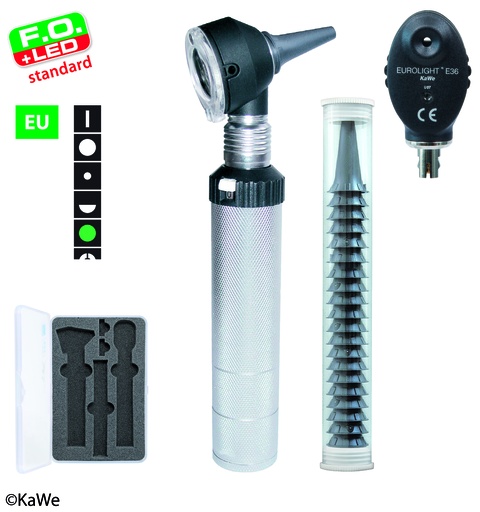

Set F.O.30 LED / E36 (EU), 2 heads - 6 apertures - 1 handle
Otoscope/ophthalmoscope set consisting of:

KaWe COMBILIGHT® F.O.30 LED otoscope head, 2.5 V, REF 01.73230.521
Fibre optics
with 3x magnifying lens
Otoscope illuminant: standard LED lamp, REF 12.75153.003
KaWe EUROLIGHT® E36 ophthalmoscope head, 2.5 V, REF 01.81361.001 (27071)
with stepped correction lens wheel from +20 to –20 dioptres
6 apertures
green filter
Ophthalmoscope illuminant: halogen lamp, REF 12.75132.003 (28946)
Handle REF 01.74130.002 (24835)
C battery handle (medium) with Clic fastener, dimmable
Batteries: 2 Baby (Type C) batteries are not included
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in black hard case REF 01.79107.022

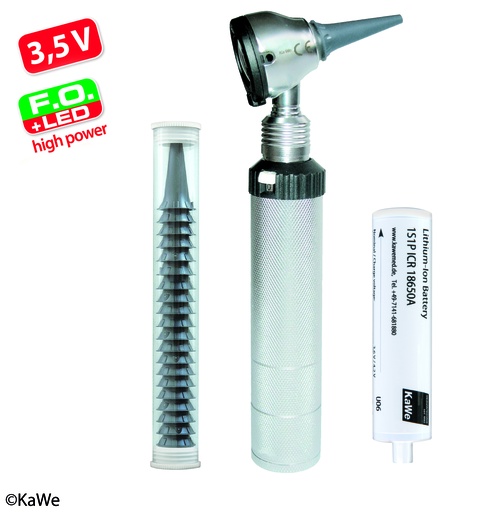

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.

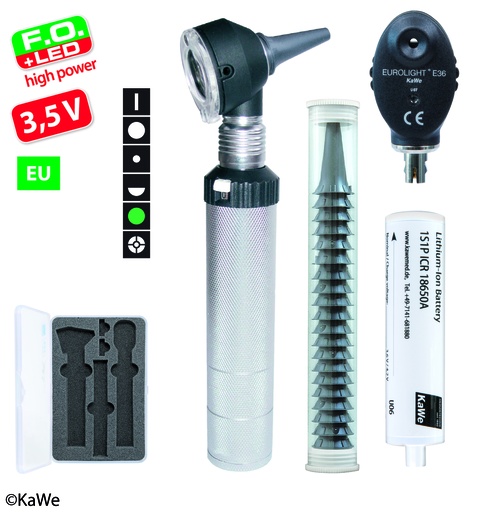

Set F.O.30 LED / E36 (EU), 2 heads – 6 apertures – 1 handle
Otoscope/ophthalmoscope set consisting of:

KaWe COMBILIGHT® F.O.30 LED otoscope head, 3.5 V,
REF 01.73232.631
Fibre optics
with 3x magnifying lens
Otoscope light source: high-power LED lamp, REF 12.75253.003
KaWe EUROLIGHT® E36 ophthalmoscope head, 3.5 V,
REF 01.85361.001
with correction lens wheel, stepwise from +20 to –20 dioptres
6 apertures
Green filter
Ophthalmoscope light source: halogen lamp, REF 12.75232.003 (28923)
Handle REF 01.74130.002 (24835)
Rechargeable handle C (medium) with Clic fastener, dimmable, incl. Li-ion rechargeable battery, only usable in combination with KaWe MedCharge® 4000
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in black hard case REF 01.79107.022

Product data:

Scope of delivery for variant 2:

1 x replacement lamp, xenon 3.5 V REF 12.75241.003
1 x replacement lamp, halogen 3.5 V REF 12.75232.003
1 x nasal light REF 01.79305.001
1 x Finoff light XL REF 01.79306.001
1 x laryngeal mirror, straight REF 01.79307.001
Supplied in black hard case REF 01.79112.022

- Otoscope KaWe EUROLIGHT® F.O.30 LED
patented Clic fastener
metal C battery handle
2.5 V LED lamp
colour temperature 5,000 K
LED service life approx. 100,000 h
illuminance approx. 8,000 lux
gentle examination
precision optics
Batteries: 2x C (Type C)
10 disposable ear specula (2.5 / 4.0 mm) each
2 reusable ear specula (2.5 / 4.0 mm) each
Batteries are not included!

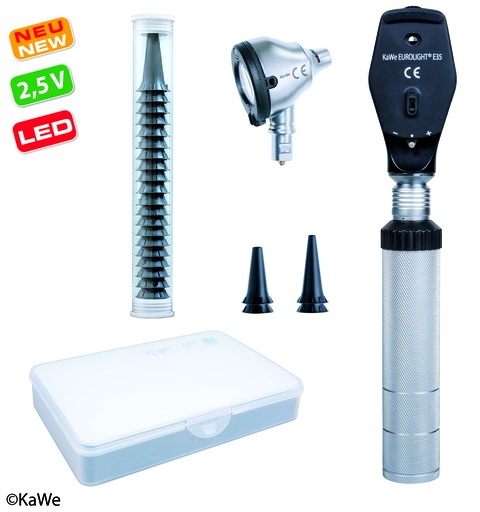

- Ophthalmoscope head KaWe EUROLIGHT® E35 LED
patented Clic fastener
metal C battery handle
2.5 V LED lamp
colour temperature 5,000 K
LED service life approx. 50,000 h
colour rendering index Ra approx. >80
gentle examination
precision optics
shadow-free examination of the fundus
Batteries: 2x C (Type C)
Batteries are not included!

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.

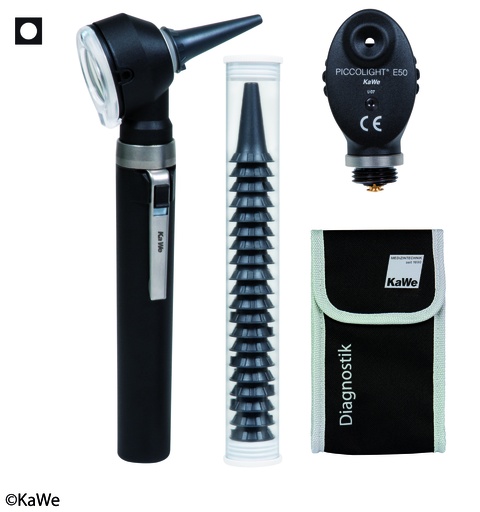

Set F.O. / E50, 2 heads – 1 aperture – 1 handle, night
Otoscope/ophthalmoscope set consisting of:

KaWe PICCOLIGHT® F.O. otoscope head, 2.5 V, REF 01.73310.021
Fibre optics with xenon illumination
with 3x magnifying lens
Otoscope illuminant: xenon lamp, REF 12.75144.013
KaWe PICCOLIGHT® E50 ophthalmoscope head, 2.5 V, REF 01.83500.021
with correction lens wheel adjustable in steps from +20 to –20 dioptres
1 aperture
Ophthalmoscope illuminant: vacuum lamp, REF 12.75112.003 (28944)
Handle REF 01.74200.021
Battery handle (AA), 1.5 V
Batteries: 2 Mignon (type AA)
Batteries are not included in the scope of delivery!
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in fabric bag REF 01.78401.021 (24943), outer packaging = carton box

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.
Set F.O. / E56 (EU), 2 heads - 6 apertures - 2 handles, night
Otoscope/ophthalmoscope set consisting of:

KaWe PICCOLIGHT® F.O. otoscope head, 2.5 V, REF 01.73310.021
Fibre optics with xenon illumination
with 3x magnifying lens
Otoscope lamp: xenon lamp, REF 12.75144.013
KaWe PICCOLIGHT® E56 ophthalmoscope head, 2.5 V, REF 01.83561.021
with corrective lens wheel in steps from +20 to –20 dioptres
6 apertures
Ophthalmoscope lamp: halogen lamp, REF 12.75132.003 (28946)
Handles REF 01.74200.021
2 battery handles (AA), 1.5 V
Batteries: 2 Mignon (type AA)
Batteries are not included!
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in a black hard case REF 01.79110.022

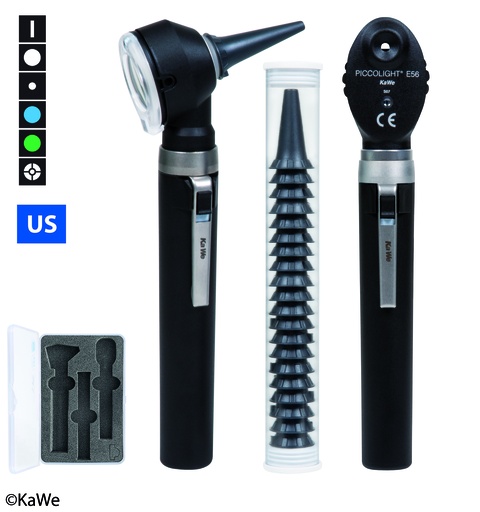

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.
Set F.O. / E56 (US), 2 heads - 6 apertures - 2 handles, black
Otoscope/ophthalmoscope set consisting of:

KaWe PICCOLIGHT® F.O. otoscope head, 2.5 V, REF 01.73310.021
Fibre optics with xenon illumination
with 3x magnifying lens
Otoscope lamp: xenon lamp, REF 12.75144.013
KaWe PICCOLIGHT® E56 ophthalmoscope head, 2.5 V, REF 01.83566.021
with correction lens wheel, graduated from +20 to –20 dioptres
6 apertures
Ophthalmoscope lamp: halogen lamp, REF 12.75132.003 (28946)
Handles REF 01.74200.021
2 battery handles (AA), 1.5 V
Batteries: 2 Mignon (type AA)
Batteries are not included in the scope of delivery!
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in black hard case REF 01.79110.022

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.
Set F.O. LED / E56 (EU), 2 heads - 6 apertures - 2 handles, black
Otoscope/ophthalmoscope set consisting of:

KaWe PICCOLIGHT® F.O. otoscope head, 2.5 V, REF 01.73520.021
Fibre optics with LED illumination
with 3x magnifying lens LED lamp standard REF 12.75153.003
KaWe PICCOLIGHT® E56 ophthalmoscope head, 2.5 V, REF 01.83561.021
with correction lens wheel in steps from +20 to –20 dioptres
6 apertures
Ophthalmoscope light source: halogen lamp, REF 12.75132.003 (28946)
Handles REF 01.74200.021
2 battery handles (AA), 1.5 V
Batteries: 2 Mignon (type AA)
Batteries are not included!
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in a black hard case REF 01.79110.022

Diagnostic set for direct ophthalmoscopy with aspherical precision optics.
Set F.O. LED / E56 (EU), 2 heads - 6 apertures - 2 handles, night
Otoscope/ophthalmoscope set consisting of:

KaWe PICCOLIGHT® F.O. otoscope head, 2.5 V, REF 01.73520.021
Fibre optics with LED illumination
with 3x magnifying lens LED lamp, standard REF 12.75153.003
KaWe PICCOLIGHT® E56 ophthalmoscope head, 2.5 V, REF 01.83561.021
with correction lens wheel, stepped from +20 to –20 dioptres
6 apertures
Ophthalmoscope light source: halogen lamp, REF 12.75132.003 (28946)
Handles REF 01.74200.021
2 battery handles (AA), 1.5 V
Batteries: 2 Mignon (type AA)
Batteries are not included!
Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
Supplied in black hard case REF 01.79110.022

Available in 3 colours: night, sky, stone

Available in 3 colours: night, sky, stone

- Battery handle (AA)
- 2.5 V vacuum lamp
- With correction lens wheel, adjustable in steps from +20 to –20 dioptres
- Aspherical precision optics
- In a fabric pouch
- Batteries: 2 x AA 1.5 V (batteries not included)
- 1 aperture, good and even illumination! Very large examination field of the fundus.

-2.5 V
-XH
-AA handle
-Includes pouch
-6 apertures

Available in 3 colours: night, sky and stone

- 6 apertures, excellent and uniform illumination! Very large examination field of the ocular fundus.

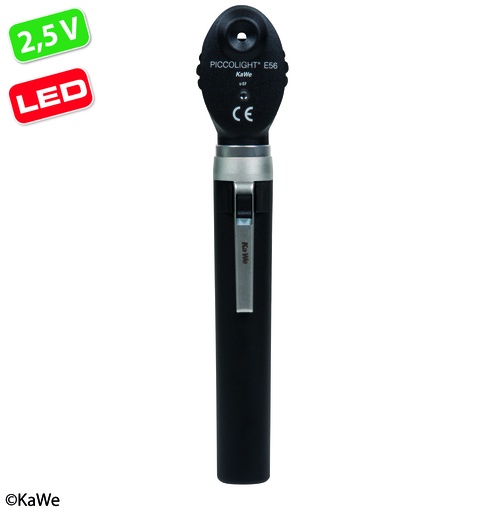

- direct ophthalmoscopy
- with six apertures for versatile ophthalmological examinations
- precision optics
- current consumption at 2.5 V = 20 mA
- colour temperature 5,000 K
- LED service life approx. 50,000 h

- battery handle (AA)
- 2.5 V LED lamp
- with correction lens wheel adjustable in steps from +20 to –20 dioptres
- precision optics
- in fabric pouch
- pocket-size, handy, lightweight
- Batteries: 2 AA 1.5 V (type AA) (not included in delivery!)

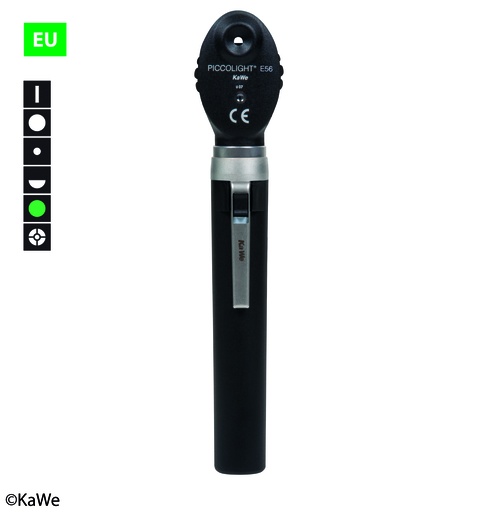

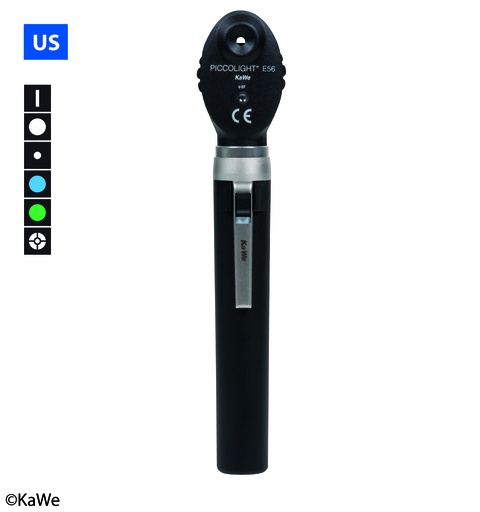

- Battery handle (AA)
- 2.5 V halogen lamp
- with correction lens wheel, adjustable in steps from +20 to −20 dioptres
- aspherical precision optics
- in fabric pouch
- Batteries: 2 AA 1.5 V (type AA) (batteries not included)
- 6 apertures Excellent and even illumination! Very large examination field of the ocular fundus.

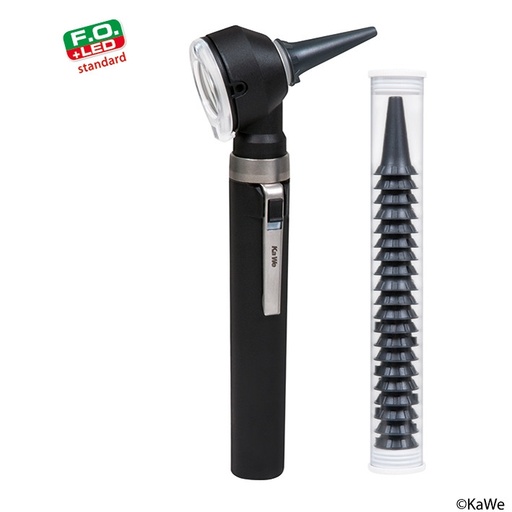

KaWe PICCOLIGHT F.O. LED standard otoscope 2.5 V, AA battery handle, with 3x magnifying lens, F.O. LED standard illumination, illuminance approx. 8,000 lux, LED service life approx. 100,000 hours, no bulb required and therefore cost-effective, incl. LED container, energy-saving, AA battery handle, disposable ear specula 10 x Ø 2.5 mm and 10 x Ø 4.0 mm, in fabric pouch, batteries: 2 x AA (batteries not included)

Available in 3 colours: night, sky, stone

- Spatula with replaceable fibre optic Improved, easier use in obese patients.
- Length a 130 mm b 22 mm
- Replacement light guide REF 03.49063.631
