- Halogen lamp
- Approx. 10x magnification
- Focus adjustment –6 to +3.5 dpt
- Large contact plate (Ø 25 mm) with scale for measuring pigmented skin lesions, in particular for early detection
- Even, intensive illumination
- Metal battery charging handle C
- Clic fastener
- Dimmable via rheostat
- In a zip pouch
- Incl. 1 bottle of Derma-Gel, 250 ml
- Batteries: 2 Baby (Type C) (batteries not included)

- rechargeable via mains socket (EU 240 V)
- incl. NiMH rechargeable battery 3.5 V

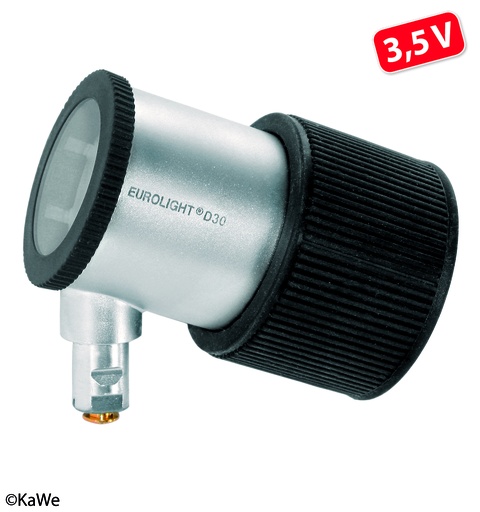

- standard LED lamp 3.5 V
- with approx. 10x magnification
- focus adjustment -6 to +3.5 dpt
- large contact plate (Ø 25 mm) with scale for measuring pigmented skin lesions, particularly for early detection
- even, intensive illumination
- metal charging handle C
- Clic closure
- in a zip pouch
- incl. 1 bottle of Derma-Gel, 250 ml
- rechargeable battery included in the scope of delivery

- Vacuum lamp
- with approx. 10x magnification
- Focus adjustment -6 to +3.5 dpt
- Large contact plate (Ø 25 mm) with scale for measuring pigmented skin lesions, especially for early detection!
- Even, intensive illumination
- AA battery handle, black plastic
- in fabric pouch
- Batteries: 2 x AA (type AA) (batteries not included)

- Screw cap
- Vacuum lamp
- Metal battery handle C
- Light control
- with correction lens wheel, adjustable in steps from +20 to –20 dioptres
- in a zip-up pouch
- Batteries: 2x 1.5 V C cell (Type C) (batteries not included)
- 1 aperture, good and even illumination! Very large examination field of the fundus.

- Click fastener
- Vacuum lamp
- Metal C battery handle
- Light intensity control
- with correction lens wheel adjustable in steps from +20 to –20 dioptres
- in a zip pouch
- Batteries: 2x C 1.5 V (Type C) (batteries not included)
- 1 aperture, good and even illumination! Very large examination field of the fundus.

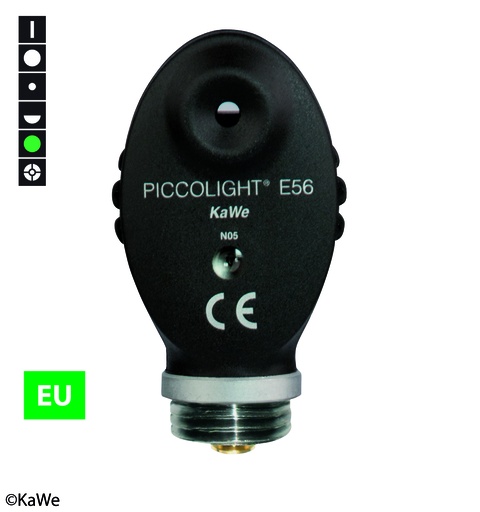

- EU version
- Clic closure
- 2.5 V halogen lamp
- Metal battery handle, rechargeable, C
- Light control
- With correction lens wheel, adjustable in steps from +20 to –20 dioptres
- In zippered pouch
- Batteries: 2x C cell 1.5 V (Type C) (batteries not included)
- 6 apertures, excellent and even illumination! Very large examination field of the fundus.

- Click fastener

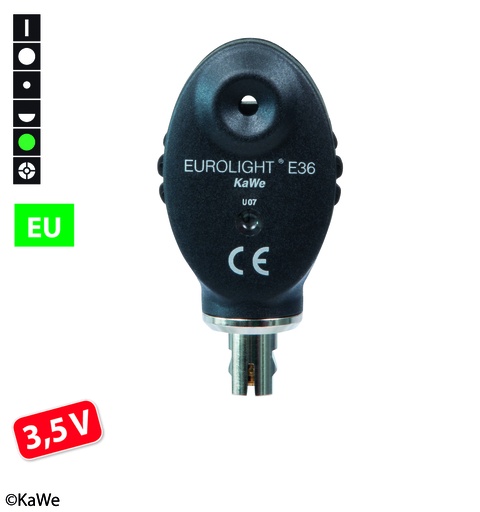

- Powerful 3.5 V halogen lamp
- Metal
- Charging handle C
- Light control
- With correction lens wheel, adjustable in steps from +20 to –20 dioptres
- Incl. 3.5 V Li-ion rechargeable battery; can only be used in combination with the KaWe MedCharge® 4000 charging station
- In a zip case
- 6 apertures, excellent and even illumination! Very large examination field of the fundus.

- EU version
- Clic closure
- 2.5 V halogen lamp
- Metal battery handle C
- Light intensity control
- with correction lens wheel, adjustable in steps from +20 to –20 dioptres
- in a zip pouch
- Batteries: 2x Baby 1.5 V (Type C) (batteries not included)
- 6 apertures, excellent and even illumination! Very large examination field of the ocular fundus.

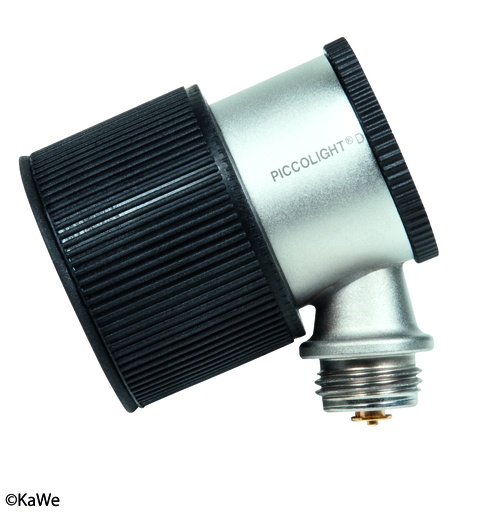

Available in 3 colours: night, sky, stone

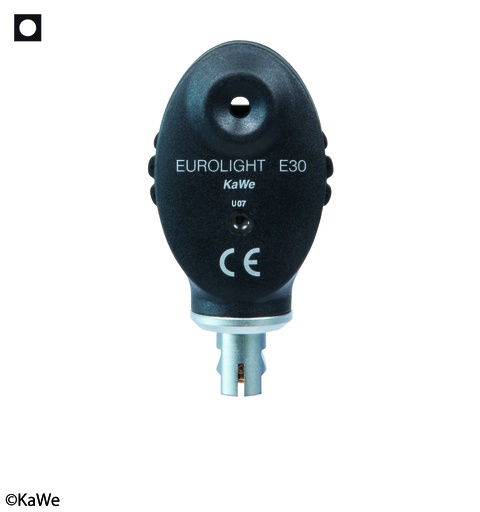

- Battery handle (AA)
- 2.5 V vacuum lamp
- With stepwise corrective lens wheel from +20 to –20 dioptres
- Aspheric precision optics
- In a fabric pouch
- Batteries: 2 x AA 1.5 V (batteries not included)
- 1 aperture, good and even illumination! Very large examination field of the fundus.

- Battery handle (AA)
- 2.5 V vacuum lamp
- with correction lens wheel adjustable in steps from +20 to –20 dioptres
- aspherical precision optics
- in fabric pouch
- Batteries: 2 AA 1.5 V (type AA) (batteries not included)

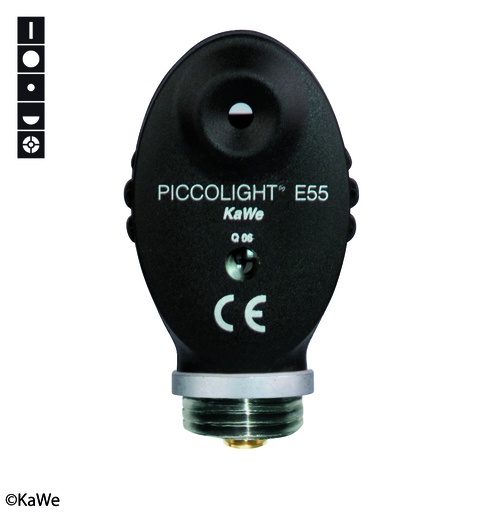

- 5 apertures, good and even illumination! Very large examination field of the ocular fundus.

-2.5 V
-XH
-AA handle
-Including pouch
-6 diaphragms

Available in 3 colours: night, sky and stone

- Battery handle (AA)
- 2.5 V halogen lamp
- with correction lens wheel, adjustable in steps from +20 to –20 dioptres
- aspheric precision optics
- in fabric pouch
- Batteries: 2 AA 1.5 V (type AA) (batteries not included)
- 6 apertures: excellent and even illumination! Very large examination field of the ocular fundus.

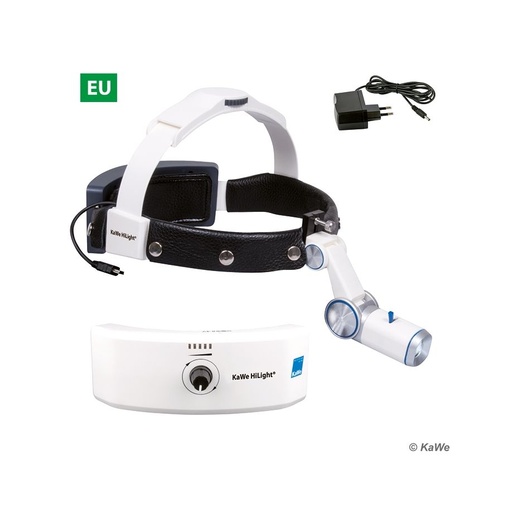

Ergonomic and modern design with LED technology
High-performance LED with white, homogeneous light for various diagnostic applications, e.g. in dental or ENT, etc.
Coated glass optics ensure optimum illumination and less heat generation
High LED efficiency, resulting in long rechargeable battery operating time
Aluminium cover on the joints provides cooling by convection and radiation; no forced cooling by cooling fan required, therefore no fan noise
Infinitely variable adjustment of the light field size and iris diaphragm, as well as the illumination angle
Can be used with binocular loupes; stepless and easy adjustment of the headband via an integrated levelling system, so there is no interference from protruding screws under surgical caps
Replaceable forehead pad
Net weight: approx. 390 g
Quick replacement of the rechargeable batteries via clip/plug-in system
LED service life: approx. 50,000 hrs.
Rechargeable battery: lithium-ion
Charging time of the headband rechargeable battery: approx. 3 hrs.
Operating time of the headband rechargeable battery: approx. 12 hrs.
Power: 3 W (LED)
Scope of delivery: headlight only, incl. charging plug, with rechargeable battery for headband

for BASIC-SET

Straight connector for KaWe COMBILIGHT® set, bayonet accessory

2.5 V

Consisting of

- 1 x Economy battery handle F.O. (medium) REF 03.41001.721
- 1 x Economy Macintosh F.O. blade, size 2, REF 03.42011.621
- 1 x Economy Macintosh F.O. blade, size 3, REF 03.42011.631
- 1 x Economy Macintosh F.O. blade, size 4, REF 03.42011.641
- Supplied in carton REF 03.90103.002
- Light source: xenon lamp for 2.5 V handle C REF 12.75141.003 (28934)

2.5 V

Consisting of

- 1 x battery/rechargeable handle F.O. (medium) REF 03.41000.721, rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery pack
- 1 x Macintosh F.O. blade, size 2, REF 03.42013.621
- 1 x Macintosh F.O. blade, size 3, REF 03.42013.631
- 1 x Macintosh F.O. blade, size 4, REF 03.42013.641
- Supplied in case REF 03.90001.261
- 2.5 V NiMH rechargeable battery (battery pack) (medium) REF 12.80110.722 (28965), rechargeable battery not included
- Light source: xenon lamp for 2.5 V handle C REF 12.75141.003 (28934)



Compatible light guide:

- REF 03.49013.621 replacement light guide F.O. for Macintosh blade, size 2
- REF 03.49013.631 replacement light guide F.O. for Macintosh blade, size 3
- REF 03.49013.641 replacement light guide F.O. for Macintosh blade, size 4



Possible set combinations:

- REF 03.62022.002 Economy Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades
- REF 03.62790.011 Miller / Macintosh F.O. laryngoscope set, adults + paediatrics, 1 handle + 7 blades, 2.5 V
- REF 03.62320.011 KaWe MEGALIGHT® Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 2.5 V

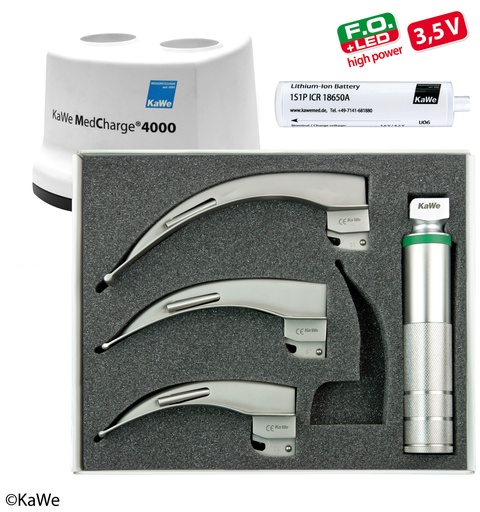

1 x F.O. charging handle (medium) REF 03.41140.521, rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery
1 x Macintosh F.O. blade, size 2, REF 03.42013.621
1 x Macintosh F.O. blade, size 3, REF 03.42013.631
1 x Macintosh F.O. blade, size 4, REF 03.42013.641
3.5 V Li-Ion rechargeable battery (medium)
KaWe MedCharge® 4000 charging station REF 12.80005.002
Supplied in carton REF 03.90103.002
Light source: LED lamp for 3.5 V handle C REF 12.75251.003


Matching light guide:

REF 03.49013.621 Replacement F.O. light guide for Macintosh blades, size 2
REF 03.49013.631 Replacement F.O. light guide for Macintosh blades, size 3
REF 03.49013.641 Replacement F.O. light guide for Macintosh blades, size 4


Possible set combinations:

REF 03.62020.711 Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 3.5 V
REF 03.62020.722 Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 3.5 V, charging station
REF 03.62320.711 KaWe MEGALIGHT® Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 3.5 V
REF 03.62320.722 KaWe MEGALIGHT® Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 3.5 V, charging station
REF 03.63320.722 KaWe MEGALIGHT® Macintosh F.O. LED laryngoscope set, adults, 1 handle + 3 blades, 3.5 V
