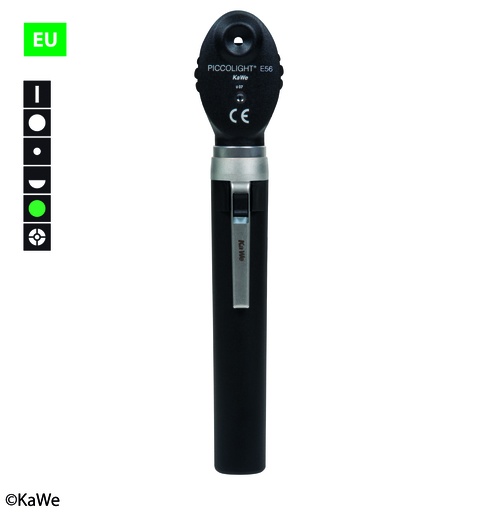

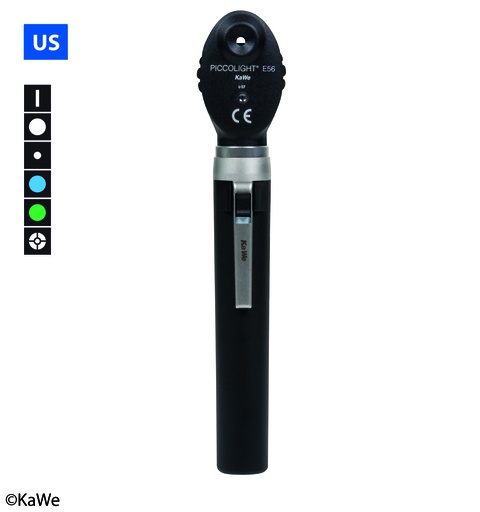

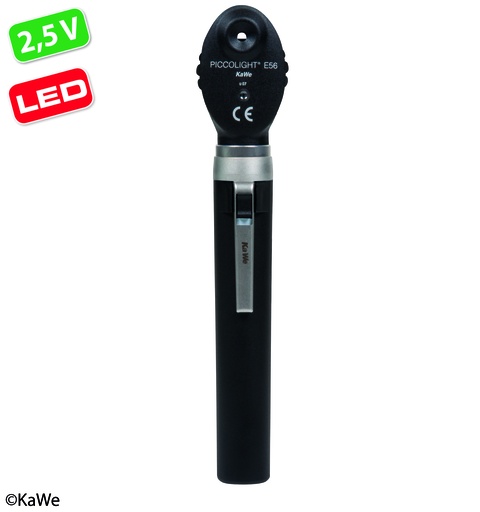

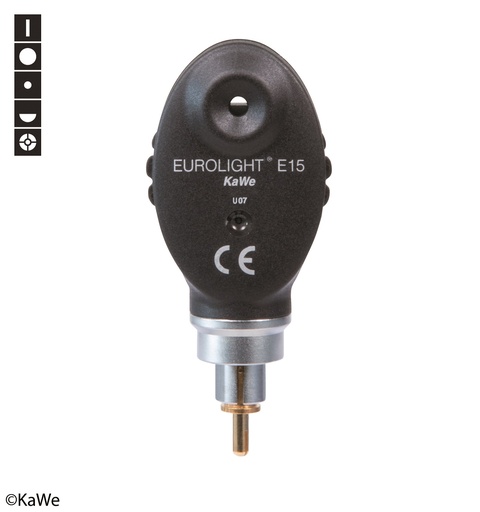

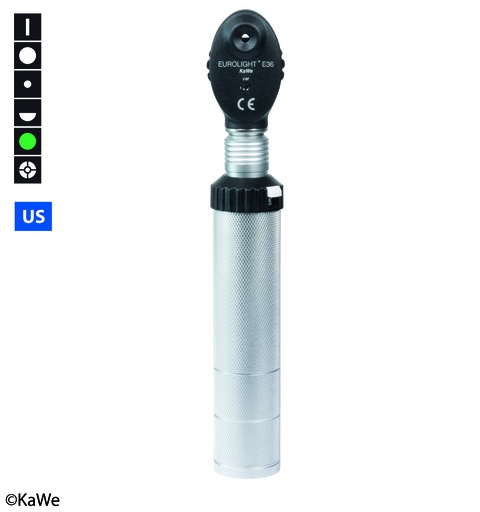

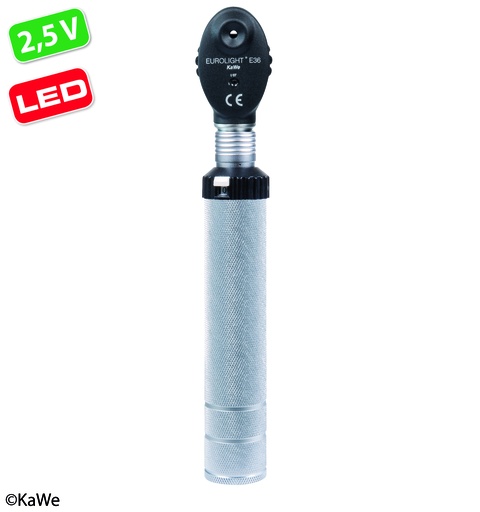

6 apertures, outstanding and uniform illumination. Very large examination field of the fundus.

Direct ophthalmoscopy
With six apertures for versatile ophthalmological examinations
Precision optics
Current consumption at 2.5 V = 20 mA
Colour temperature 5,000 K
LED service life approx. 50,000 h

Clic locking mechanism
2.5 V LED lamp
Metal battery handle
With correction lens wheel, stepped from +20 to –20 dioptres
In a zip pouch
Pocket size, handy
Batteries: 2x Baby 1.5 V (Type C) (not included!)

- EU version
- Clic fastener
- 2.5 V halogen lamp
- Metal battery charging handle C
- Light control
- with correction lens wheel, adjustable in steps from +20 to –20 dioptres
- in zip pouch
- Batteries: 2x C 1.5 V (Type C) (batteries not included)
- 6 apertures, excellent and even illumination! Very large examination field of the ocular fundus.

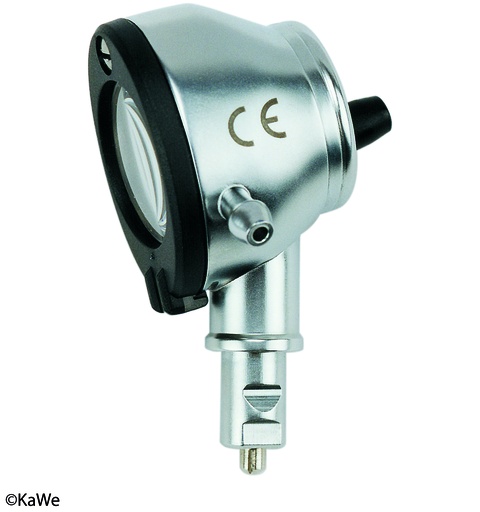

- 2.5 V
- Screw cap
- Vacuum lamp
- Metal battery charging handle C
- Light control
- Disposable ear specula 10 x Ø 2.5 mm 10 x Ø 4.0 mm
in a zip bag
- Batteries: 2 baby (type C) (batteries not included)
- Rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery pack

-2.5 V
-Clic fastener
-Vacuum bulb
-Metal C battery rechargeable handle
-Light dimmer
-Disposable ear specula 10 x Ø 2.5 mm 10 x Ø 4.0 mm
in zip bag
-Batteries: 2 Baby (type C) (batteries not included)
-Rechargeable in the KaWe MedCharge® 4000 charging station in combination with a rechargeable battery pack

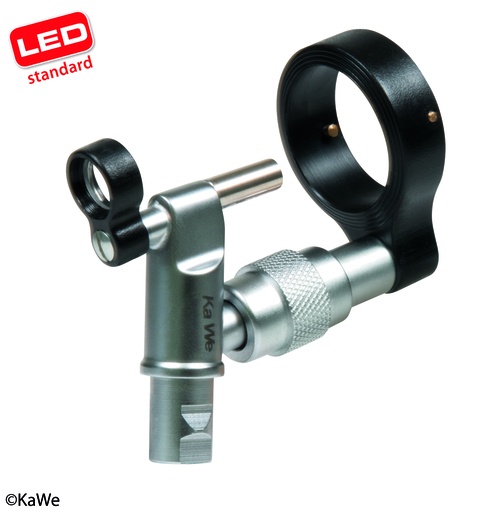

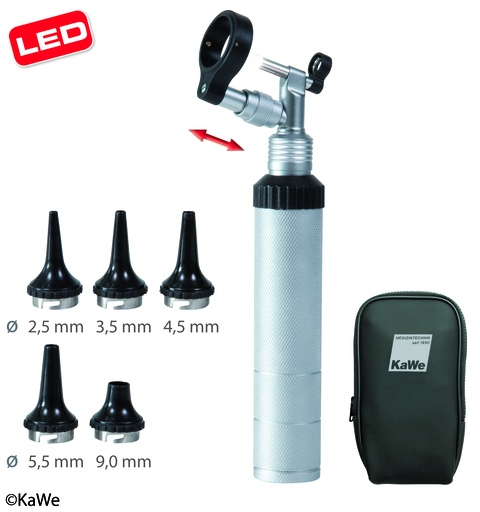

- 2.5 V
- Click-lock closure
- Metal C battery handle
- Standard LED lamp (REF 12.75153.003)
- Magnifying lens with 2.5x magnification
- 5 reusable ear specula Ø 2.5 / 3.5 / 4.5 / 5.5 / 9.0 mm (REF 01.72106.001)
- Specially designed for use in the operating theatre
- 360° swivelling magnifying lens
- Otoscope head accessible for instruments
- Adjustment screw for positioning the speculum holder
- In pouch
- Batteries: 2x C (Baby C), 1.5 V (batteries not included)

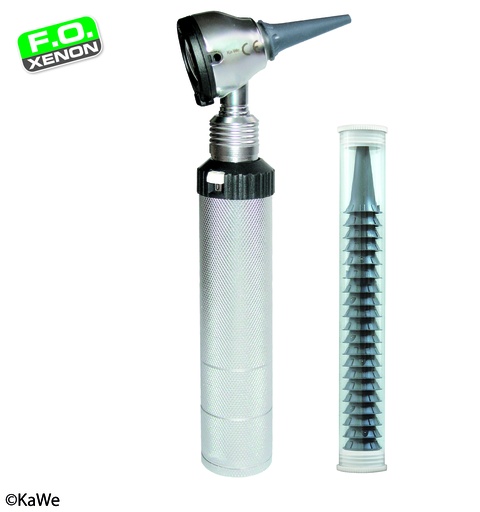

- 2.5 V
- Clic fastener
- Xenon lamp
- Metal battery handle, size C
- Light dimmer
- Disposable ear specula: 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
- In zip-up pouch
- Batteries: 2 Baby (type C) (batteries not included)
- Rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery pack

-3.5 V
-Clic fastener
-high-performance 3.5 V xenon lamp
-metal
-rechargeable handle C
-light intensity control
-disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
-incl. 3.5 V Li-ion rechargeable battery, only usable in conjunction with the KaWe MedCharge® 4000 charging station
-rechargeable in the KaWe MedCharge® 4000 charging station in conjunction with the rechargeable battery
-in zip pouch

-2.5 V
-Click-lock fastener
-LED lamp
-Illuminance approx. 8,000 lux
-Lamp service life approx. 100,000 h
-Metal battery handle C
-Disposable ear specula 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
-In a zip case
-Batteries: 2 Baby (Type C) (batteries not included)

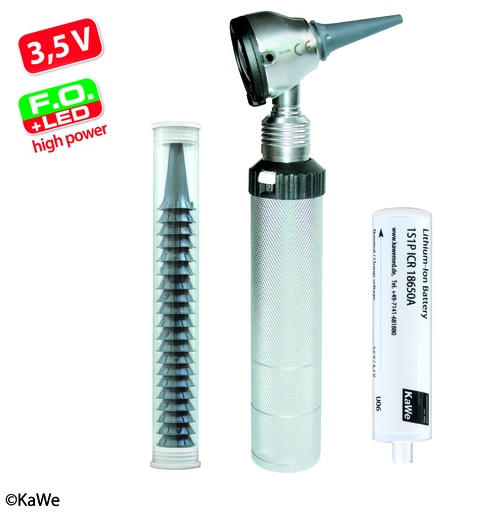

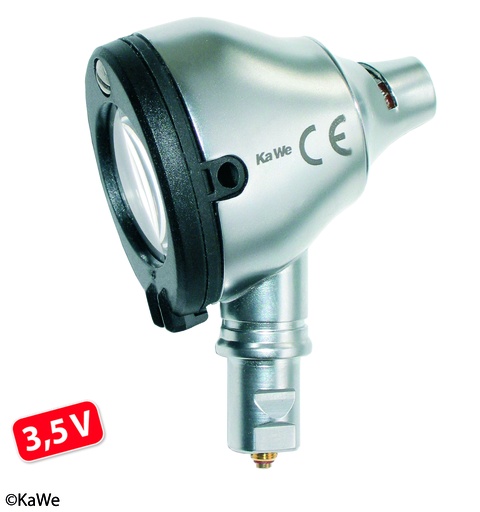

- 3.5 V
- Click-lock closure
- LED lamp
- Illuminance approx. 20,000 lux
- Lamp service life approx. 50,000 h
- Metal battery handle C
- Disposable ear specula: 10 x Ø 2.5 mm, 10 x Ø 4.0 mm
- incl. 3.5 V Li-ion rechargeable battery, only usable in conjunction with the KaWe MedCharge® 4000 charging station
- rechargeable in the KaWe MedCharge® 4000 charging station when used with the rechargeable battery
- in a zip bag

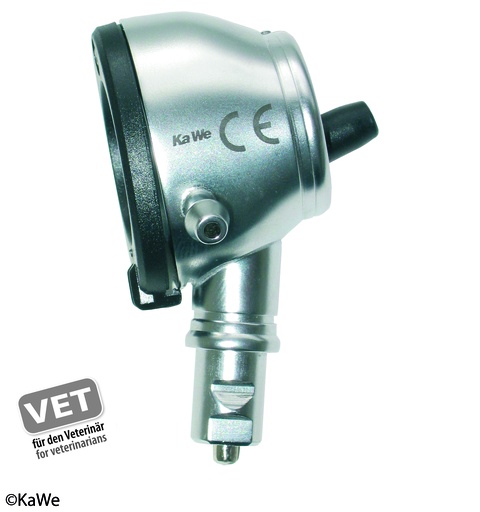

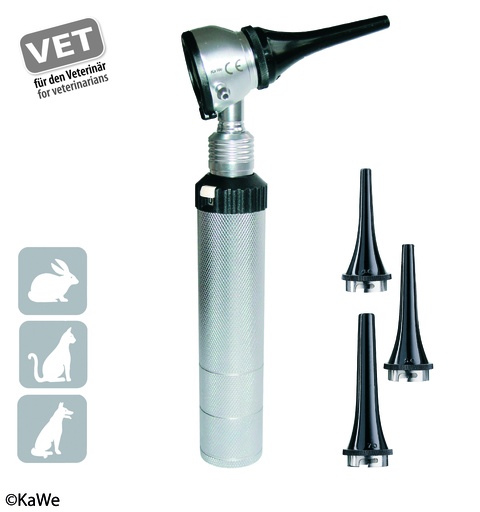

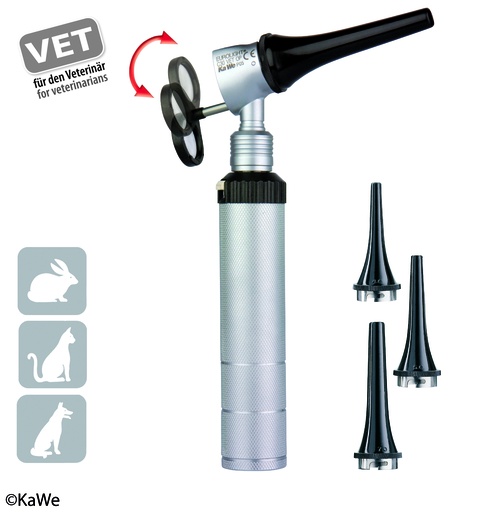

-2.5 V
-Clic fastening
-Vacuum bulb
-2x magnification with special focal length
-Metal battery handle C
-Light intensity control
-3 VET permanent ear specula Ø 4.0 / 5.0 / 7.0 mm
in zip case
-Batteries: 2 Baby (Type C) (batteries not included)
-Rechargeable in KaWe MedCharge® 4000 charging station in combination with rechargeable battery pack

-2.5 V
-Click-lock fastener
-Vacuum bulb
-2x magnification with special focal length
-Metal battery charging handle C
-Light intensity control
-3 VET permanent ear specula Ø 4.0 / 5.0 / 7.0 mm
in a zip case
-Specially for use in the operating theatre
-Otoscope head accessible from above for instruments
-Batteries: 2 x Baby (Type C) (batteries not included)
-Rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery pack

2.5 V, XL for KaWe COMBILIGHT® set, Finoff accessories

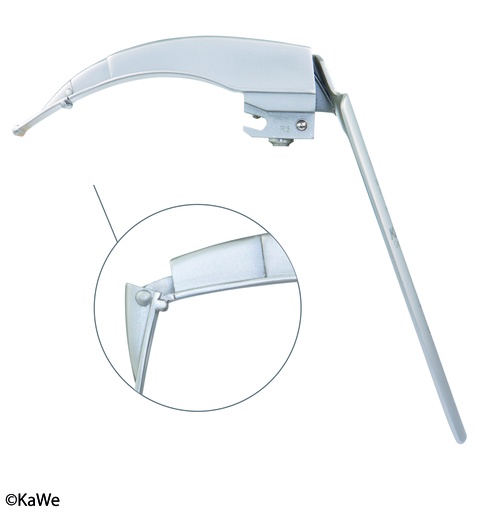

- Macintosh blade with replaceable fibre optics
- The movable blade tip facilitates lifting the epiglottis and enables visual intubation even in difficult anatomical conditions. Improved visibility and reduced leverage decrease the risk of injury to the larynx and teeth. Replacement of the fibre optics cannot be carried out by the user. The blade must therefore be sent to KaWe.
- Angled up to 60°
- Matt stainless steel – prevents back reflections
- Replaceable light guides
- Easy to clean
- Environmentally friendly and economical at the same time
- Fibre optics Ø 4 mm, min. 5,500 individual fibres
- Illuminance > 4,200 lux / at 2.5 V > 12,500 lux / at 3.5 V (measured at a distance of 35 mm from the light exit)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- According to DIN ISO 7376

- Macintosh blade with integrated fibre optics
- Features as with KaWe FLAPLIGHT® F.O., however the fibre optics cannot be replaced.
- Matt stainless steel – prevents reflections
- With integrated fibre optics
- No dirt traps – easy to clean
- Very large fibre optic bundle – cross-section (3.0 x 7.0 mm), min. 8,000 individual fibres for optimum light output
- Illuminance > 6,000 lux / 2.5 V, > 13,000 lux / 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- According to DIN ISO 7376
- Maintenance-free

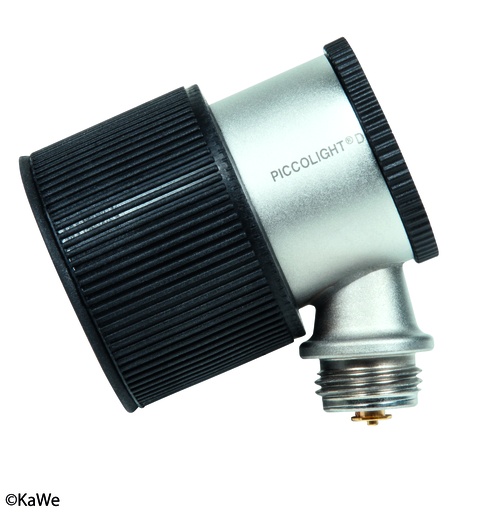

2.5 V
Light source: standard LED lamp REF 12.75154.003
Not rechargeable in the KaWe MedCharge® 4000 charging station
Batteries not included!

2.5 V
Light source: Standard LED lamp REF 12.75154.003
Not rechargeable in the KaWe MedCharge® 4000 charging station
Batteries not included in the scope of delivery!

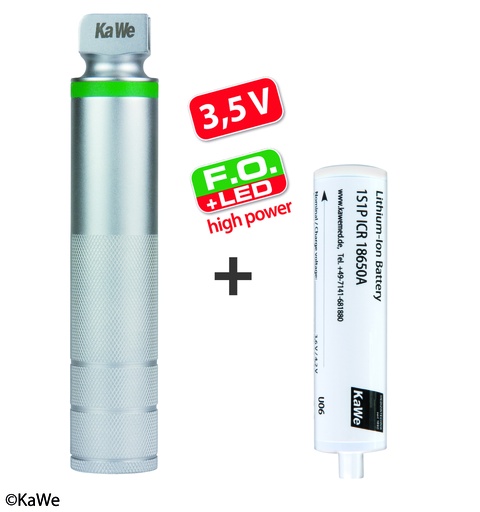

- 3.5 V
- Light source: LED lamp high power REF 12.75251.003
- Rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery
- Includes rechargeable battery

- Spatula with replaceable fibre optics
- Matte stainless steel – prevents back reflections
- Replaceable light guides
- Easy to clean
- Environmentally friendly and economical at the same time
- Fibre optics Ø 4 mm, min. 5,500 individual fibres
- Illuminance > 4,200 lux / at 2.5 V > 12,500 lux / at 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- According to DIN ISO 7376

Product data:

Length/width:
Size 0 – length a 77 mm b 12 mm
Size 1 – length a 94 mm b 14 mm
Size 2 – length a 113 mm b 16 mm
Size 3 – length a 132 mm b 17 mm
Size 4 – length a 158 mm b 20 mm
