A compact handle with automatic closure and a slimmer grip than the BETA handle. Rechargeable in the NT4 table charger with reduction insert. Dimensions: 135 mm x 19 mm Ø. Weight: 180 g.

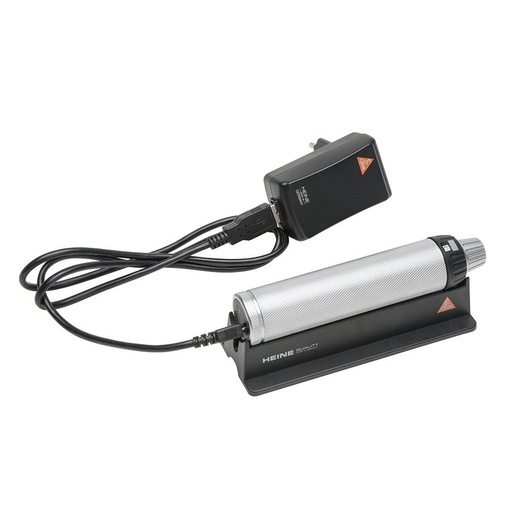

The HEINE BETA 4 USB handle can be safely charged with any USB plug or other USB power source. The BETA 4 USB handle has a unique integrated galvanic isolation module to protect the handle and the user from the consequences of faulty plugs. This reliably prevents mains current from flowing directly into the handle. However, we recommend using a medically approved plug-in power supply unit.

With OPTICLAR adapter also compatible with OPTICLAR attachments.

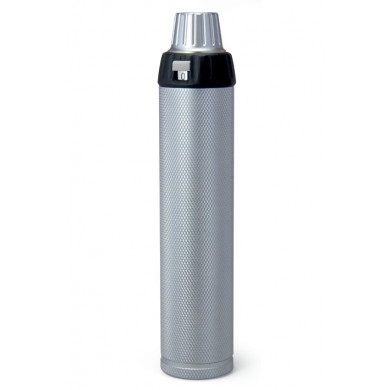

- Charging handle with charge level indicator in the base unit - no “memory effect” of the rechargeable battery - upgrade option for existing BETA handles by simply switching to the Li-ion L rechargeable battery and base unit for the BETA L handle - ready-to-use function: a switched-on device automatically switches off when inserted into the NT 300 charger; when removed, it automatically switches on again at the preselected brightness level. - compatible with previous chargers (NT 200 and Nicatron charger)

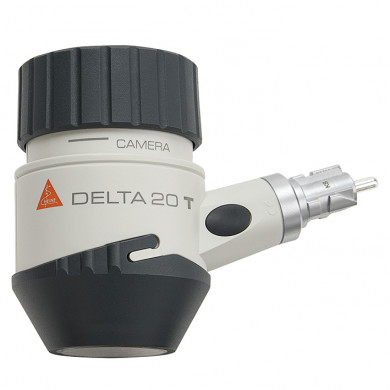

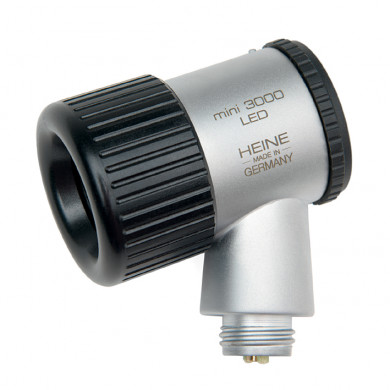

For incident-light microscopy examinations for the early detection of malignant melanoma. Also suitable for examining non-melanocytic lesions, basal cell carcinomas and dermatofibromas. - The high-quality achromatic optical system provides razor-sharp, high-resolution images; the focusing system achieves 10x to 16x magnification for a detailed view of even the smallest structures - Eyepiece: individual focus adjustment, dioptre compensation range of approx. -6 to +6 dpt - The standard in LED illumination provides absolutely homogeneous, bright light with true colour rendition for precise diagnosis. Red is red, blue is blue. Colour temperature 5000 K, colour rendering index (CRI) >80 with a maximum scale value of 100 - 4 high-performance LEDs ensure absolutely even and bright illumination with consistent quality for up to 50,000 hours - Convenient switching between polarised and non-polarised views at the touch of a button; no need to change the contact plate. The additional diagnostic function enables detection of the so-called “Blink Sign” when viewing crystalline structures and milia - Small contact plate for hard-to-reach lesions available optionally - Options for digital documentation: can be easily connected to SLR cameras from the leading manufacturers using the HEINE digital camera lens system; the specially developed lenses of the photo adapter (optional) combine the camera and the DELTA 20 T into an unbeatable combination

Suitable for HEINE Beta handles or, with OPTICLAR adapter, for OPTICLAR handles

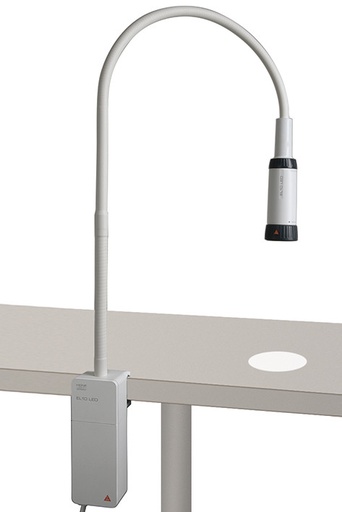

The EL 10 LED examination light from HEINE is equipped with a clamp mount for table installation. It is characterised by optimal illumination thanks to particularly homogeneous light and realistic colour rendering provided by the 10-watt high-performance LED (3,000 Kelvin, colour rendering index > 85). Result: red is red, blue is blue. Constant luminous intensity and colour rendering of the LED are ensured over the entire service life of 30,000 hours. In addition, the light offers continuous one-handed adjustment of brightness and light field. Illuminance can be adjusted continuously between 6,500 and 45,000 lux, and the light field size can be freely set between 8.5 and 14 cm in diameter, at a working distance of 30 cm. Intuitive and easy positioning via the high-quality gooseneck and the compact lamp head (Ø approx. 60 mm) allows for near-coaxial illumination, which is perfect especially in difficult application situations. Thanks to the compact design, cleaning and disinfection are straightforward.

Product data:

Colour: white
Light colour: 3,000 Kelvin
Colour rendering index: > 85
Service life: 30,000 hours
Illuminance: 6,500 to 45,000 lux
Warranty: 5 years

EL 10 LED examination light with metal mobile stand
- optimum illumination thanks to particularly homogeneous light - realistic colour rendering thanks to 10-watt high-performance LED (3,000 Kelvin, colour rendering index > 85). Result: red is red, blue is blue - constant brightness and colour rendering of the LED over its entire service life of 30,000 hours - stepless regulation of brightness and light field with one hand: illuminance can be adjusted continuously between 6,500 and 45,000 lux; the light field size can be freely set between 8.5 and 14 cm in diameter, both at a working distance of 30 cm - intuitive and easy adjustment thanks to the high-quality gooseneck - the compact lamp head (Ø approx. 60 mm) enables near-coaxial illumination, especially in difficult application situations - easy cleaning and disinfection thanks to the compact design

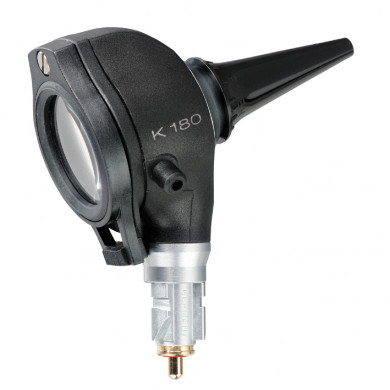

- with fibre optic illumination, housing made of lightweight, impact-resistant polycarbonate - acrylic viewing window with approx. 3x magnification - viewing window permanently integrated, airtight closure, can be swivelled sideways

You can find the matching longlife LED with an extremely long service life, as a cost-effective alternative to the halogen lamp, here:

Meddax No.: 19967-04 for Heine X-001.88.077 and X-002.88.078

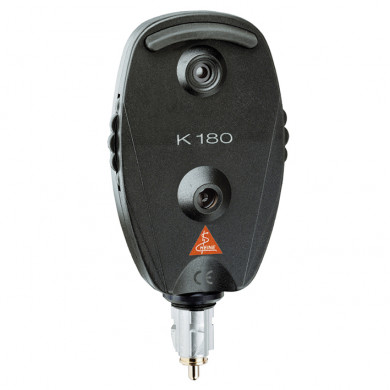

- Spherical precision optics: corneal and iris reflections are largely eliminated
- XHL Xenon Halogen technology: bright, white light, clear fundus image
- Ergonomic design: the instrument always rests well in the orbit
- Soft orbital support: protects glasses, secure hold
- Five apertures to choose from: ideal aperture selection for small and large pupils, blue filter for corneal examination
- Dust-tight viewing and illumination openings, dust-protected housing: low maintenance
- 27 lenses in the range from -35 to +40 D: sharp image even with severe refractive anomalies
- Aperture wheel: slit, red-free filter, blue filter, large circle, medium circle

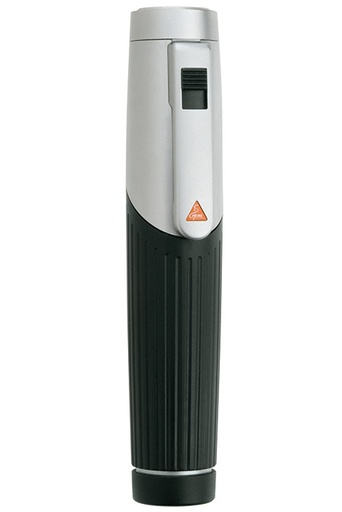

- innovative, compact battery handle in a high-quality, modern design
- suitable for all mini 3000 instruments
- high-quality handle housing: chrome alloy/refined plastic
- retaining clip with integrated on/off switch
- automatic switch-off in the pocket
- oval, compact, elegant shape
- screw-on base unit
- metal screw connection

- 10x magnification with focusable optics - improved XHL Xenon Halogen lamp technology for more light - metal screw fitting - can only be combined with the mini 3000 handle system - comprehensive compendium with illustrated atlas included

Fits HEINE mini3000 handles and OPTICLAR handles for pocket instruments

with mini 3000 battery handle

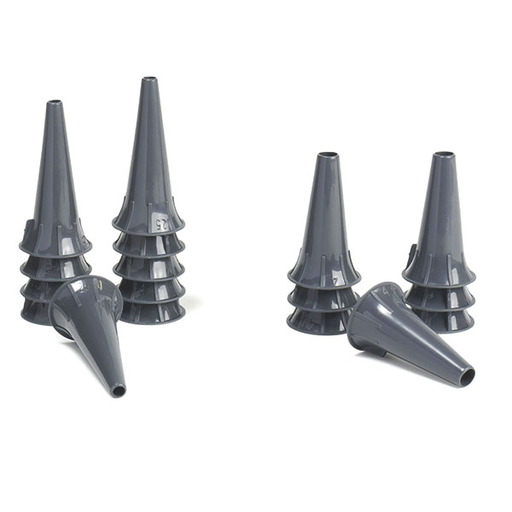

incl. batteries, with 10 AllSpec disposable tips
Ø 4 mm
Product description:

Compact pocket otoscope with fibre-optic (F.O.) illumination
- distal fibre-optic (F.O.) illumination with improved XHL xenon halogen lamp technology with 100% more light compared to conventional lamps.
- viewing window with 3x magnification and optimised housing surface for razor-sharp images and minimised reflections; viewing window permanently integrated, swivels sideways
- retaining clip with integrated on/off switch
- high-quality handle housing: chrome alloy/refined plastic

Supplied with 5 disposable tips each, Ø 2.5 and 4 mm, with batteries.

For BETA 4 NT rechargeable handle, standard F.O. 4 NT and F.O. 4 SHORT NT laryngoscope handle. For BETA 4 SLIM NT rechargeable handle and F.O. 4 SLIM NT laryngoscope handle (reduction set required X-000.99.086). - stable storage of the instruments, space-saving - two separate charging wells: full functionality with one or two handles, simultaneous charging of two handles possible - automatic charging process: regardless of the charge status of the rechargeable battery, ensures a long service life of the rechargeable batteries - overcharge protection: charging switches off automatically as soon as the rechargeable battery is fully charged - charging indicator: pulsing light of the well indicates ongoing charging, steady light indicates charging completed - dimensions: width 142 mm, height 61 mm, depth 66 mm, weight 235 g.

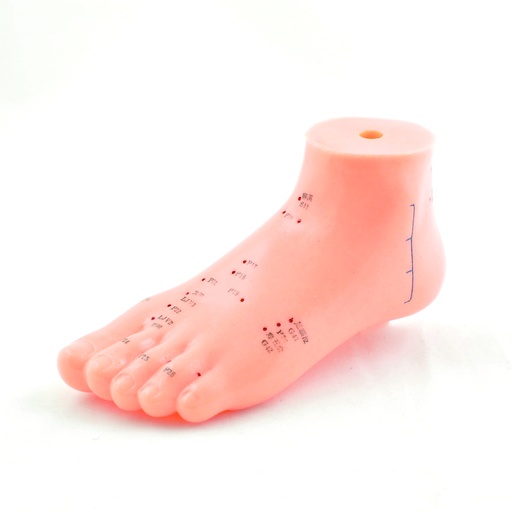

Acupuncture model with the most important acupuncture points
The foot acupuncture model from HeineScientific shows the most important acupuncture points on the human foot. The acupuncture points are labelled not only with Arabic numerals, but also with Chinese characters.

Product data:

Material: Soft PVC
Dimensions: 17 x 8 x 7 cm

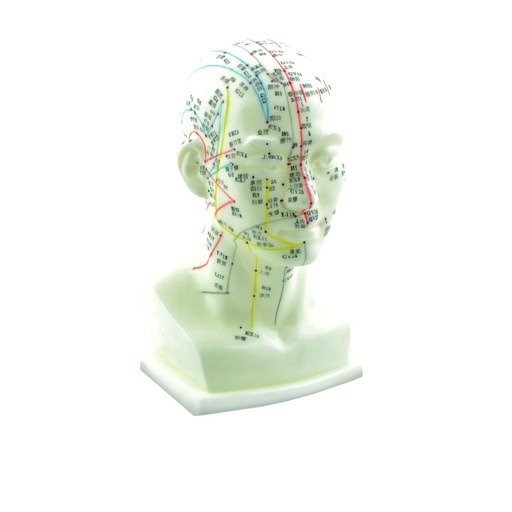

Acupuncture model with small base
The 12 x 12 x 23 cm head acupuncture model provides a clear overview of acupuncture points and meridians on the human head. The meridians on this head acupuncture model are colour-coded differently and are therefore easy to distinguish. The acupuncture points are labelled in European script and with Chinese characters. The head model is made of soft PVC; thanks to the soft material, the acupuncture model can also be used for practice with real acupuncture needles.

Product data:

Dimensions: 12 x 12 x 23 cm
Material: soft PVC

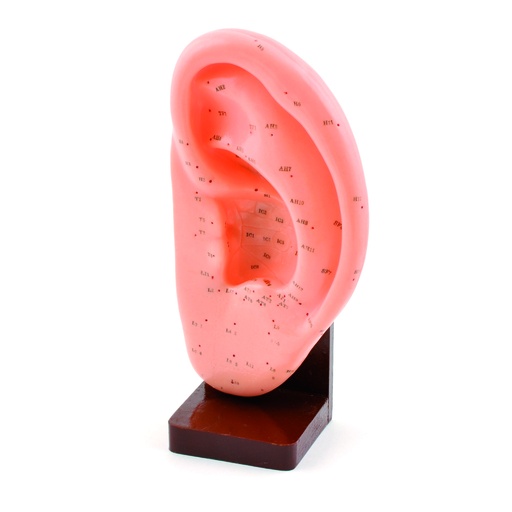

Human Ear Acupuncture Model
The ear acupuncture model clearly shows the acupuncture points on the human ear. The ear acupuncture model is mounted on a wooden base. However, it can be removed from the base. The acupuncture model is supplied with an overview of the ear’s acupuncture points (in English).

Product data:

Model of a human ear, 2x magnification
Acupuncture points in European nomenclature

Material: soft PVC
Dimensions: 7.5 x 13 x 24 cm

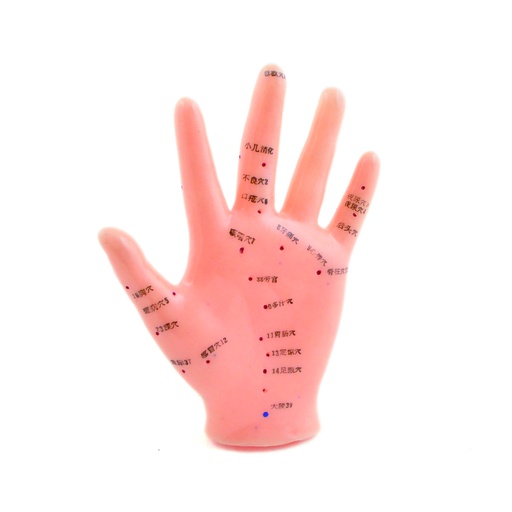

Acupuncture Model “Hand”
The acupuncture model “Hand” shows the most important acupuncture points on the human hand. The acupuncture points are labelled with Chinese characters as well as Arabic numerals. The hand acupuncture model is made of soft PVC and therefore feels much more natural than conventional plastic.

Product data:

Based on a female hand of average size

Dimensions: 14 x 10 x 2 cm
Material: soft PVC

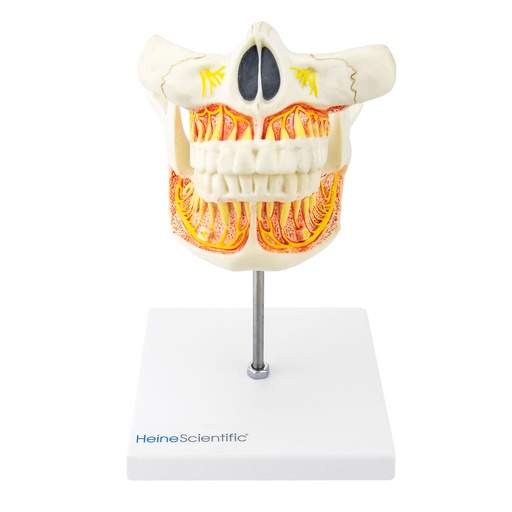

Movable Dental Model
The movable dental model of a human shows the upper and lower jaw with a detailed representation of the bony structures as well as nerves and blood vessels.

As the upper and lower jaw are connected by a flexible metal spring, the model can be opened and the jaws can be moved to demonstrate chewing movements and bite anomalies. The jaw model is available in various versions, either as a deciduous (milk) dentition with 20 teeth or as an adult dentition with 32 teeth.

Details shown in the upper jaw (maxilla):
Zygomatic bone
Nasal bone
Nasal cavity
Roots
Nerves/blood vessels
Teeth
Details shown in the lower jaw (mandible):
Condylar process
Coronoid process
Ascending ramus of the mandible
Neck of the mandible
Mental tubercle
Roots
Nerves/blood vessels
Teeth

Model of the human dentition
Complete dentition with either 20 or 32 teeth
Jaw bone, roots, nerves and blood vessels are visible
Upper and lower jaw flexibly connected to each other
For demonstrating bite anomalies, jaw misalignments and chewing movements
Dimensions deciduous dentition (L x W x H): 11.5 x 11.5 x 16 cm
Dimensions adult dentition (L x W x H): 11.5 x 11.5 x 18.5 cm
Mounted on a base, removable

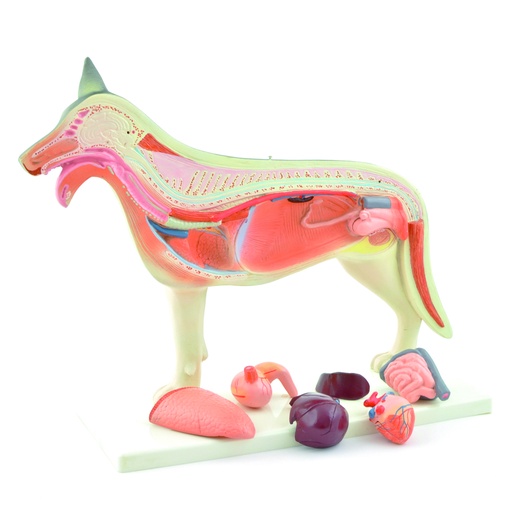

This anatomical dog model is divided into 2 halves: one half shows the dog as a realistic full view with painted fur, while the other half illustrates the dog’s muscles and tendons.

You can take the dog model apart into 2 parts, making the bones, spinal cord and internal organs inside the model visible.

You can remove the following organs from the dog model:
Lungs
Heart
Liver
Stomach
Intestines
In addition, the rectum can be opened.

Anatomical dog model
The internal organs can be removed
Consists of 8 parts and is hand-painted
The realistically designed half is permanently mounted on a white base
Dimensions (L x H x W): 40 x 33 x 15.5 cm
Weight: 1.95 kg
