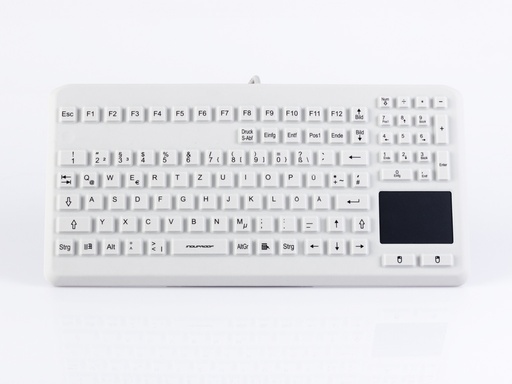

The InduProof Advanced features a full key set with numeric keypad, an integrated touchpad and impresses with a pleasant typing feel while offering the highest level of protection. Thanks to its robust design, it is ideally suited for use in demanding hygiene-sensitive areas such as industrial food and beverage production. It can be cleaned and disinfected all over. With its high-quality “Made in Germany” workmanship, it offers a long service life.

As part of the InduProof brand family, it is manufactured to the highest quality standards.

• Integrated touchpad
• VESA M5 threaded holes (spacing 75 x 75 mm) for mounting to support systems
• Sealed to IP68, can be immersed in liquids
• Good mechanical and chemical resistance thanks to special surface sealing (coating)
Compliant with DIN EN60601-1-2:2006 (Directive 93/42/EEC, Annex IX)
• Can be fully cleaned and disinfected
• Robust, durable silicone material

Product data:

Number of keys: 104
Switch technology: carbon contacts
Actuation force: 1.5 N
Actuation force (Num): 1.1 N
Key travel: 1.4 mm
Service life: 2 million actuations (per key)
Protection rating (max.): IP68
Material (housing): silicone rubber
Material (base plate): plastic
Housing colour: grey, black
Interfaces: PS/2; USB (USB 2.0 compatible)
Operating temperature: 0 °C to +60 °C
Storage temperature: -20 °C to +70 °C
Weight: 735 g
Dimensions: 340 x 165 x 16.3 mm
Certifications: CE, FCC

TOUCHPAD TECHNICAL DATA
Operating principle: capacitive
Resolution: 100–300 dpi
Active area: 59 x 42 mm

VESA SOCKET TECHNICAL DATA
Thread: M5
Material: 1.5 mm steel
Recommended screw tightening torque: 3.60 Nm
Resistance to twisting: 8.47 Nm
Pull-out force: 3110 N

Other layouts available on request!

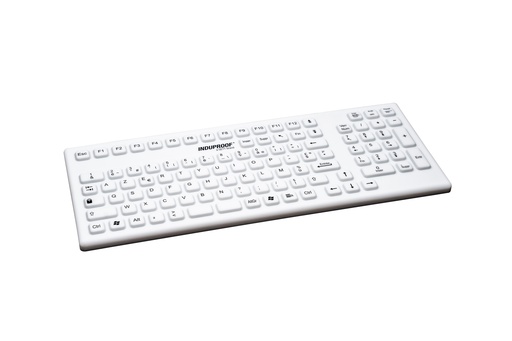

The TKG-106 features a full key set with numeric keypad and impresses with a pleasant typing feel at the highest level of protection. This makes this bestselling keyboard ideal for use in almost all hygiene-sensitive areas. The TKG-106 can be cleaned and disinfected all over. Thanks to its high-quality “Made in Germany” manufacture, it offers a long service life.

As part of the InduProof brand family, it is manufactured to the highest quality standards.

• Silicone-coated keyboard with 106 keys including numeric keypad
• Sealed to IP68, can be immersed in liquids
• Can be cleaned with water, soap, disinfectants or other cleaning agents
• Ergonomic design
• Flat keycaps for thorough cleaning
• Pleasant typing feel
• Antimicrobial NanoSilver-based additive prevents germs and pathogens from spreading
• Custom modifications possible

Product data:

Number of keys: 106
Switching technology: carbon contacts
Actuation force: 1.5 N
Key travel: 1.0 mm
Switching cycles: approx. 2 million (per key)
Protection class (max.): IP68
Housing material: silicone
Housing colour: white
Interfaces: USB
USB compatibility: complies with USB 2.0
Cable length: 2 m
Operating temperature: -25 °C to +75 °C
Storage temperature: -30 °C to +75 °C
Dimensions: 375 x 150 x 11 mm
Weight: approx. 760 g
Certifications: CE, FCC

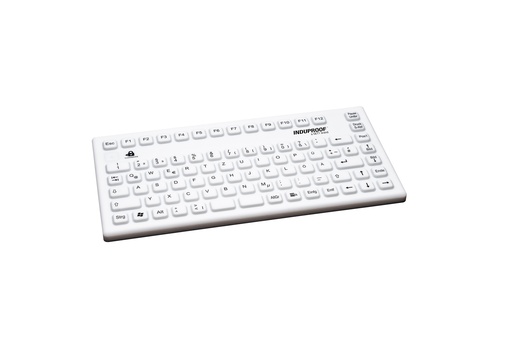

The TKG-086 impresses with compact dimensions and a pleasant typing feel while offering the highest level of protection. The keyboard is therefore ideal for use in hygiene areas where space is limited. It can be cleaned and disinfected all around. As part of the InduProof brand family, it is manufactured to the highest quality standards.

• Silicone-coated compact keyboard with 86 keys
• Sealed to IP68, can be immersed in liquids
• Can be cleaned with water and soap, disinfectants or other cleaning agents
• KeyLock function to lock the keys during cleaning
• Ergonomic design
• Flat key caps for thorough cleaning
• Pleasant typing feel
• Minimal space requirement thanks to compact dimensions

Product data:

Number of keys: 86
Switching technology: carbon contacts
Actuation force: 1.5 N
Key travel: 1.0 mm
Switching cycles: approx. 2 million (per key)
Protection rating (max): IP68
Housing material: silicone
Housing colour: white
Interfaces: USB
USB compatibility: complies with USB 2.0
Cable length: 2 m
Operating temperature: -25 °C to +75 °C
Storage temperature: -30 °C to +75 °C
Dimensions: 305 x 150 x 11 mm
Weight: approx. 685 g
Certifications: CE, FCC

The TKG-107 features a full key set with numeric keypad, an integrated touchpad and impresses with a pleasant typing feel while offering the highest level of protection. This makes the keyboard suitable for use in almost all hygiene-sensitive areas. It can be cleaned and disinfected all over. Thanks to its high-quality “Made in Germany” workmanship, it has a long service life.

As part of the InduProof brand family, it is manufactured to the highest quality standards.

• Silicone-coated keyboard with 107 keys including numeric keypad
• Integrated capacitive touchpad
• Sealed to IP68, can be submerged in liquids
• Can be cleaned with water, soap, disinfectants or other cleaning agents
• KeyLock function to lock the keys during cleaning
• Ergonomic design
• Flat keycaps for thorough cleaning
• Pleasant typing feel

Product data:

Number of keys: 107
Switching technology: carbon contacts
Actuation force: 1.5 N
Key travel: 1.3 mm
Switching cycles: approx. 1 million (per key)
Protection rating (max): IP68
Housing material: silicone
Housing colour: white
Interfaces: USB
USB compatibility: compatible with USB 2.0
Cable length: 2 m
Operating temperature: 0 °C to +70 °C
Storage temperature: -30 °C to +70 °C
Dimensions: 377 x 157 x 15 mm
Weight: approx. 913 g
Certifications: CE, FCC, IP protocol, warranty certificate, EMC protocol

Touchpad
Operating principle: capacitive
Dimensions: 60 x 42 mm

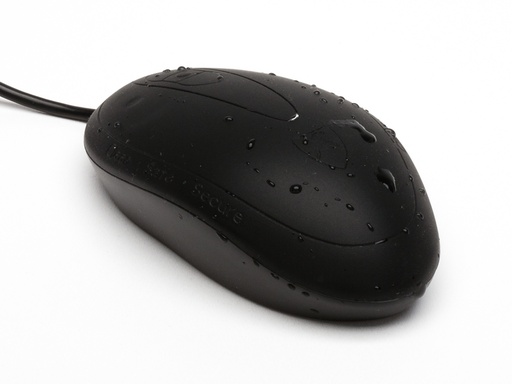

• Optical mouse with scroll function
• Sealed to IP68, can be immersed in liquids
• Electronics protected by silicone coating
• Waterproof USB protective cap

Product data:

Number of buttons: 3
Scroll function: scroll buttons
Switching cycles: approx. 10 million actuations
Operating principle: optical
Resolution: 800 dpi
Housing material: silicone rubber
Base plate: plastic
Protection rating: IP68
Interfaces: USB
Storage temperature: -15°C to +60°C
Cable length: approx. 1.83 m
Dimensions: 116 x 64 x 37 mm
Weight: 134 g
Certification: CE; FCC

Other layouts available on request!

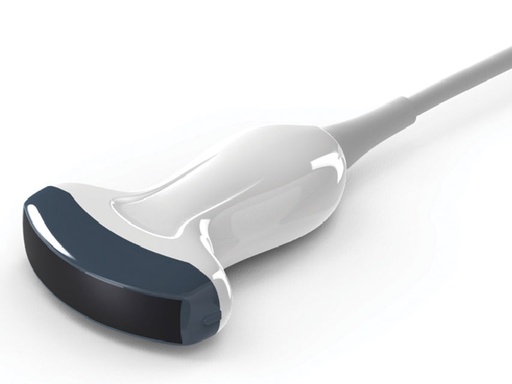

Probe for portable Chison ultrasound devices:



- Chison code: C3-A

- Scanning method: Convex
- Main frequency: 3.5 MHz

- Frequency range (MHz): 2.5 - 5.0

- Applications: Abdominal, OB & Gyn, Urology, Paediatric

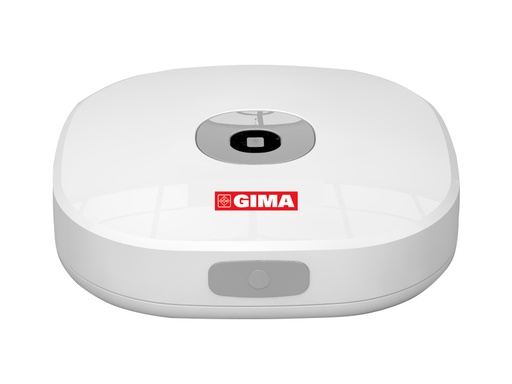

Gima Health Monitor 5 in 1 is a small and portable multifunction device for measuring 5 vital signs: body temperature, blood pressure, blood oxygen, ECG heart rate and respiratory rate.

Gima Health Monitor uses a Bluetooth connection to transmit data to a mobile phone app, where measurements are recorded and saved.

The device features infrared and pressure sensors for data acquisition.

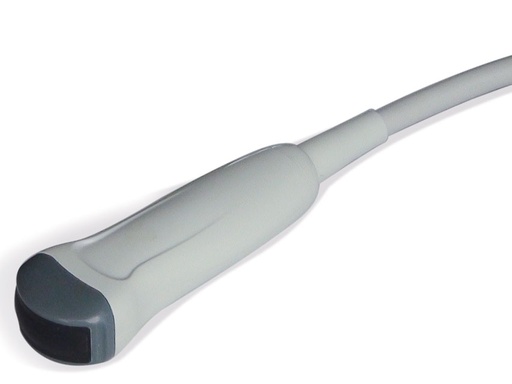

Probe for portable Chison ultrasound systems:



- Chison code: MC6-A

- Scanning method: micro-convex
- Main frequency: 6.0 MHz

- Frequency range (MHz): 4.5 - 8.0

- Applications: abdominal, paediatric

Accessories for Hospi Plus MPR - Ring for 2/3 L Flovac containers - Accessories

This is an accessory for the Hospi Plus MPR

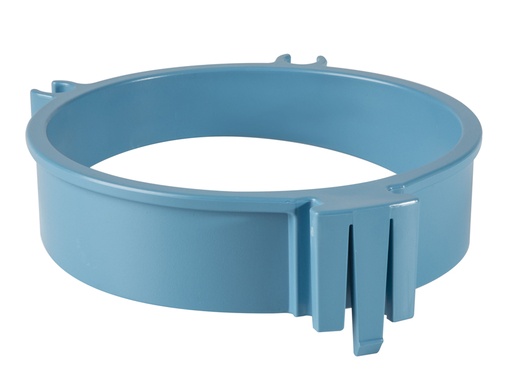

Accessories for Hospi Plus MPR - Ring for 2L autoclavable containers - Optional

This is an accessory for the Hospi Plus MPR.

ANTIBACTERIAL FILTER - 50 pcs (single-use)

CHISON ECO 1 VET ULTRASOUND with 1 probe connector (One probe included in the scope of delivery. Please make a selection)
- ultra-compact and ultra-lightweight, easy to transport
- latest LED screen technology; super-bright images enable easy viewing of scans even outdoors
- ergonomic monitor design, 30-degree rotation, adjustable
- ultra-long battery life of up to 2 hours for outdoor scanning
- one-button image enlargement to full-screen mode, easy viewing from a distance
- optimised workflow, easy operation, 6 keys to complete the diagnostic cycle

• Display modes and imaging
B, B / B, 4B, M, B / M, multi-frequency imaging

• Image processing
- compound imaging
- trapezoid imaging
- intelligent I-Image optimisation
- automatic PW tracking
- SRA (Speckle Reduction Algorithm)
- Chroma
- fully digital beamformer
- AIO (Automatic Image Optimisation)
- full-screen display

• User interface
- fold-up control panel and alphanumeric keyboard
- backlit keyboard for good visibility in dark rooms
- interactive backlighting
- indicator lights identify activated keys
- 8 TGC sliders for easy adjustment
- shortcut button for quick adjustment (custom hotkey)
- neat and clear keyboard layout, easy for the clinician to remember
- custom preset

• Optimised workflow, one key for:
- selecting the desired application with automatic preset
- automatically optimising the image (AIO)
- creating a report
- saving still images and CINE loop
- measuring
- printing to a PC printer (laser or inkjet) or video printer

• EASYVIEW™ archiving system
- image archive on hard drive and mobile USB storage
- 3 USB ports
- multiple image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (segment for auto review can be set) for 2D, M images
- cine storage capacity (256 frames / 10 s)

Technical data:

Dimensions and weight: 33.5 x 15.5 x h 35 cm (13.2" x 6.1" x h 13.8"); 6 kg
Display: 12" LED, high resolution 1,024 x 768
Power: AC 100–240 V – 50/60 Hz

Accessories:

1 probe depending on selection
12" high-resolution LED monitor – B & W
8G memory card
Hot key
PC printer connection
3 USB connections
1 Ethernet port
1 video output, 1 VGA output
1 footswitch connection
Full-screen display
Power supply unit
Standard software package
EasyView image archiving system
THI

SINGLE-USE TURBINE WITH INTEGRATED MOUTHPIECE

MIR code: 910004

For single-patient use only, economical and reliable, guarantees absolute hygiene as it is individually packaged.

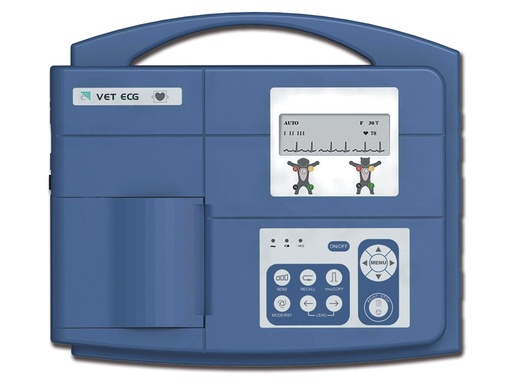

- Complete digital design
- LCD display waveforms, parameter configuration
- High-resolution thermal printer
- Built-in rechargeable Li-ion battery for 3 hours (AC/DC power supply)
- Fully digital filter to prevent baseline drift; interference suppression for AC and EMG
- Automatic baseline adjustment, optimised print position
- Selectable automatic/manual operation

Technical data:

• Leads: standard 7-lead
• Acquisition mode: single
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance: > 10 MΩ
• Filters:
- EMG filter 35 Hz (-3 dB)
- AC/DFT filter 50/60 Hz (-20 dB)
• Recording mode: Auto/Manual
• Safety standard: IEC I/CF
• Power supply:
- AC mains: 100-115-220-240 V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage = 14.4 V
- More than 3 hours continuous operation on battery power
• Thermal paper: 5 mm x 30 m
• Paper speed: 25/50 mm/s (± 3%)
• Dimensions: 300 x 260 x 75 mm
• Weight: 2.3 kg (with battery)
• Display: 192 x 64 pixel LCD
• External input/output:
- Input: = 100 kΩ; sensitivity: 10 mm/V ± 5%
- Output: = 100 kΩ; sensitivity: 1 mm/V ± 5%
• Communication interface: RS232

Accessories:

• 5-core veterinary ECG cable (Ø 4 mm, banana plug, IEC)
• Veterinary clip electrodes (set of 5, suitable for Ø 3–4 mm ECG cable)
• 1 paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: EN, IT – FR, ES, DE on request

HOSPI PLUS suction unit - 2 x 3 l - 230 V - with foot switch and flow changeover

New innovative range of high-vacuum suction devices with high flow rate, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacteria filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon canisters with ml graduations and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories, without the need for tools.
Equipped with five connections for rings of different diameters to accommodate canisters of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of which are braked, ensure perfect mobility.

Product data:

• Operating voltage: 220–230 V / 50–60 Hz or 110 V / 60 Hz
• Maximum suction: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• Instructions for use in GB, FR, IT, ES, DE.

HOSPI PLUS suction unit - 2 x 5 l - 230 V - with foot switch and flow changeover

New innovative series of high-vacuum suction devices with high flow, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacterial filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon containers with ml graduation and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories without the need for tools.
Equipped with five connections for rings of different diameters to hold jars of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of them with brakes, enable perfect mobility.

Product data:

• Operating voltage: 220-230 V / 50-60 Hz or 110 V / 60 Hz
• Maximum suction performance: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• User manual in GB, FR, IT, ES, DE.
