Option for PowerCube-Body+ measurement station (25166-01)

Multibreath FRC N2 washout measurement based on the principle of 100% oxygen inhalation (wash-in).
The oxygen is supplied via a standard hospital oxygen connection.
Using the FRC washout method, FRC is determined by a gas wash-in method while the Lung Clearance Index (LCI) is determined at the same time.

Important note:

FRC is based on the Diffusion option (25168-01)

Included in the scope of delivery:

1 x O2 connection hose NIST / DIN13260-2 5 m

Advanced PFT system including spirometry, Rocc and Pmax.
PC package and trolley not included in the scope of delivery, available as optional extras.

Option for item 25177-01

Measurement option for PowerCube-Body+ measuring station (25166-01)

Option for determining airway resistance using the occlusion pressure method

Measurement option for PowerCube-Body+ measuring station (25166-01)

Measurement options
based on the rhinomanometry option (25158-01)

- High-precision spirometry and flow/volume curves based on the GANSHORN ultrasound measurement method
- No warm-up time, no calibration during operation
- Capno-volumetry, emphysema test and dead space analysis optionally possible without an additional gas analyser
- The perfect hygiene concept for an optimal workflow and patient safety
- Modern, ergonomic design
- Extremely high measurement resolution (1,000 Hz)

Scope of delivery:

1 pc SpiroScout base station incl. SpiroScout sensor
1 pc spiral cable for SpiroScout sensor
1 pc USB cable for SpiroScout base station
1 pack nose clip, basic (VE28)
1 pack disposable plastic breathing tube (ScoutTube) (VE50)
1 pc LFX software for Windows
1 pc standard laptop preconfigured for LFX software
1 pc HP inkjet printer
1 pc transport case
1 pc operating instructions for SpiroScout

Highly precise spirometry and flow/volume curves
based on the GANSHORN ultrasound measurement method
- No warm-up time, no calibration during operation
- Capno-volumetry, emphysema test and dead space analysis possible optionally without an additional gas analyser
- The perfect hygiene concept for an optimal workflow and patient safety
- Modern, ergonomic design
- Extremely high measurement resolution (1,000 Hz)

Scope of delivery:

1 pc. SpiroScout base station incl. SpiroScout sensor
1 pc. spiral cable for SpiroScout sensor
1 pc. USB cable for SpiroScout base station
1 pack. nose clip, basic (VE28)
1 pack. disposable plastic breathing tube (ScoutTube) (VE50)
1 pc. LFX software for Windows
1 pc. standard laptop preconfigured for LFX software
1 pc. operating instructions for SpiroScout

Delivery restriction:
This product can only be shipped within Germany; incoming orders with shipping abroad will be cancelled.
In some cases, shipping abroad may be possible; however, this must be arranged on the basis of an individual quotation –
please contact us
for this.
Filling customers’ cylinders can be carried out via the ring exchange system on a 1:1 basis (empty for full).

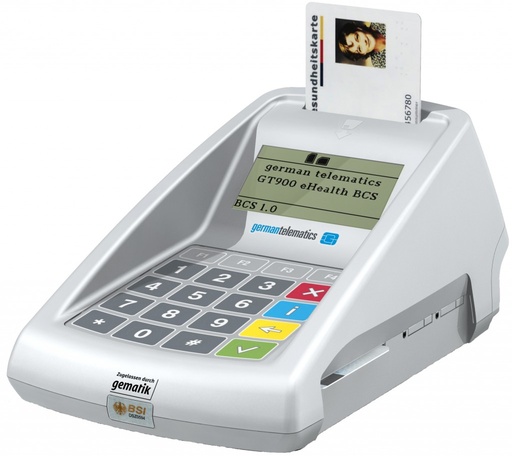

Only approved eHealth terminal manufacturer with disinfectable membrane keypad

- very large, fully graphical display with backlighting for optimal readability
- one-handed eGK/KVK slot
- ergonomic viewing angle to the display to prevent reflections from ceiling lighting in the display window
- one-handed HBA slot, plus two SMC card slots
- one of the most compact eHealth terminals on the market, available in three design variants (white, black or silver)
- Easy-Clean: no gaps or ledges for dust or crumbs on the device keypad
- elegant privacy shield and security for PIN entry
- USB, network and serial interface on-board
- disinfectable membrane keypad to prevent transmission of pathogens via skin contact
- meets all hygiene requirements of the Occupational Health and Safety Act

Technical data

CPU / processor
32-bit high performance RISC / 200 MIPS

Operating system
GT Linux 2.6 X

Memory
32 MB SDRAM 8 MB Flash

Interfaces
USB, LAN, serial; 1 x Full Speed Host, USB 2.0 compatible; 1 x Full Speed Client, USB 2.0 compatible; RJ45 10/100 Mbit/s autonegotiation, Auto MDI/MDIX; RS 232 (9-pin)

Chip cards
eGK, HBA, SMC, SM-KT, KVK, ISO 7816 Class A, B and C cards (5V, 3V, 1.8V)
Support for protocols S=8, S=9, S=10, T=1

Contact units
1 chip-card contact unit (ISO 7816 ID-1) with lowering, card-protecting contacts (eGK and KVK) >200,000 insertion cycles (ID-1 contact unit)
1 chip-card contact unit ISO 7816 ID-1 (HBA)
2 contact units (ISO 7816 ID-000) for SMC-A, SMC-B and SM-KT, automatic card detection with short-circuit and overheating protection

User interface
Large graphical display with backlighting for user guidance
- high-contrast graphics display (monochrome, white backlit)
- 128 x 64 pixel pictograms for status display and for the status message “secure state”
- 20-key input panel for secure PIN entry and navigation
- shielded PIN entry field
- easy-care materials meet high hygiene and clinical requirements
- only eHealth card terminal on the market with a membrane keypad
- easy to disinfect as there are no gaps
- meets all hygiene requirements

Certifications and approvals
Common Criteria EAL3+ certification and confirmation according to SigG by the Federal Office for Information Security, SICCT (in preparation), eHealth-BCS certification by gematik, CE, TÜV IT, MKT+, chip cards (EMV Level 1/ISO7816)

Security
BSI seal for quick visual inspection; drill-through protection in the housing; cryptographically secure firmware update possible for level SICCT (eHealth)

Dimensions and weight
190 x 110 x 90 mm, 670 g without power supply

Colour
White, black or silver

Power supply
Plug-in power supply: input: 100–240 VAC / 50–60 Hz / 5 VDC / 1 A

Card reader
2 chip-card readers for eGK, KVK and HBA; 2 SMC slots

Signature
Prepared for comfort and batch signature

Environmental conditions
Operation: 0° to +50°C; storage: -20° to +60°C; relative humidity: 5% to 95% (non-condensing)

Operating systems
Windows® 98SE, ME, NT, 2000, Server 2003, XP, Vista, MacOSX (in preparation), Linux, Solaris (in preparation)

Compatibility
KVK terminal; MKT/MKT+ terminal; eHealth-BCS terminal; SICCT terminal on the connector (after firmware update)

Country of manufacture
Federal Republic of Germany

Environmental guidelines
RoHS, WEEE

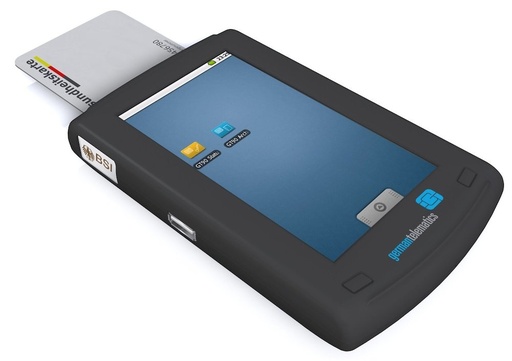

Only mobile chip card terminal with a disinfectable touchscreen

easy to use / disinfectable / multifunctional

- simultaneous reading of eGK / KVK and HBA possible
- inserted cards are read automatically
- user-friendly 4.3” touch display
- specification-compliant display of all a patient’s emergency data possible
- long standby times (up to 300 h)
- replaceable battery
- mobile signature planned for expansion stage 2
- mobile PVS possible
- weight: light at 179 g
- easy synchronisation with your computer
- up to 32 GB data storage with additional Micro SD card
- many useful PVS apps available on request
- connected to all common practice management systems
- intended for the basic rollout with gematik and BSI certification

Technical data of the GT90 mobile card terminal

Dimensions / weight
8 cm x 13 cm x 1.6 cm / approx. 179 g (incl. battery)

CPU / processor
ARM / 32-bit high performance RISC / 293 MIPS @ 266 MHz

Operating system
Android 2.1 / Linux 2.6.x

Memory
RAM: 64 MB SDRAM
FLASH: 256 MB Flash
External FLASH memory: 1 x MicroSD HC up to 32 GB (microSD card reader - hinge type)

USB interfaces
1 x Full Speed Host / USB 2.0 compatible / Type A
1 x Full Speed Client / USB 2.0 compatible / Type MicroB

Smart cards
Supported types:
KVK, eGK, HBA, SMC, SM-KT,
ISO 7816 Class A, B and C cards (5 V, 3 V, 1.8 V)
- support for protocols S=8, S=9, S=10, T=0,
T=1
Contact units:
1 x smart card contact unit in accordance with ISO 7816 ID-1 for eGK or KVK
1 x smart card contact unit in accordance with ISO 7816 ID-1 for HBA
1 x contact unit in accordance with ISO 7816 ID-000 for SMC-A or SMC-B
> 100,000 insertion cycles for ID-1 contact units, especially eGK/KVK
- automatic card detection with short-circuit and
overheat protection

Touch-enabled display
4.3” TFT display (resistive touchscreen)
- resolution: 480xRGBx272
- energy-saving LED backlight
- finger operation possible
- stylus available as optional accessory

Housing
compressed, 2-part, inseparable ABS
plastic housing
- disinfectable
- colours: white or black
- battery compartment cover with clip mechanism
- versions with high-quality high-gloss finish possible

Switches
1 x ON/OFF switch with sleep function
2 x control buttons

Optical & acoustic signalling interfaces
1 x multi-colour LED (e.g. red/green) to indicate operating and charging status
1 x built-in speaker + microphone

Power supply
replaceable lithium polymer battery
- charging in the device via Mini USB port

The new wireless glass keyboard from Cleankeys®, CK4W for short, impresses with its elegant design, comfortable typing feel and easy cleaning and disinfection.

Cleankeys® stands for functional designer keyboards with a glass touch surface. In addition to the design, sophisticated high-end features are what characterise these keyboards, making them a must-have for any premium and hygiene-sensitive environment. Cleankeys® products enjoy an excellent reputation in demanding laboratories, specialist practices, hospitals, cosmetic facilities, design offices and private households.

- The fully sealed Gorilla® Glass surface with IP65 protection rating enables quick and easy cleaning with a single wipe, ensuring freedom from germs and pathogens.
- During cleaning, key functions can be disabled using a Keylock button.
- A cleaning indicator reminds the user after 10,000 keystrokes that cleaning is due, ensuring a high level of hygiene.
- The capacitive keys are virtually wear-free and therefore have a long service life. As no pressure is required to actuate the keys, the CK4W is also well suited for people with impairments of the tendons and joints.
- The key sensitivity can be adjusted in several levels to suit the user’s needs for comfortable operation.
- The keyboard can be mounted to standardised support arm systems via VESA mounts on the housing.
- When the status button is pressed, the LED display shows the battery charge level in eight stages, reducing the likelihood of downtime.

Product data:

Design: desktop keyboard
Switching technology: capacitive
Number of keys: 103
Interface: USB (USB dongle, 2.4 GHz)
USB compatibility: compliant with USB 2.0
Cursor control: touchpad
Protection rating: IP65
Impact resistance rating: IK10
Actuation force: 0 N
Operating temperature: 0 °C to +45 °C
Storage temperature: -10 °C to +45 °C
Housing material: plastic
Surface: 0.8 mm glass
Keyboard dimensions: 470 x 167 x 25.4 mm
Special keys: Keylock, Sensitivity, Volume
Approvals: CE, FCC Part 15 Subpart B
System requirements: Win®, MacOS® and Linux® *

* if the operating system and hardware meet the requirements of USB 2.0 compatibility

Further layouts available on request!

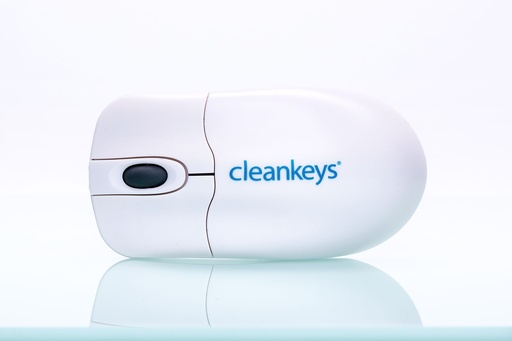

Interfaces
• 2.4 GHz wireless technology for mouse
• USB for charging station

EMI - RFI
Complies with FCC regulations for
Class B computer input devices

Protection rating
Sealed to IP68 (mouse body only)
• Can be immersed in liquids
• Can be cleaned with water and soap, disinfectants or other cleaning agents.

Further information can be found in the user manual


Product data:

Length: 117 mm
Width: 65 mm
Height: 37.5 mm
Weight: 80 g

Material:
Mouse body: ABS
Scroll wheel: silicone
Colour: white

Mouse buttons: two
Resolution: 800 DPI, LED
Conformities: NEMA 4x, RoHS, WEEE, CE, FCC
Operating systems: compatible with Mac / Windows
operating systems

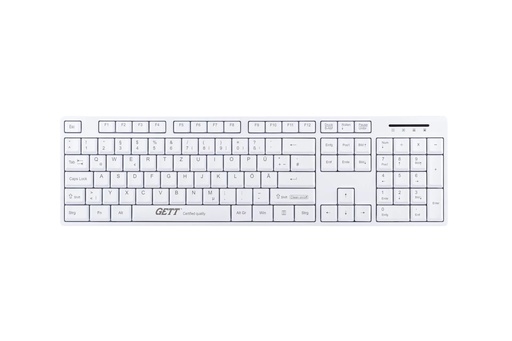

The CleanType® Easy Basic is a high-quality plastic keyboard that is easy to clean thoroughly thanks to its water and dust resistance, making it ideal for use in hygiene-sensitive areas such as hospitals, clinics, medical practices, laboratories or pharmaceutical companies.

On request, the CleanType® Easy Basic can be supplied with any desired country layout, even in small quantities.

- Surface with nano-silver additive: Additional protection through the active destruction of microbial cell nuclei.
- IP68 protection rating: The keyboard is protected against the ingress of water and dust, enabling fast, easy and thorough cleaning.
- Keylock function: Key functions can be deactivated, for example during cleaning, to prevent accidental inputs.
- Ergonomic design: A slightly angled tilt of approx. 4 degrees ensures comfortable, strain-free operation.
- Shortened USB connection cable with protective cap: For cleaning, the keyboard can simply be unplugged from the PC. A USB extension cable is included.

Product data:

Number of keys: 105
Design: Desktop
Switching technology: Closed switch contact membrane
with silicone plungers
Housing material: Plastic with
antimicrobial additive
Service life: approx. 2 million (per key)
Colour: white or black
Interfaces: USB
Protection rating: IP68
Operating temperature: 0°C to +55°C
Storage temperature: -15°C to +60°C
Dimensions: 441 x 125 x 23 mm
Weight: 449 g
Certifications: CE, FCC

* provided the operating system and hardware meet the requirements for USB 2.0 compatibility

Further layouts available on request!

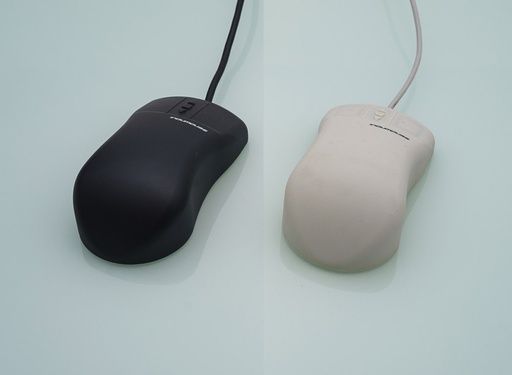

• Ergonomic functionality with two mouse buttons and scroll wheel
• Symmetrical housing shape – therefore suitable for right- and left-handed users
• Completely waterproof and dustproof IP68 plastic mouse
• Optical sensor with a resolution of 1000 dpi
• Easy to clean and disinfect
• Silicone cap to protect the USB connector from splash water during cleaning
• Additional certifications:
- EMC certification to medical standard: EN 60601-1-2 Edition 4
- EMC certification to industrial standard: EN IEC 61000-6-4 (emissions) and EN IEC 61000-6-2 (immunity)
P

The TKH-MOUSE-GCQ-MED-AM-SCROLL-LASER-IP68-WHITE-USB features an ergonomic design and impresses with a pleasant tactile feel while offering the highest protection rating (IP68). It can therefore be thoroughly cleaned and disinfected. Thanks to a nano-silver additive, its surface actively combats germs and bacteria. The mouse is a product of the GCQ series from GETT.

• Antimicrobial silicone mouse with click-scroll function
• NanoSilver additive with antibacterial properties
• Pleasant actuation feel
• Completely waterproof and dust-tight
• Easy to clean and disinfect
• USB connection fitted with a protective cap
• EN60601-1-2 certified*


Product data:

Number of buttons: 5
Switching cycles: 2 million (per button)
Tracking technology: Laser
Protection rating: IP68
Resolution: 1000 dpi
Housing material: Silicone
Base plate: Silicone
Housing colour: white
Interface: USB
Operating temperature: -30 °C to +70 °C
Storage temperature: -40 °C to +80 °C
Scroll function: click-scroll buttons
Weight: 155 g
Dimensions: 105 (L) x 60 (W) x 37 (H) mm
Certifications: CE, FCC, EN60601-1-2*

* EN 60601-1-2 defines the requirements for electromagnetic compatibility (EMC), i.e. the ability of a medical device to operate satisfactorily in its electromagnetic environment without emitting impermissible electromagnetic interference into that environment.

The new product from GETT: the InduMouse® Pro works thanks to a special sensor even on surfaces where conventional mice cannot operate — for example on glass, acrylic or steel. No mouse mat is required. The advantage is obvious: a hygiene mouse that can be used wherever other mice fail, completely without a mat.

But the InduMouse® Pro can do even more: its high IP68 protection rating enables thorough cleaning and disinfection. A nano-silver additive in the silicone housing provides additional protection against germ build-up. This mouse therefore actively helps prevent the spread of pathogens and maintains a high level of hygiene protection.

• PC mouse made of silicone that works on glass and transparent surfaces
• Ergonomic shape with two mouse buttons and three-button scroll function
• Resolution adjustable in 8 levels from 400 to 1600 dpi
• Pleasant actuation feel
• Symmetrical housing shape, ideal for right- and left-handed users
• Completely waterproof and dustproof
• Easy to clean and disinfect
• Nano-silver additive inhibits the growth of germs and pathogens
• Protection of the plug against splash water during cleaning thanks to USB protective cap
• Meets infection control requirements
• Compliant with DIN EN 60601-1-2:2016 (IEC 60601-1-2:2014 4th Edition)

Product data:

Number of buttons: 2 mouse buttons, 3 scroll buttons
Switch technology: short-travel keys
Actuation force: 1.5 N
Travel: 0.3 mm
Service life: approx. 3 million actuations
Protection rating: IP68
Tracking: infrared
Resolution: 400 to 1600 dpi (adjustable in steps of 200)
Housing: silicone rubber
Base plate: plastic
Housing colour: white
Interface: USB
Operating temperature: 0 °C to +40 °C
Storage temperature: -40 °C to +85 °C
Scroll function: via 3 scroll buttons
Weight: 150 g
Cable length: approx. 2 m
Dimensions: 115 x 61 x 39 mm
Certifications: CE, FCC, warranty certificate

The InduProof Advanced features a full key set with numeric keypad, an integrated mouse button (mini joystick) and impresses with a pleasant typing feel combined with maximum protection. Thanks to its robust design, it is ideally suited for use in demanding, hygiene-sensitive areas such as industrial food and beverage production. It can be cleaned and disinfected all around. With its high-quality “Made in Germany” workmanship, it offers a long service life.

As part of the InduProof brand family, it is manufactured to the highest quality standards.

• Integrated mouse button
• VESA M5 threaded holes (spacing 75 x 75 mm) for mounting to support systems
• Sealed to IP68, can be immersed in liquids
• Good mechanical and chemical resistance thanks to special surface sealing (coating)
• Compliant with DIN EN60601-1-2-2006 (Directive 93/42/EEC, Annex IX)
• Can be fully cleaned and disinfected
• Robust, durable silicone material

Product data:

Number of keys: 104
Switching technology: carbon contacts
Actuation force: 1.5 N
Actuation force (Num): 1.1 N
Key travel: 1.4 mm
Service life: 2 million actuations (per key)
Protection rating (max): IP68
Material (housing): silicone rubber
Material (base plate): plastic
Housing colour: grey, black
Interfaces: USB
USB compatibility: USB v1.1/2.0 compliant
Operating temperature: -20 °C to +60 °C
Storage temperature: -25 °C to +70 °C
Weight: 735 g
Dimensions: 340 x 165 x 18.4 mm
Certifications: CE, FCC

TECHNICAL DATA MOUSE BUTTON
Operating principle: Hall sensor
Resolution: 800 dpi

TECHNICAL DATA VESA SOCKETS
Thread: M5
Material: 1.5 mm steel
Recommended screw tightening torque: 3.60 Nm
Resistance to twisting: 8.47 Nm
Pull-out force: 3110 N

Other layouts available on request!
