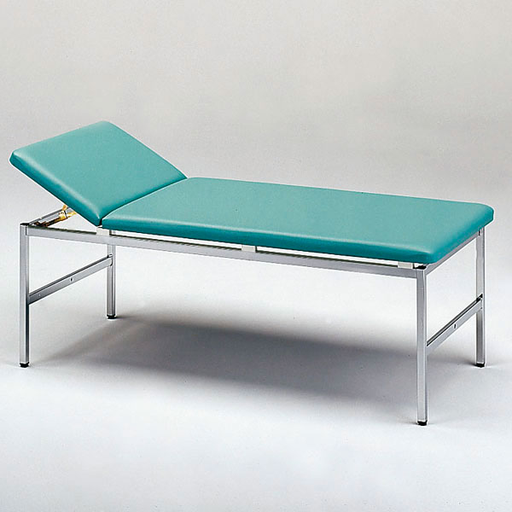

The SCHMITZ ECG examination couch is an 800 mm wide couch which, thanks to its large surface area, is ideal for electrocardiography. The frame of the couch is made of square-section steel tubes powder-coated to RAL 9007 (aluminium grey). The cross bracing ensures a safe, stable stance. It also features fold-in pairs of feet and a 2-part, 70 mm thick upholstery. The couch is upholstered in gatten Classic artificial leather. In addition, the ECG couch has a head section adjustment of +40°.

Product data:

Frame: RAL 9002 grey white
Height: 680 mm
Width: 800 mm
Length: 1950 mm (head section: 500 mm, body section: 1450 mm)
Head section adjustment: +40°
Load capacity: up to 225 kg

The SCHMITZ ECG examination couch is an 800 mm wide couch which, thanks to its large surface area, is ideal for electrocardiography. The couch frame is made of square tubing powder-coated to RAL 9007 (aluminium grey). The cross bracing ensures a secure and stable stand. It is also characterised by fold-in leg pairs and 2-piece, 70 mm thick upholstery. The couch is upholstered in gatted Classic artificial leather. In addition, the ECG couch features a backrest adjustment of up to +40°.

Product data:

Frame: RAL 9006
Height: 680 mm
Width: 800 mm
Length: 1950 mm (head section: 500 mm, body section: 1450 mm)
Backrest adjustment: +40°
Load capacity: up to 225 kg

The height-adjustable examination couch model 211.410 from SCHMITZ can be electrically adjusted via a foot switch. The electric height adjustment range is from 500 to 920 mm. The head section can be adjusted from -20° to +40° using gas springs. The couch features 70 mm thick, 2-part upholstery with smooth leather. The frame is powder-coated to RAL 9007 (grey aluminium). The lower section cover is made of silver-grey plastic. In addition, the examination couch has 4 non-electrically conductive levelling feet. It is supplied with a 2.4 m connection cable incl. power supply unit.

The lock switch 200030 for activating and deactivating the foot control is now part of the standard specification. When used in DE, A, CH, the lock switch is mandatory.

Product data:

Height: 500 to 920 mm
Width: 650 mm
Length: 1950 mm (head section: 500 mm, body section: 1450 mm)
Load capacity: up to 225 kg
Head section adjustment: -20° to +40°

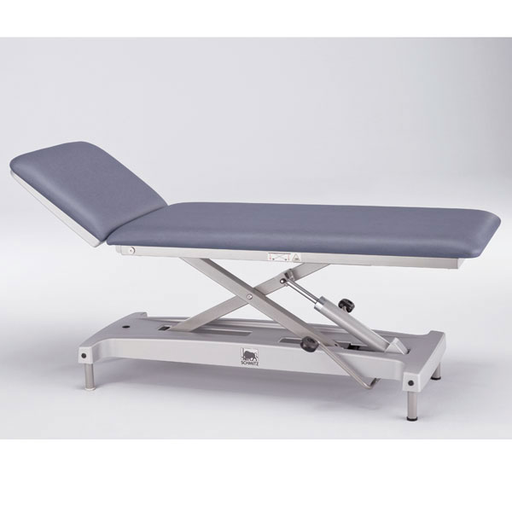

Height-adjustable examination couch model 211.410/211.411
- Hydraulic height adjustment via foot pump lever from 500 to 920 mm
- Head section adjustable via gas spring from -20° to +40°
- 70 mm upholstery, 2-section
- Frame powder-coated in RAL 9002, 9006 or RAL 9007
- Lower section cover made of plastic, silver-grey
- With 4 levelling feet, non-electrically conductive
- Safe working load: 225 kg
The interlock switch 200030 for activating and deactivating the foot control is now part of the standard specification. When used in DE, A, CH, the interlock switch is mandatory.

The frame coating, like the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

Height-adjustable examination couch model 211.410/211.411
- Hydraulic height adjustment via foot pump lever from 500 to 920 mm
- Head section adjustable by gas spring from -20° to +40°
- Upholstery 70 mm, 2-piece
- Frame powder-coated in RAL 9002, 9006 or RAL 9007
- Lower section cover made of plastic, silver-grey
- With 4 levelling feet, non-electrically conductive
- Safe working load: 225 kg
The locking switch 200030 for activating and deactivating foot operation is now included as standard. When used in DE, AT, CH, the locking switch is mandatory.

The frame finish, as well as the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

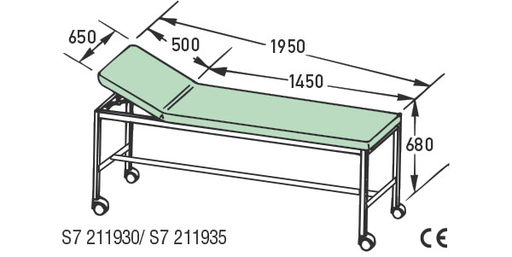

Frame made of square tubing, with cross and longitudinal bracing, 4 swivel castors Ø 125 mm, 2 of which with total brake, electrically conductive, 1 castor with directional lock, with wall bumpers Ø 150 mm, 2-piece upholstery 70 mm,
head section adjustment +40°.
Safe working load: 225 kg.

The frame finish, like the artificial leather upholstery (Comfort/Classic), is available in almost any colour.
If you have questions about additional colours, please contact our friendly service team.

Frame made of square steel tubing with transverse and longitudinal bracing; 4 swivel castors Ø 125 mm, including 2 castors with total brake, electrically conductive; 1 castor with directional lock; with wall buffers Ø 150 mm; 2-piece upholstery 70 mm.
Head section adjustment up to +40°.
Safe working load: 225 kg.

The frame finish, like the artificial leather upholstery (Comfort/Classic), is available in almost any colour.
If you have questions about additional colours, please contact our friendly service team.

Frame made of square tubing with cross and longitudinal braces; 4 swivel castors Ø 125 mm, including 2 castors with total brake, electrically conductive; 1 castor with directional lock; with wall guards Ø 150 mm; 2-piece upholstery 70 mm.
Head section adjustment up to +40°.
Safe working load: 225 kg.

The frame finish, like the (Comfort/Classic) synthetic leather cover, is available in almost any colour.
If you have questions about further colours, please contact our friendly service team.

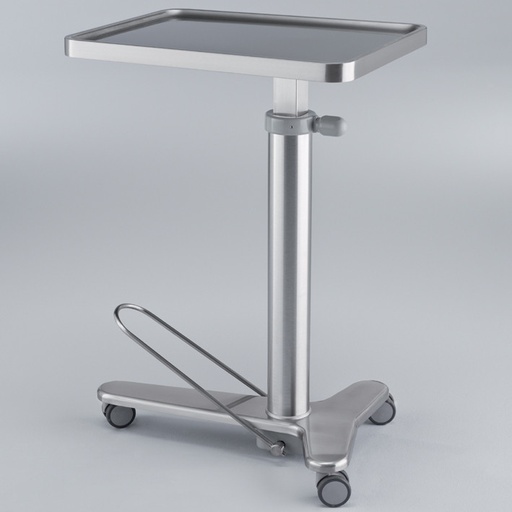

The instrument Mayo stand from SCHMITZ features a foot pump for height adjustment via a foot pedal from 950 to 1350 mm. Seamlessly deep-drawn tabletop made of 18/10 stainless steel, 700 x 500 mm with a 15 mm high rim, removable, 360° rotatable and lockable in any position; edges and corners rounded. Upright tube and support frame made of 18/10 stainless steel; base with 18/10 stainless steel cladding; closed twin castors made of plastic Ø 75 mm, ball-bearing, electrically conductive, rustproof. Safe working load in any tabletop position: 30 kg.

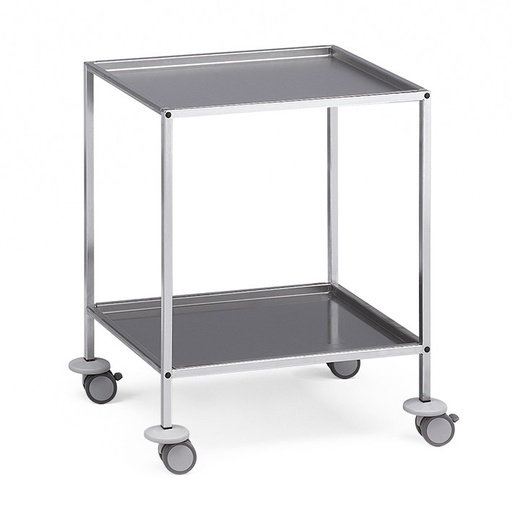

Instrument table
Frame made of 18/10 chrome-nickel stainless steel, tubular frame designed as a protective gallery, 600 x 450 mm table tops made of chrome-nickel stainless steel, removable, table height 800 mm, Ø 75 mm plastic twin castors, electrically conductive, stainless, abrasion-resistant, contact-discolouration-free, thread guard, 2 castors with brakes, 4 wall-deflector rollers, without drawer. Safe working load per table top: 50 kg.

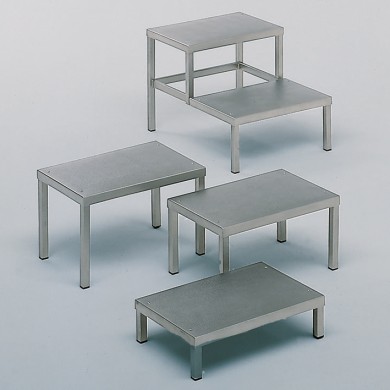

Frame made of 18/10 stainless steel, two-step, tread plates ribbed, made of 18/10 stainless steel, electrically conductive plugs. Safe working load: 185 kg

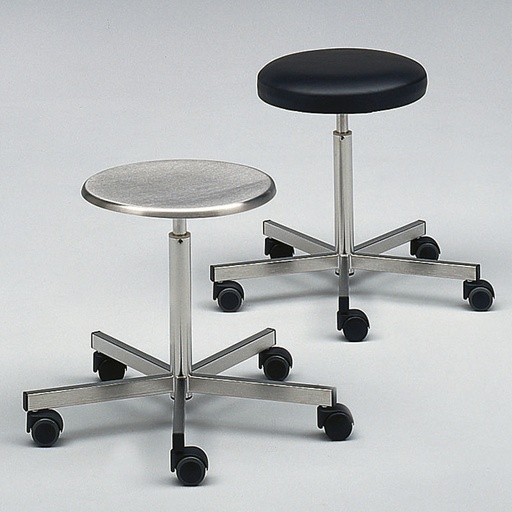

The SCHMITZ operating theatre stool comes with a 5-star base made of 18/10 chrome-nickel stainless steel. Special features include electrically conductive twin castors made of plastic, Ø 50 mm, and an electrically conductive black upholstery. The round seat is padded and has a diameter of 350 mm. Height adjustment is via a threaded spindle. A locking mechanism secures the spindle to prevent it from unscrewing.

Product data:

Height adjustment: from 485 to 655 mm
Working load: 135 kg
