For pressure and gravity infusions
The BD R 87 P infusion set is suitable for use with infusion pumps.
• Sharp spike
- Easy, trouble-free insertion
- Complete emptying with no residue
• Handy drip chamber design with transparent viewing window
• Free-standing, elongated drip former for consistent drop formation, 20 drops = 1 g ± 0.1 g (aqua dest.)
• Flexible pump chamber with high fluid level, quick and easy to adjust
• 15 µm filter to protect against coarse particles
• Roller clamp in DIN colour “orange” with spike holder for greater safety during disposal
• Pressure-resistant up to 2.0 bar: suitable for use with infusion pumps (compatibility list available on request)
• BD Luer-Lock™ connector
• Optionally with pre-assembled backflow preventer for safe use with infusion pumps
• Bacteria-tight venting, closable with Euro flap
• EO sterilised
• Sterile individual pack, single-use, latex-free

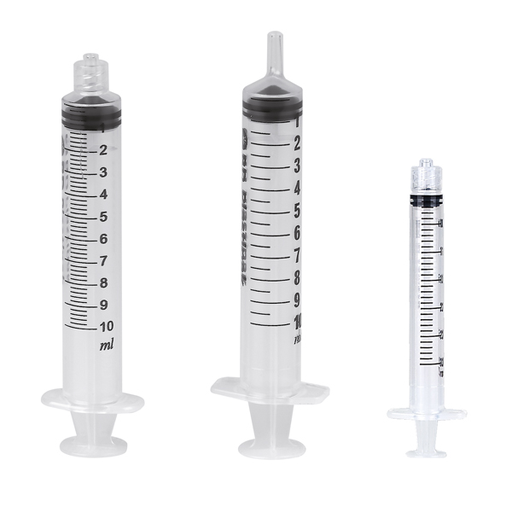

• 3-piece syringes with a tightly sealing double sealing ring

• The Luer/BD Luer-Lok™ tip ensures a secure connection between syringe and needle

• Smooth and even gliding of the plunger

• Accurate reading of the volume

• Syringe barrel and plunger rod made of polypropylene

• Silicone oil plunger lubricant

• Products I3 309628 and I3 305959 are gamma-sterilised. All other products are EO-sterilised.

• Sterile individual packaging, single use, latex-free, PVC-free

THE SAFETY SOLUTION FOR NURSING AND CARE HOMES

Needlestick injuries can be prevented!

BD SafeAssist™ is a safety pen needle with an automatic protective shield:
Fits all standard pens for diabetes therapy
Available in 5 mm and 8 mm lengths
After lifting the pen away from the skin, the patient-side shield locks into place.
A red indicator ring confirms that the safety mechanisms have been activated.

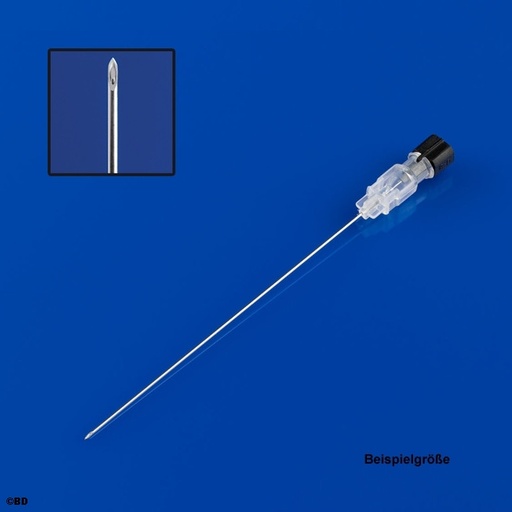

Needles for spinal anaesthesia
- Quincke bevel
- rapid cerebrospinal fluid backflow
- finger grips for secure needle guidance
- transparent Luer lock hub
- colour-coded stylet hub

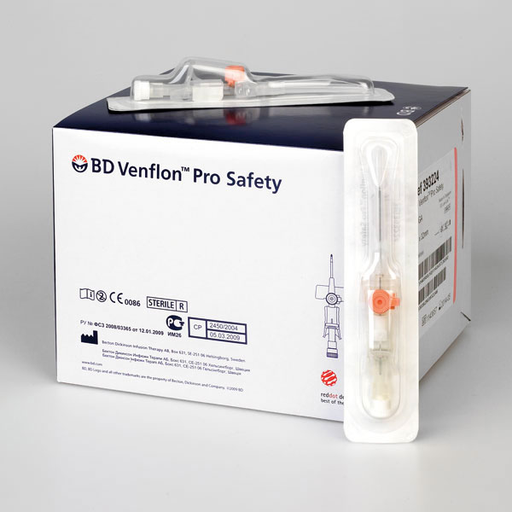

Indwelling venous catheter with injection port.
•Injection port with securely closing cap
•Removable Luer lock closure plug
•Flexible wings for secure fixation
•Latex-free
•PVC-free
•Individually sterile packed

- Quincke bevel minimises puncture trauma
- defined angular deviation between stylet and primary bevel
- safety lock between cannula hub and stylet
- latex-free
- silicone-free

- Infusion sets for pressure and gravity infusions.

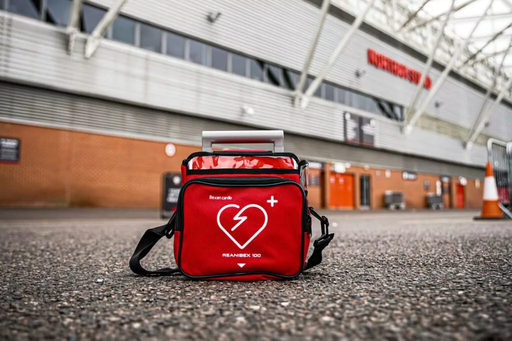

Carrying case for the Bexen Cardio Reanibex 100 AED.

Carrying case for item 25549-01 / 25550-01

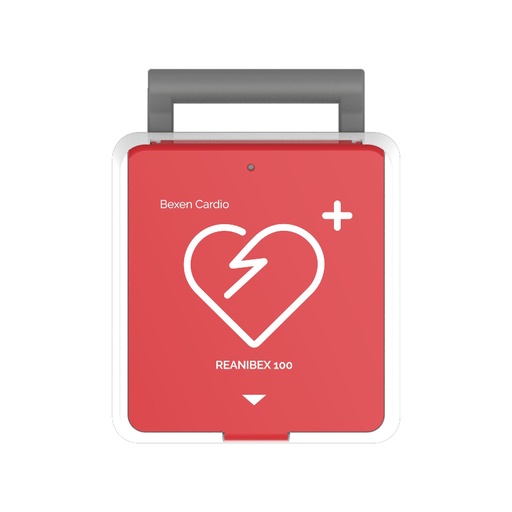

The BEXEN CARDIO Reanibex 100 AED is an automated external defibrillator designed for rapid use in the event of cardiac arrest. It is user-friendly, with intuitive voice prompts and visual aids that guide even laypersons through the rescue process. Thanks to its robust design, it is ideal for public areas, schools and businesses. Lightweight and portable, it provides reliable support in emergency situations.

Clear instructions
Voice prompts guide the user through the entire procedure. Volume adjusts to ambient noise.

Connectivity
Sigfox and Wi‑Fi transmission for status alerts regarding the device and accessories, as well as for geolocation.

Semi- or fully automatic
In the semi-automatic version, the user must press the shock button to deliver the shock. In the fully automatic version, the shock is delivered automatically when required.

Faster shock delivery
Switches on automatically as soon as the device lid is opened, with pre-connected electrodes and pre-charged for faster shock delivery.

Self-test
Daily automatic self-test ensures continuous readiness of the device and accessories.

CPR support
Metronome and real-time rate feedback for effective chest compressions.

GENERAL
Dimensions:
Without handle: 217 mm (width) x 235 mm (depth) x 96 mm (height)
With handle: 217 mm (width) x 285 mm (depth) x 96 mm (height)

Weight: device with disposable electrodes and battery: less than 2 kg

AED DEFIBRILLATOR
Operating mode: semi- or fully automatic
Waveform: typically biphasic (BTE) depending on patient impedance
Energy output: 150–200 joules for adult patients and 50–90 joules for children
Charge time: 0 seconds – pre-charged
Electrode types: pre-connected disposable electrodes for adults and children
Shockable rhythms: ventricular fibrillation and ventricular tachycardia
CPR support: metronome with real-time feedback on chest compression rate
CPR guidelines: factory-set guideline 2015 (ERC/AHA) and its new version from 2017

DATA STORAGE
Internal data memory: 10 treatment events with at least 15 hours of ECG signal and events
USB port: for PC connection
Data review: Reanibex Data Net web application for downloading, replaying, saving and reviewing recorded treatment events

BATTERY
Type: disposable battery LiMnO2 4.2 Ah, 12 V
Capacity: more than 350 shocks at 200 J or more than 36 hours of monitoring at 25 °C

ENVIRONMENT
Operating temperature: from 0 °C to 50 °C
Storage temperature: from -25 °C to 70 °C
Humidity: 0 to 95%
Altitude: 0 to 5,000 m
Resistance to solids/liquids: IP55
EMC: EN 60601-1-11:2015 and EN 60601-1-2:2015
Vibration / shocks: EN 60601-1-11:2015

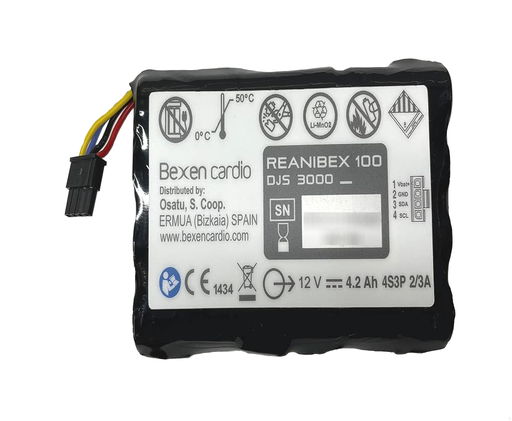

Replacement battery for the Bexen Cardio Reanibex 100 AED.

Replacement battery for item 25549-01/25550-01

Replacement electrodes for the Bexen Cardio Reanibex 100 AED.

Replacement electrode for item 25549-01 / 25550-01

The BEXEN CARDIO Reanibex 100 AED is a semi-automatic external defibrillator designed for rapid use in the event of cardiac arrest. It is user-friendly, with intuitive voice prompts and visual aids that guide even untrained users through the rescue process. Thanks to its robust design, it is ideal for public places, schools and businesses. Lightweight and portable, it provides reliable support in emergency situations.

Clear instructions
Voice prompts guide the user through the entire procedure. Volume adjusted to the ambient noise.

Connectivity
Sigfox and Wi‑Fi transmission for alerts on the status of the device and accessories, as well as for geolocation.

Semi- or fully automatic
With the semi-automatic version, the user must press the shock button to deliver a shock. With the fully automatic version, the shock is delivered automatically when necessary.

Faster shock delivery
Switches on automatically as soon as the device lid is opened, with pre-connected electrodes and pre-charged for faster shock delivery.

Self-test
Daily automatic self-test ensures continuous readiness of the device and accessories.

CPR support
Metronome and real-time rate feedback for effective chest compressions.

GENERAL
Dimensions:
Without handle: 217 mm (wide) x 235 mm (deep) x 96 mm (high)
With handle: 217 mm (wide) x 285 mm (deep) x 96 mm (high)

Weight: Device with single-use electrodes and battery: less than 2 kg

AED DEFIBRILLATOR
Operating mode: Semi- or fully automatic
Waveform: Typically biphasic (BTE) depending on patient impedance
Energy output: 150–200 Joules for adult patients and 50–90 Joules for children
Charging time: 0 seconds – pre-charged
Electrode types: Pre-connected single-use electrodes for adults and children
Shockable rhythms: Ventricular fibrillation and ventricular tachycardia
CPR support: Metronome with real-time feedback on chest compression rate
CPR guidelines: Factory-set 2015 guideline (ERC/AHA) and its updated 2017 version

DATA STORAGE
Internal data memory: 10 treatment sessions of at least 15 hours of ECG signal and events
USB port: For PC connection
Data review: Reanibex Data Net web application for downloading, replaying, saving and reviewing recorded treatment sessions

BATTERY
Type: Single-use battery LiMnO2 4.2 Ah, 12 V
Capacity: More than 350 shocks at 200 J or more than 36 hours of monitoring at 25 °C

ENVIRONMENT
Operating temperature: 0 °C to 50 °C
Storage temperature: -25 °C to 70 °C
Humidity: 0 to 95%
Altitude: 0 to 5,000 m
Resistance to solids/liquids: IP55
EMC: EN 60601-1-11:2015 and EN 60601-1-2:2015
Vibration/shock: EN 60601-1-11:2015

This is a Ni-MH 12 V, 2600 mAh battery pack from BIONET for all FC1400 and Cardio devices.

Cardio 7: Only compatible with devices with a serial number up to T7xxxxxxx

Product data:

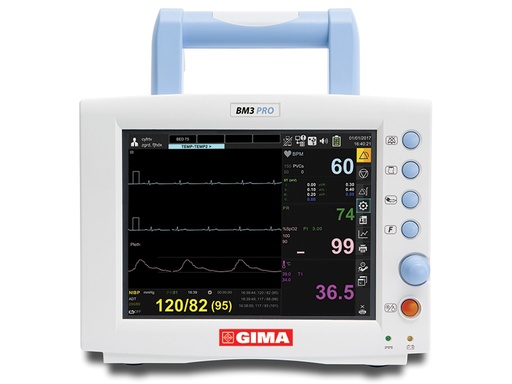

GIMA BM3 PRO Touch MONITOR (8” - 800x600 - TFT display)

GIMA monitor is configured with:
- 8-inch TFT LCD colour touchscreen for clear viewing
- Individual sweep speed setting for each parameter
- 168 full hours of trend data stored
- SpO2 measurement with detection of very low perfusion and pulse tone
- 2-trace ECG - screen freeze on/off
- External HDMI output for large screen
- Connection to the central monitoring system via LAN or Wi-Fi
- Li-ion battery (for 2 hours of continuous operation)
- High-performance ECG detection and analysis

• Input impedance for dry skin or electrode patches
• ST level, real-time display of PVC count
• 13 types of arrhythmia analysis
• Pacemaker detection function
- Enhanced and expandable multi-parameter monitoring
• Sidestream/mainstream EtCO2
- Improved data management
• Graphical and tabular trends
• 20 cases per 10 sec. alarm waveform stored, reviewed and printed
- USB storage
- B2B connection
• Up to 4 monitors (BM3/5/7) can be connected
- Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN
- User manual: GB, IT (on request: ES, FR, DE).

58 mm built-in printer for real-time and trend data (speeds: 25-50 mm/sec.)
Bed rail hook
Ergonomic handle
Pacemaker detection is displayed on the ECG screen
Battery status indicator - continuous operating time approx. 2 h

For all Bionet monitors: accessory kit included!
- 3-lead ECG cable for BM 3
- 5-lead ECG cable for BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- User manual
- Mains cable
- Battery

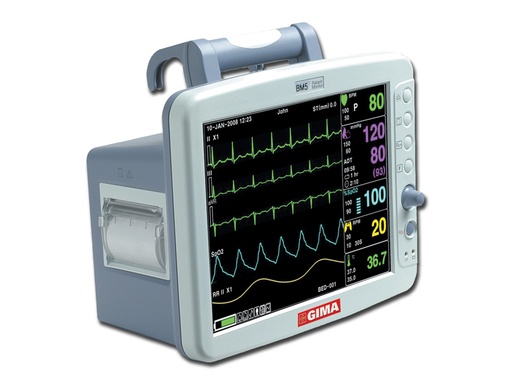

With 10.4" TFT colour display with 800 x 600 pixels, additional VGA connection for external monitor, IBP and CO2 measurement (optional)

With Suntech blood pressure module incl. printer.



- Measures NIBP, ECG, pulse rate, respiration, SpO2, temperature (optional), IBP (optional), CO2 with EtCO2 module (optional)
- Alarm function for all parameters
- Incl. built-in printer, printing parameters freely selectable
- With training mode
- Display of up to 7 waveforms
- Ideal transport monitor: weight only approx. 4.5 kg
- Incl. accessory set
- W 270 x H 184 x D 250 mm



For all Bionet monitors: accessory set included!

- 3-lead ECG cable with BM 3
- 5-lead ECG cable with BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- Operating instructions
- Mains cable
- Rechargeable battery

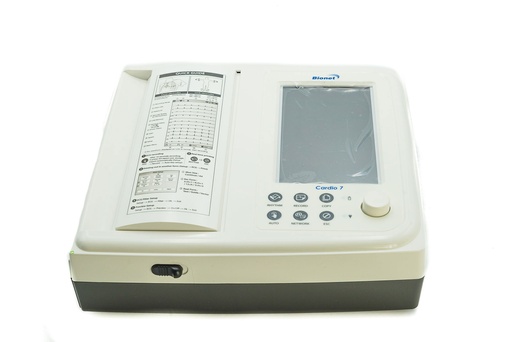

Product data:
- Large colour display for showing all 12 channels
- Easy operation via touchscreen
- Choice of 12-, 6- or 3-channel printout
- Automatic or manual ECG
- Integrated memory for up to 120 recordings
- Interpretation recommendation and measurement of all 12 channels
- Clear printout in DIN A4 format
- Battery optional
- Includes ECG accessory set
- Includes a free downloadable version of the ECG archive software for Cardio devices

Software details:
- For Cardio 7, initially only available in English
- Transfer of online ECG (monitoring) or a 10-second stored ECG from a Cardio 7 or Cardiocare 2000
- Changes to recording parameters without paper consumption
- System check of the patient leads on the PC
- Full-screen display during signal acquisition
- ECG data can alternatively be saved as JPEG or PDF
- Recommended operating system: Windows XP, Windows 7

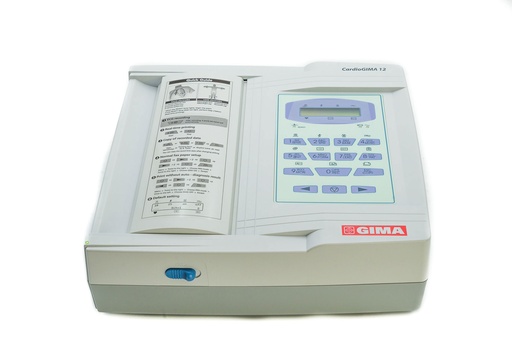

- Genuine 12-channel resting ECG: time savings compared with 3- and 6-channel ECG recorders
- Printout of all 12 channels one below the other or in groups (2x6, 3x4)
- Clear, high-quality printout
- Rhythm strip printout in 3- and 6-channel setting
- Manual ECG monitoring or 10-second memory ECG for interpretation
- Automatic interpretation recommendation
- Incl. ECG accessories set

Includes a free download version of the ECG archiving software for Cardio devices.

Using this software turns your Compact ECG into a PC-based ECG!

- Transfer of online ECG (monitoring) or a 10-second memory ECG from a Cardiocare 2000 or Cardio 7 to a medical PC
- Changes to recording parameters without paper consumption
- System check of the patient cables on the PC
- Full-screen display during signal acquisition
- Storage of ECG data alternatively as JPEG or PDF
- Recommended operating system: Windows XP, Windows 7
