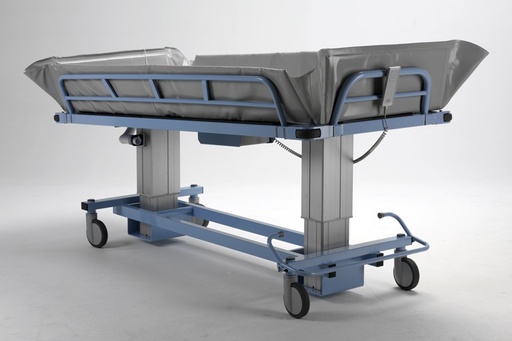

Heavy-duty mobile patient shower and transfer trolley, for transferring a resident/patient in a lying position from the care bed to the care area and back.
The TR 4000 electric shower trolley is specifically designed for high loads up to 450 kg. Thanks to its robust yet flexible design, the shower trolley can be used not only in many areas of care but also for transporting severely bariatric residents/patients.
The padded shower mattress is fully enclosed all around, ensuring safety at all times and comfortable transfers. The supplied neck cushion supports the resident/patient and increases comfort.
SAFETY CHASSIS with four swivel castors, Ø 150 mm, with a central foot pedal to lock the wheels or activate straight-line travel. Its well-thought-out design allows the shower trolley to be accessed underneath with a hoist, enabling safe lifting of the resident/patient in any situation.
TILT ADJUSTMENT via the shower trolley hand control. The lying surface can be tilted in both directions by approx. 5 degrees. When returning the surface to the level position, an audible signal sounds and the tilt adjustment stops in the horizontal position.
SIDE RAILS fold down. For easier handling, the side rails can be positioned in two settings: horizontal and vertical. This allows the resident/patient to be placed on the trolley at any time.
HEAD-END RAIL fold down. The rail at the head end of the shower trolley can also be folded down for easier operation and to assist with placing the resident/patient.
BUMPER ROLLERS on all four corners. The shower trolley is fitted with bumper rollers on all four corners, providing additional safety during transfers with the trolley.
Technical data:
Overall length (max.): trolley 2210 mm
Overall width: 1020 mm
Overall height: 1120 mm
Lifting range: 300 mm
Max. load capacity: 450 kg
Colour: light grey
