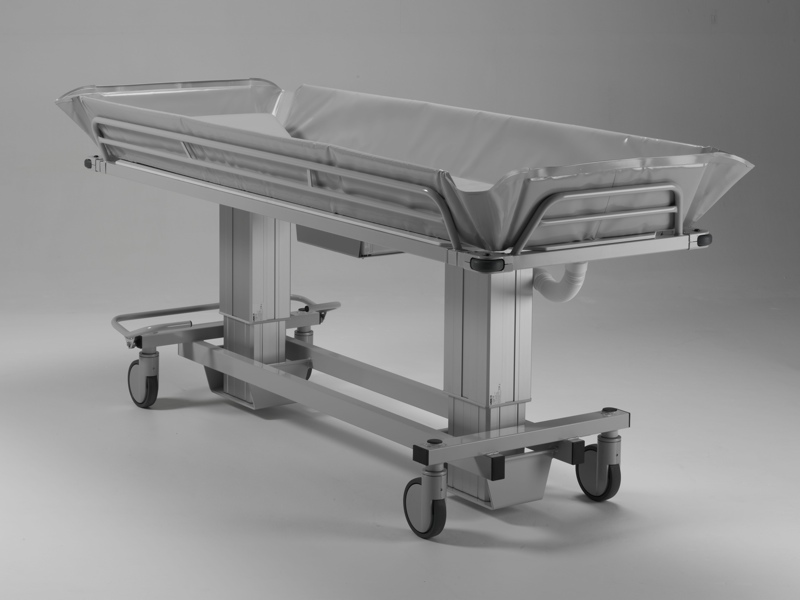

TRANSPOREHAMED Heavy Duty - Electric Shower trolley - Atlas Junior Type 4200

Heavy-duty mobile patient shower and transport trolley, for transferring a resident/patient in a lying position from the care bed to the care area and back.

The TR 4200 electric shower trolley is specially designed for heavy loads up to 270 kg. Thanks to its robust yet flexible design, the shower trolley can be used not only in many areas of care but also for transporting severely bariatric residents/patients.
The padded shower mattress is fully enclosed all around, providing safety at all times and comfortable transfer. The supplied neck cushion supports the resident/patient and increases comfort.

SAFETY CHASSIS with four swivel castors, Ø 150 mm, with a central foot pedal to lock the wheels or activate straight-line tracking. Its well thought-out design allows the shower trolley to be accessed from underneath with a hoist, ensuring safe lifting of the resident/patient in all situations.

TILT ADJUSTMENT via the shower trolley hand control. The stretcher platform can be tilted in both directions by approx. 5 degrees. When returning the lying surface to level, an audible signal sounds and the tilt adjustment stops in the horizontal position.

SIDE RAILS fold-down. For easier handling, the side rails can be folded into two positions: horizontal and vertical. This means the resident/patient can be transferred at any time.

BUMPER WHEELS at all four corners. The shower trolley is fitted with bumper wheels at all four corners, providing additional safety during transfers on the trolley.

Technical data:

Overall length max.: trolley 2150 mm
Overall width: 810 mm
Overall height: 1060 mm
Lifting range: 300 mm
Max. load capacity: 270 kg
Colour: light grey
