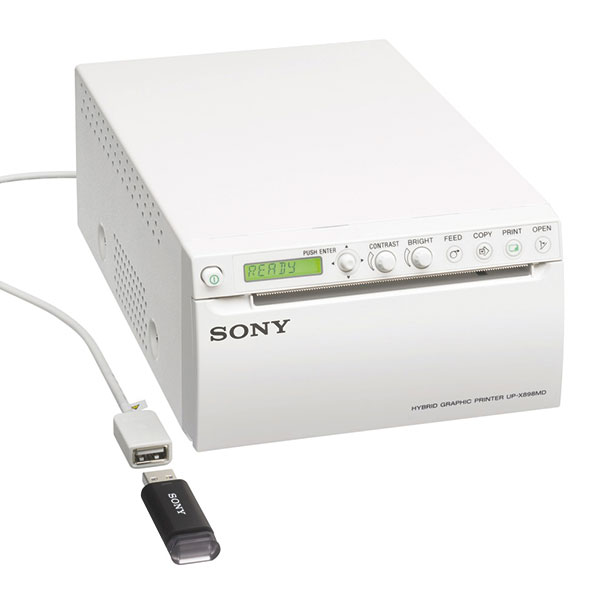

SONY A6 Thermal printer UP-X898MD

The UP-X898MD is a compact A6 black-and-white printer for medical applications that processes both analogue video signals and PC-friendly digital USB input signals. It is designed for integration with a wide range of compatible medical imaging systems, for example mobile C-arm, cardiac catheter laboratory and digital ultrasound systems. The high-quality thermal print mechanism can produce hard copies of still images from such systems for use in patient records and referrals. For even greater convenience, printed photos can also be saved to a connected USB flash drive.

(Please note that images printed by the UP-X898MD cannot be used for diagnosis).

The UP-X898MD is the successor to Sony’s popular UP-897 series of medical printers. The newly designed and updated version now offers numerous operational enhancements and improved ergonomics while retaining the compact design and easy integration into medical trolleys. Ease of use has been further improved with an enlarged LCD display and a joystick for intuitive menu navigation. The device is capable of producing high-quality black-and-white prints in under 2 seconds. The advanced thermal printing technology ensures near-photo quality while working with widely used print media. Printing method: direct thermal printing

Resolution: 325 dpi

Grey scale: 8-bit (256 levels)

Picture elements: Digital: 4,096 x 1,280 pixels

Video NTSC: 720 x 504 pixels

Video PAL: 720 x 604 pixels

Image area: Digital: 320 x 100 mm (max.)

STD video NTSC: 94 x 73 mm, video PAL: 94 x 71 mm (WIDE 1)

SIDE video NTSC: 124 x 96 mm, video PAL: 127 x 96 mm (WIDE 1)

Paper size: paper width 110 mm

Print speed: High-speed mode:

Approx. 1.9 seconds per image (at standard setting)

Normal-speed mode:

Approx. 3.3 seconds per image (at standard setting)

Image memory: Digital: 4,096 x 1,280 x 8 (bit)

Video: 10 image memories (850 k x 8 bit per full frame)

Interface: USB port (Type A) for USB sticks (1x)

Hi-Speed USB (USB 2.0) (1x)

VIDEO INPUT: BNC type (1x)

NTSC or PAL composite video signals

1.0 Vs-s, 75 ohm (NTSC/PAL automatically detected)

VIDEO OUTPUT: BNC type (1x), loop-through

REMOTE: stereo mini-jack (1x)

Printer driver software: Microsoft Windows XP 32/64, Vista 32/64, 7 32/64, 8 32/64

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.3 to 0.6 A

Operating temperature:

5 °C to 40 °C

Operating humidity: 20% to 80% (non-condensing)

Storage and transport temperature: -20 °C to +60 °C

Storage and transport humidity: 20% to 80% (non-condensing)

Dimensions (W x H x D): 154 x 88 x 240 mm

Weight: 2.5 kg

Safety regulations: (US/CA) ANSI/AAMI ES60601-1, UL 60601-1, UL 60950-1,

CAN/CSA-C22.2 No. 60601-1, CAN/CSA C22.2 No. 601.1, CAN/CSA C22.2 No. 60950-1

(EU) EN 60601-1, EN 60950-1 (CB) IEC 60601-1 (2nd/3rd Ed.), IEC 60950-1

EMC standards: (US/CA) FCC Part 15 Subpart B Class A digital device, ICES-003 Class A

digital device (EU) EN 60601-1-2 (Class B), EN 55022 (Class B) + EN 55024,

EN 61000-3-2 and EN 61000-3-3 (AU) AS/NZS CISPR22 (EN55022) Class B (JP) VCCI

Class A, JIS C 61000-3-2 (KR) KN22, KN24 Class B

EU directive: (EU) MDD, EMC, LVD

Supplied accessories: Thermal head cleaning sheet (1), CD-ROM (1), notes on

using the printer (1), service contact list (1), USB flash memory

without cable cable, print media (UPP-110HG)
