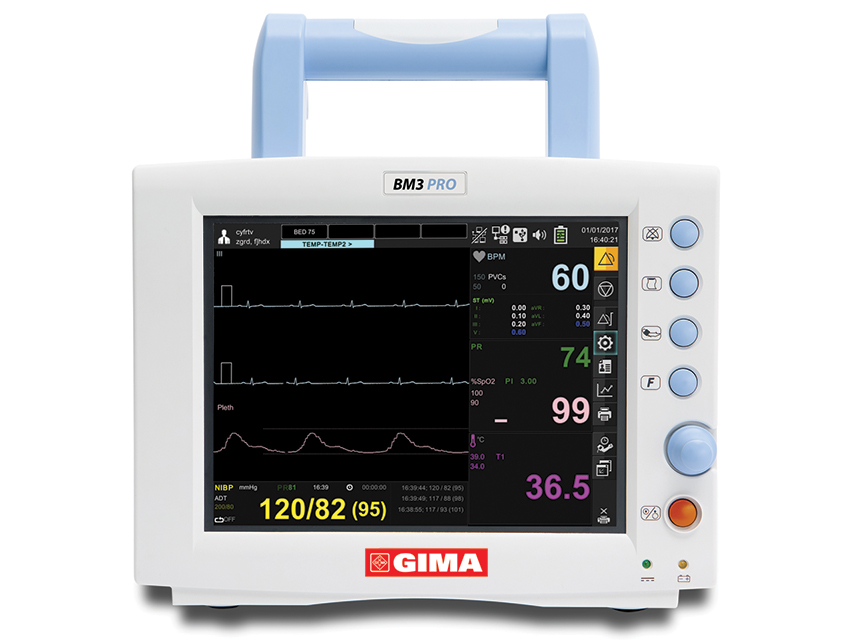

BIONET BM 3 PRO - Multi-parameter monitor with Touch Screen

Product data:
GIMA BM3 PRO Touch MONITOR (8” - 800x600 - TFT display)

GIMA monitor is configured with:
- 8-inch TFT LCD colour touchscreen for clear viewing
- Individual sweep speed setting for each parameter
- 168 full hours of trend data stored
- SpO2 measurement with detection of very low perfusion and pulse tone
- 2-trace ECG - screen freeze on/off
- external HDMI output for large screen
- connection to the central monitoring system via LAN or Wi-Fi
- Li-ion battery (for 2 hours continuous operation)
- high-performance ECG detection and analysis

• Input impedance for dry skin or adhesive electrodes
• ST level, real-time display of PVC count
• 13 types of arrhythmia analysis
• Pacemaker detection function
- Enhanced and expandable multi-parameter monitoring
• Sidestream/mainstream EtCO2
- Improved data management
• graphical and tabular trends
• 20 cases per 10 sec. alarm waveform stored, reviewed and printed
- USB storage
- B2B connection
• up to 4 monitors (BM3/5/7) can be connected
- Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN
- User manual: GB, IT (on request: ES, FR, DE).

58 mm built-in printer for real-time and trend data (speeds: 25-50 mm/sec.)
Bed rail hook
Ergonomic handle
Pacemaker detection is displayed on the ECG screen
Battery status indicator - continuous operating time approx. 2 h

For all Bionet monitors: accessory set included!
- 3-lead ECG cable with BM 3
- 5-lead ECG cable with BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- User manual
- Mains cable
- Battery
