AKS

For users with low body weight or limited mobility

As these individuals require a seat surface with low compression firmness, this wheelchair seat cushion uses a combination of suitable foam cubes and a base tray made of firm foam. The tray provides the necessary support when sitting. Two recesses at the front guide the thighs. With aks-inkoair® seat cushion cover.
User weight 40–90 kg Dimensions 42 x 42 x 10 cm Pressure ulcer grade: prophylaxis

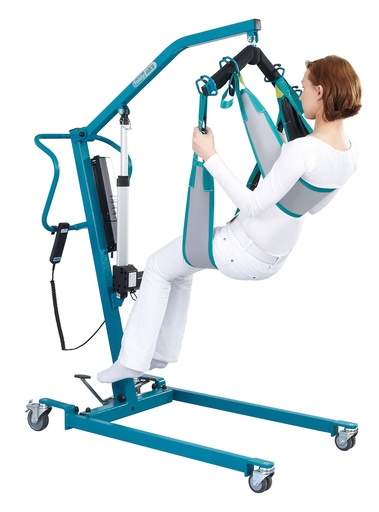

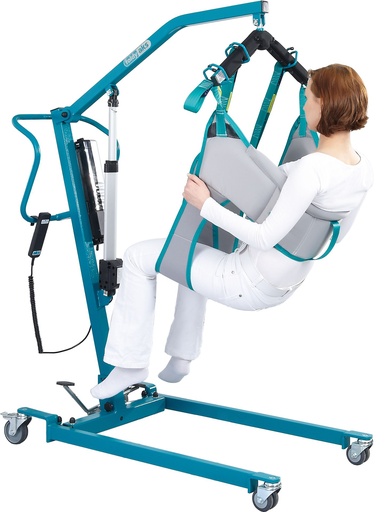

This sling is ideally suited for the quick and straightforward transfer of persons. It features an integrated, padded back reinforcement and a chest loop that gives the patient a sense of security. With this configuration, the sling can also be used as a hygiene sling. The patient must have sufficient postural stability.

Technical data

Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding: back section: 100% polyether;
Axillary padding: 100% polyester foam;
Leg supports/chest loop: 100% PE foam

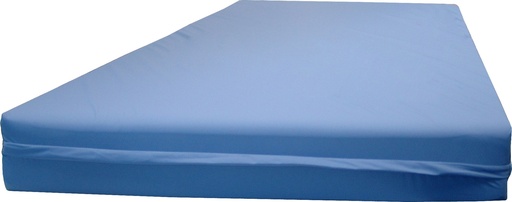

Replacement cover for HD85 series special mattresses made of aks-inkoair

Replacement cover for item 17608-01

Dimensions (H x W x L in cm): 13 x 90 x 200 cm
Weight: 4.9 kg

Replacement mattress for item 17368-01

Dimensions (H x W x L in cm): 13 x 90 x 200 cm
Weight: 4.9 kg

Replacement mattress for item 17366-01

Dimensions (H x W x L in cm): 17 x 90 x 200 cm
Weight: 8.3 kg

Replacement mattress for item 17369-01

Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg
Power: 12 W

Replacement unit for item 17366-01

Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg
Power: 12 W

Replacement unit for item 17368-01

Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg
Power: 12 W

Replacement unit for item 17367-01

Dimensions (W x H x D in cm): 28 x 20.5 x 10 cm
Weight: 2.6 kg
Power: 12 W

Replacement unit for item 17369-01

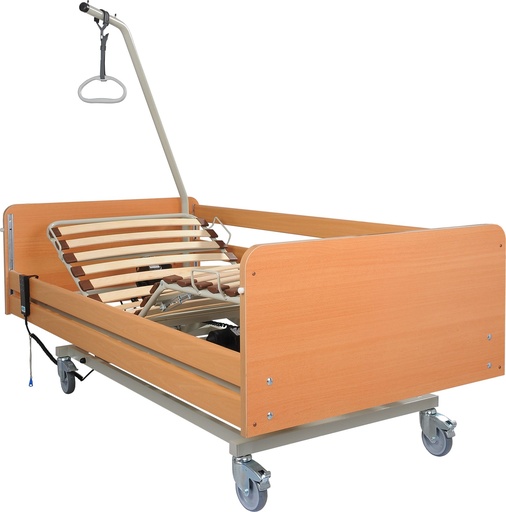

Advantages of the aks-S4 scissor lift bed
• High functionality: individual positioning, four-section lying surface with electrically adjustable height, head and foot sections; foot section with knee break can be electrically adjusted from any position via hand control without nursing assistance – patent-protected!
• Protection against falling out thanks to sturdy, integrated side rails on both sides
• Stable stance of the compact scissor lift with four lockable castors
• Lying surface optionally with wooden sprung slats or metal mesh base
• SMPS 29 V: the switch-mode power supply provides safety with overload protection and voltage stability with variable input voltage
• Ergonomic hand control with large buttons, integrated lock function and the option to test initial fault safety
• Including lifting pole and grab handle

Options and accessories
• Side rail extension, e.g. for use with large-cell mattresses
• Bed extension for care of taller patients
• Side rail padding

Product data:

Lying surface (L x W in cm): 90 x 200
Overall dimensions (L x W in cm): 108 x 206

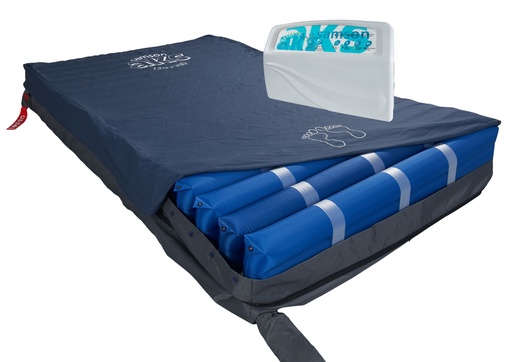

aks-samson offers professional care for obese people at risk of pressure ulcers. The special design and arrangement of the 20 dual air cells with a cell height of 25 cm provide significant pressure relief, thereby increasing the comfort of heavyweight users during pressure ulcer therapy. The nursing function and static mode complete the list of product benefits.

The benefits of aks-samson
• Switch button from static to alternating pressure mode
• 8-step pressure setting according to the patient’s weight
• Cycle time adjustable to 10, 15, 20 or 25 minutes
• Visual and audible alarm in the event of pressure loss, power failure and system fault
• Reset button for the audible alarm in the event of low pressure and system fault
• Time-limited nursing function with automatic return to the previously set operating mode and pressure
• Button to activate/deactivate the sitting function
• Automatically activating keypad lock
• Easy filter replacement
20 dual air cells made of nylon with TPU lamination, three static head cells, 17 alternating-pressure cells in the upper section, complete lower section static
• All cells individually replaceable
• Cell height approx. 25 cm
• Mattress cover made of polyester fabric with PU coating, flame-retardant, tested in accordance with BS7175 sec 3 crib 5, waterproof, secured to the mattress with an all-round zip
• CPR valve for rapid mattress deflation
• Straps on the underside of the mattress for fastening to the lying surface
• Secure click-in connection of the hoses to the pump unit
• All widths 90, 100, 120, 140 cm also available in 200 and 220 cm length

Patient weight 40–300 kg
Pressure ulcer grade up to and including Grade IV (according to EPUAP)

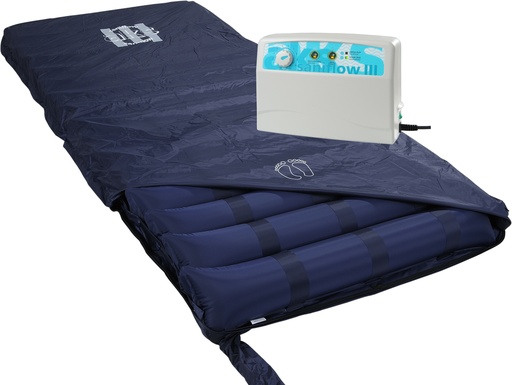

Large-cell alternating pressure anti-decubitus system in the mid-range standard class with static function

This improved version allows people weighing up to 130 kg and with pressure ulcer grade up to and including grade III (according to EPUAP) to benefit from a mid-range standard class alternating pressure system.

The advantages of the aks-saniflow® III
• mattress overlay system
• with static function and therefore suitable for pain patients
• easy to use: infinitely variable pressure setting according to the patient’s weight, easy filter replacement
• visual indicator when the desired pressure is reached
• visual and audible alarm in case of pressure loss (e.g. leakage)
• switch to reset the audible alarm
• highly elastic foam strip on the back and soft feet for noise decoupling
• cycle time 12 minutes
• alternating two-chamber system for intermittent pressure relief
• 17 cells, individually replaceable
• cell height 13 cm
• nylon/PVC mattress cover secured to the mattress with an all-round zip, waterproof
• with diagonal elastic straps on the underside of the mattress for securing to the foam mattress base
• quick deflation of the mattress via end plug with pull ring
• secure click-in connection of the hoses to the pump unit

Patient weight 40–130 kg
Pressure ulcer grade up to and including grade III
(according to EPUAP)

Product data:

Mattress overlay:
Dimensions – 13 x 90 x 200 cm
Weight – 4.9 kg
Cells/honeycombs 17

Pump unit:
Dimensions – 28 x 20.5 x 10 cm
Weight – 2.3 kg

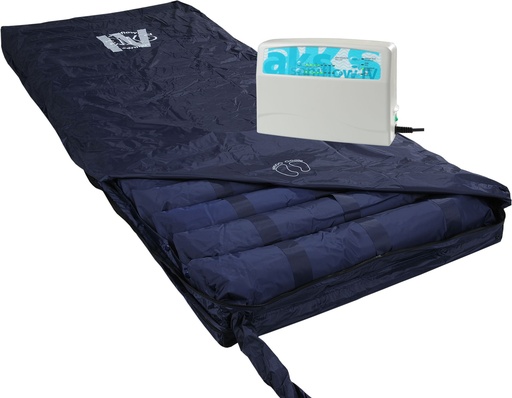

Large-cell alternating-pressure anti-decubitus system in the upper standard class with static and nursing function

As a mattress replacement system with a comprehensive range of functions, aks-saniflow® IV meets the high requirements of the upper standard segment. Patients with pressure ulcers up to and including Grade IV according to EPUAP receive the best standard care for pressure ulcer therapy.

The advantages of aks-saniflow® IV
• Mattress replacement system
• Nursing function enables a fully inflated, static support surface with a time limit of 30 minutes and an automatic change back to the previously set operating mode (alternating pressure or static) and the selected pressure level
• 8-stage pressure setting according to patient weight
• Visual indication when the desired pressure is reached
• Visual and audible alarm in the event of pressure loss (e.g. leakage)
• Switch to reset the audible alarm
• Cycle time adjustable from 10–25 min
• Mattress replacement system with removable foam underlay (4 cm)
• Alternating two-chamber system for intermittent pressure relief
• 17 cells, individually replaceable
• Cell height 13 cm
• Nylon/PVC mattress cover secured to the mattress with an all-round zip, waterproof
• With diagonal elastic straps at the underside of the mattress for securing to the lying surface
• Rapid deflation of the mattress via end plug with pull ring
• Secure snap-in connection of the hoses to the pump unit

Patient weight 40–130 kg
Pressure ulcer grade up to and including Grade IV
(according to EPUAP)

Product data:

Mattress overlay:
Dimensions - 17 x 90 x 200 cm
Weight - 8.3 kg
Cells/honeycomb 17

Pump unit:
Dimensions - 28 x 20.5 x 10 cm
Weight - 2.6 kg+

Foam mattress for the aks-SB L nursing bed series

Version RG35, RP 3555, compression hardness 5.5, height 12 cm, up to 130 kg

Foam mattress ideally suited for item 17591 aks-SB L nursing bed

Please make sure when placing your order to select whether you require an assembly service for the bed or not (variant selection – with or without assembly):

If you order the bed with assembly service, an installation appointment must be arranged via our customer support. Due to capacity constraints, a prompt assembly date immediately after delivery cannot always be guaranteed, so please allow for possible waiting time between delivery and assembly.

Please also note that the manufacturer delivers the bed “kerbside” only – as a rule, it is not delivered to the place of installation. By the agreed assembly date, it must be ensured that the bed to be assembled is already at its final location and that the rooms are suitably prepared for installation in terms of space and cleanliness.

Product description:

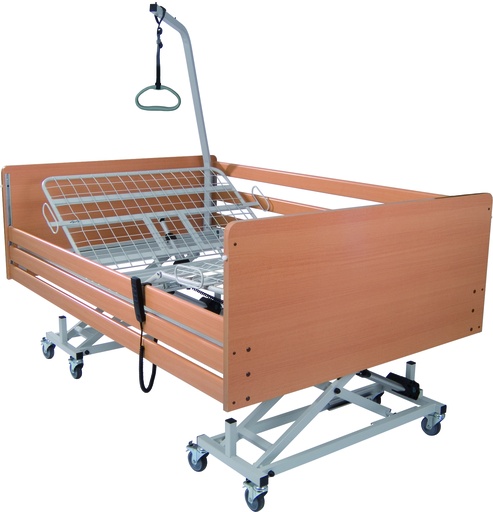

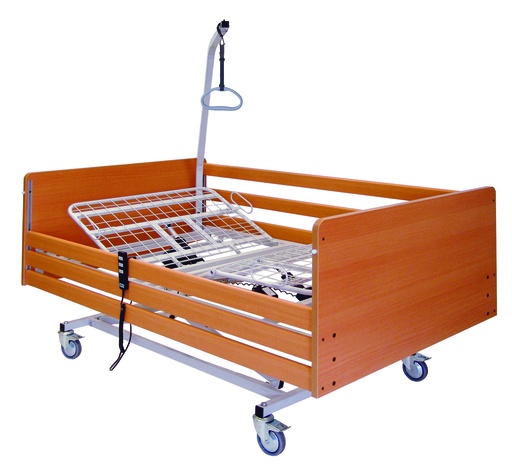

aks developed the SB L to XXL bed series for heavy and tall patients. The SB L model is intended for people weighing up to 150 kg who, due to their anatomy, cannot be adequately cared for with standard beds.

The SB XL can be used for care-dependent persons with a body weight of up to 200 kg and features higher end panels and three side rail bars. SB XXL completes the heavy-duty range. With its particularly stable double scissor mechanism, the heavy-duty bed easily achieves the outstanding performance of supporting patient weights of up to 300 kg.

Advantages of the SB L to SB XXL nursing beds
• increased lying comfort thanks to four-section lying surfaces; height and backrest electrically adjustable
• maximum functionality and safety: the foot section with knee break can be electrically adjusted from the bed via handset without nursing assistance – patent-protected!
• protection against falling out: integrated wooden side rails on both sides; SB XL and XXL with three bars and particularly high head and foot sections
• stable construction with powerful single scissor mechanism (aks-SB L and XL) and 125 mm castor diameter
• high stability for heavy-weight care thanks to specially developed double scissor mechanism with 8 castors, 100 mm diameter on aks-XXL
• a variety of different versions in terms of size and max. patient weight
• mains isolation: this safety system electrically disconnects the bed from the mains on all poles when the handset is not in use
• handset with large buttons, locking function, and initial fault safety test possible
• including patient lifting pole and grab handle
• special colour RAL 7035, light grey

Foam mattress for the aks-SB XL nursing bed series

Version RG40, RL 4045 compression hardness 4.5, height 15 cm, up to 200 kg

Foam mattress for example for item 17592-01

Please make sure when placing your order to select whether you require an assembly service for the bed or not (variant selection – with or without assembly):

If you order the bed with assembly service, an installation appointment must be arranged via our customer support. Due to capacity constraints, a prompt installation appointment after delivery cannot always be guaranteed, so please allow for possible waiting time between delivery and assembly.

Please also note that the bed is delivered by the manufacturer “kerbside only” (to the pavement). As a rule, it will not be delivered to the place of installation. By the agreed installation date, it must be ensured that the bed to be assembled is already at its final installation location and that the premises have been prepared accordingly for installation in terms of space and cleanliness.

Product description:

aks developed the SB L to XXL bed series for heavy and tall patients. The SB L model is intended for people up to 150 kg body weight who, due to their anatomy, cannot be cared for with standard beds.
The SB XL can be used for people in need of care up to a body weight of 200 kg and features higher end panels and three side rail bars. SB XXL completes the heavy-duty range. Thanks to the particularly robust double scissor lift, the heavy-duty bed easily achieves the top performance of up to 300 kg patient weight.

Advantages of the SB L to SB XXL nursing beds
•increased lying comfort thanks to four-section mattress platforms, with height and backrest electrically adjustable
•maximum functionality and safety: leg section with knee break electrically adjustable from the bed via handset without caregiver assistance – patent-protected!
•protection against falling out: integrated wooden side rails on both sides; SB XL and XXL with three bars and particularly high head and foot sections
•stable construction with powerful single scissor lift (aks-SB L and XL) and 125 mm castor diameter
•high stability for heavyweight care requirements thanks to a specially developed double scissor lift with 8 castors, 100 mm diameter on aks-XXL
•a variety of different versions in size and maximum patient weight
•mains isolation: this safety system disconnects the bed from the power supply on all poles when the handset is not being operated
•handset with large buttons, lock function, and option to test initial fault safety
•including bed pole and grab handle
•special colour RAL 7035, light grey
