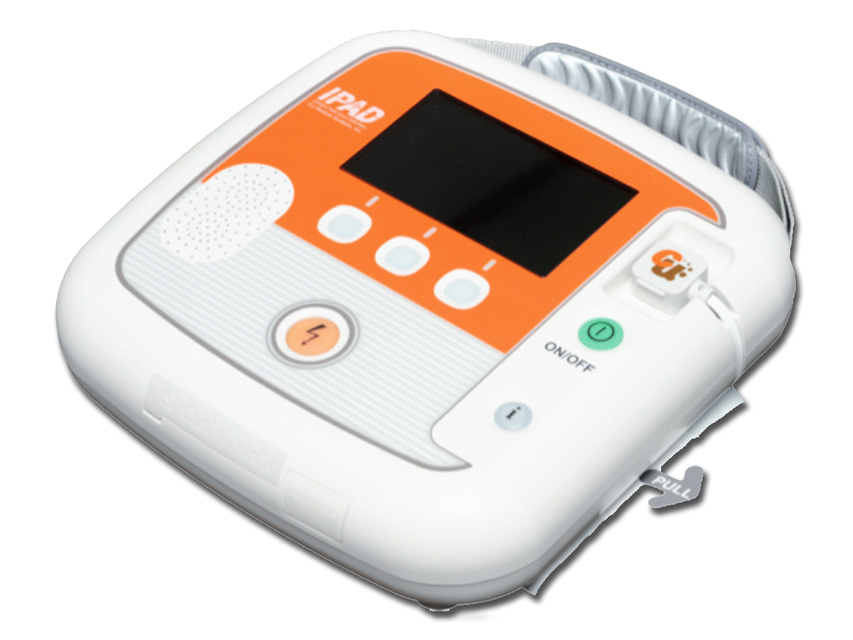

CU-MEDICAL iPAD CU-SP2 AED "Everyone" with monitor and ECG module, semi-automatic

CU-SP2 is the latest generation of intelligent public access defibrillators with innovative features:

Automatic volume adjustment
It detects ambient noise and automatically adjusts the volume of the voice prompts so they can be heard over background noise.

Smart Pads – intelligent storage
The pre-connected “Smart” electrode pads are stored in an easily accessible compartment on the underside of the device, ensuring the fastest possible deployment. In addition, the front visual indicator shows whether the connected pads are still within their expiry date. The indicator changes when the pads have only 3 months remaining before expiry, giving you time to arrange replacements. It changes again when the expiry date is reached.

CPR detection
CPR is crucial to ensure the victim has the best chance of survival. iPAD CU-SP2 detects whether resuscitation is being performed and provides appropriate prompts; otherwise, it prompts the responder to perform it.

Easy communication with the CU-EX1 software
It allows you to view and analyse information such as power-on time, the victim’s heart rhythm and the shocks delivered. The iPAD CUSP2 stores 3 events in internal memory (up to 17 hours per event).

16 languages available (to be specified when ordering)
Selectable software languages: USA, GB, FR, IT, ES, DE, PT, NL, SE, PL, DK, NO, CZ, GR, AE, KR, IL. Supplied with SAVE PADS for adults, carry bag, lithium disposable battery, paper manual (GB, IT) and CD manual in the above languages, except PL and GR.

Defibrillator
• Operating mode: Semi-automatic
• Waveform: E-cube biphasic (truncated exponential type)
• Energy: Fixed 150 J
- Adult: nominal 150 J at 50 ohm load
- Infant / child: nominal 50 J at 50 ohm
• Charge control: Controlled by an automated patient analysis system
• Charging time: within 10 seconds from the voice prompt “a shock is advised”
• Sealing:
- protected against water jets IPX5 in accordance with IEC60529 (IP55)
- dust-protected IP5X in accordance with IEC60529

User interface
• User support: Detailed voice prompts and flashing indicators
• CPR guidance: Voice instructions for performing CPR for adults and children
• Controls: On/Off button, “i” button, shock button
• Display: LCD display (device status, battery status, pad status)
• Sensing: Pad expiry date, pad connection status

CPR monitoring
• Automatic volume adjustment

Data recording and transmission
• IrDA port: Wireless transfer of event data to PC, to SD card
• Internal memory (NAND flash): ECG, event
• Memory capacity: Multiple recordings of 5 events / max. 3 hours
• Data review PC programme: CU-EX1

Patient analysis system
• Patient analysis: Shockable rhythms – ventricular fibrillation, tachycardia
• Sensitivity / specificity complies with the AAMI DF80 guideline

High-capacity rechargeable battery
• Type: DC 11.1 Volt 1.9 Ah, rechargeable Li-ion
• Capacity: At least 60 shocks or 3 operating hours
