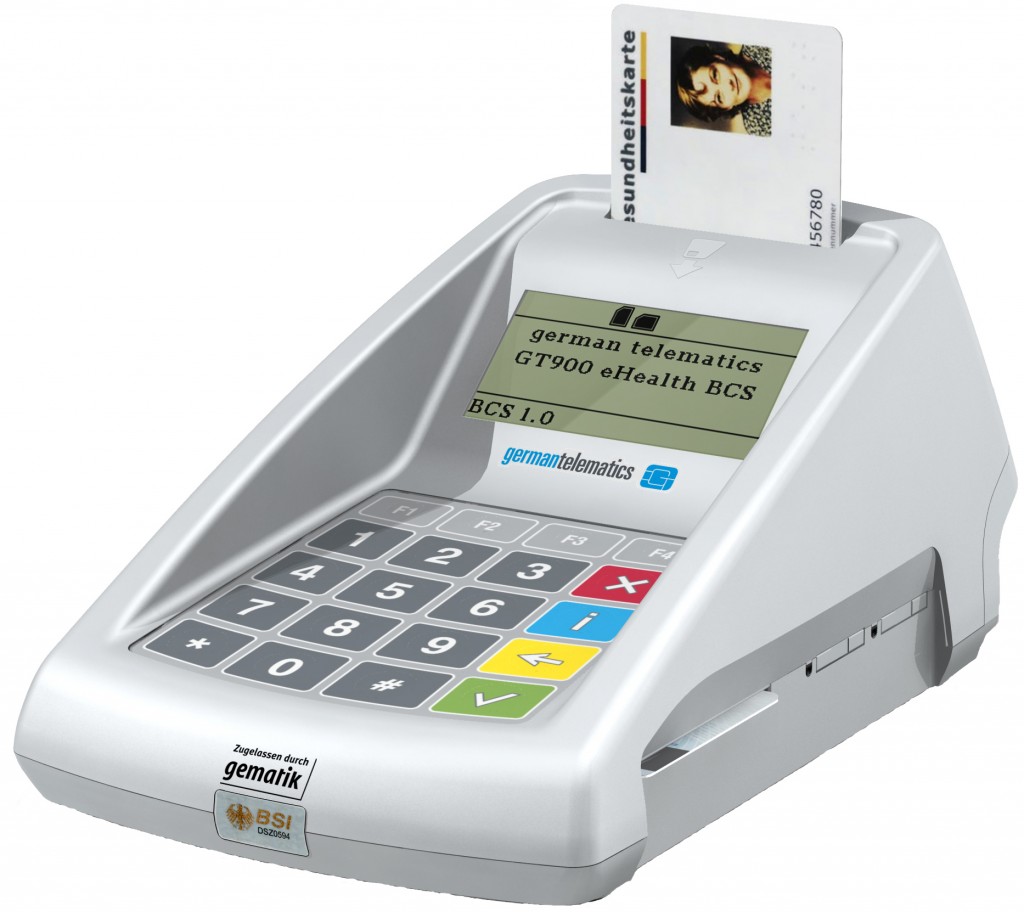

GERMAN TELEMATICS eHealth Terminal GT900 BCS USB

Only approved eHealth terminal manufacturer
with disinfectable membrane keypad

- very large, full-graphic display
with backlighting for
optimal readability
- one-handed eGK/KVK slot operation
- ergonomic viewing angle of
the display to prevent
reflections from ceiling lighting
on the display window
- one-handed HBA slot operation,
plus two SMC card slots
- one of the most compact eHealth terminals
on the market, design available in three variants
(white, black or silver)
- Easy-Clean: no gaps or
surfaces for dust or crumbs to collect on
the device keypad
- elegant privacy shield
and security during
PIN entry
- USB, network and serial
interface on-board
disinfectable membrane keypad to
prevent transmission of pathogens via
skin contact
- Meets all hygiene requirements of
the Occupational Safety and Health Act

Technical data

CPU / Processor
32-bit high-performance RISC / 200 MIPS

Operating system
GT Linux 2.6 X

Memory
32 MB SDRAM 8 MB Flash

Interfaces
USB, LAN, serial; 1 x full-speed host, USB 2.0 compatible; 1 x full-speed client, USB
2.0 compatible; RJ45 10/100 Mbit/s autonegotiation, auto MDI/MDIX; RS 232 (9-pin)

Chip cards
eGK, HBA, SMC, SM-KT, KVK, ISO 7816 Class A, B and C cards (5V, 3V, 1.8V)
Support for protocols S=8, S=9, S=10, T=1

Contact units
1 chip card contact unit (ISO 7816 ID-1) with lowering, card-protecting
contacts (eGK and KVK) >200,000 insertion cycles (ID-1 contact unit) 1 chip card
contact unit ISO 7816 ID-1 (HBA) 2 contact units (ISO 7816 ID-000) for SMC-A,
SMC-B and SM-KT, automatic card detection with short-circuit and overheating protection

User interface
Large graphical display with backlighting for user guidance
- High-contrast graphic display (monochrome, white backlit)
- 128 x 64 pixel pictograms for status display and the status message “secure state”
- 20-key input field for secure PIN entry and navigation
- PIN entry field with privacy protection
- Easy-care materials meet high hygienic and clinical requirements
- Only eHealth card terminal on the market with a membrane keypad
- Easy to disinfect, as there are no gaps
- Meets all hygiene requirements

Certifications and approvals
Common Criteria EAL3+ certification and confirmation in accordance with SigG by the Federal Office for Information Security
(Bundesamt für Sicherheit in der Informationstechnik), SICCT (in preparation) eHealth-BCS certification by gematik, CE,
TÜV IT, MKT+, chip cards (EMV Level 1/ISO7816)

Security
BSI seal for quick visual inspection; drill-through protection in the housing; cryptographically secure
firmware update possible for level SICCT(eHealth)

Dimensions and weight
190 x 110 x 90 mm, 670 g without power supply unit

Colour White, black or silver

Power supply
Plug-in power supply: input: 100–240 VAC / 50–60 Hz / 5 VDC / 1 A

Card reader 2 chip card readers for eGK, KVK and HBA 2 SMC slots

Signature Prepared for comfort and batch signature

Environmental conditions
Operation: 0° to +50°C; storage: -20° to +60°C; relative humidity: 5% to 95% (non-condensing)

Operating systems Windows® 98SE, ME, NT, 2000, Server 2003, XP, Vista, MacOSX (in preparation), Linux, Solaris (in preparation)

Compatibility KVK terminal; MKT/MKT+ terminal; eHealth-BCS terminal; SICCT terminal on the connector (after firmware update)

Country of manufacture
Federal Republic of Germany

Environmental guidelines
RoHS, WEEE
